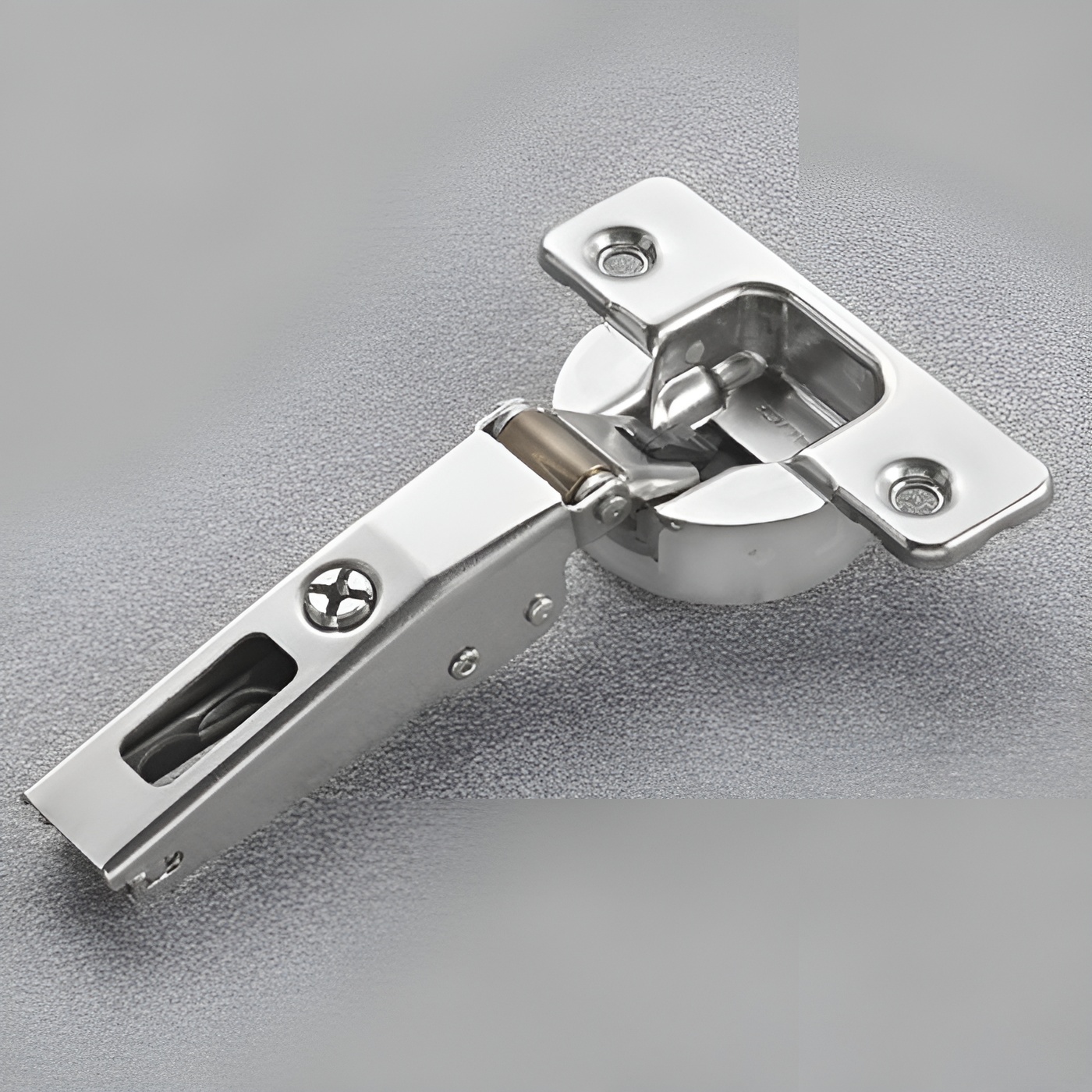

Richelieu H105C1R6DE9 Series 100 Concealed Hinges 105 offer a sophisticated solution for frameless cabinetry, ensuring seamless integration and a polished look. Designed specifically for a 1/2 inch (12.7 mm) overlay, these hinges feature a soft-closing mechanism, allowing doors to close gently and quietly, enhancing the overall user experience. Crafted in a sleek nickel finish, the H105C1R6DE9 hinges are not only functional but also add a touch of elegance to any cabinetry project. With a hinge opening angle of +105°, they provide ample access while maintaining a clean aesthetic. The hinges support a load capacity of up to 10 lbs, making them suitable for standard doors in various applications. Installation is straightforward, thanks to the dowel fixing type and precise drilling distance options ranging from 1/8 to 1/4 inches. The milling depth of 15/32 inches paired with a milling diameter of 1 3/8 inches ensures compatibility with a wide range of cabinet styles. With an easy shipping option via UPS and stock availability, Richelieu's H105C1R6DE9 hinges are a reliable choice for building professionals and discerning homeowners alike, delivering both performance and style in one comprehensive solution.
Series 100 Concealed Hinges 105
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Soft-Closing

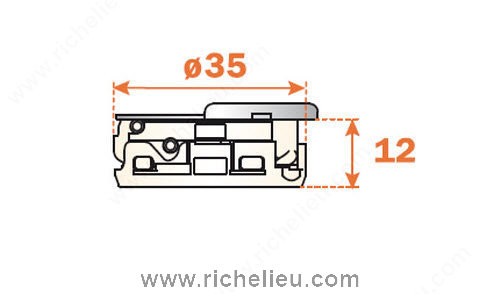

Milling Depth: 12 mm
Milling Diameter: 35 mm
Overlay: 0.5 in
Product #: H105C1R6DE9
Product number: H105C1R6DE9
Product №: H105C1R6DE9
Production Time: Stock
Silentia+ Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door
