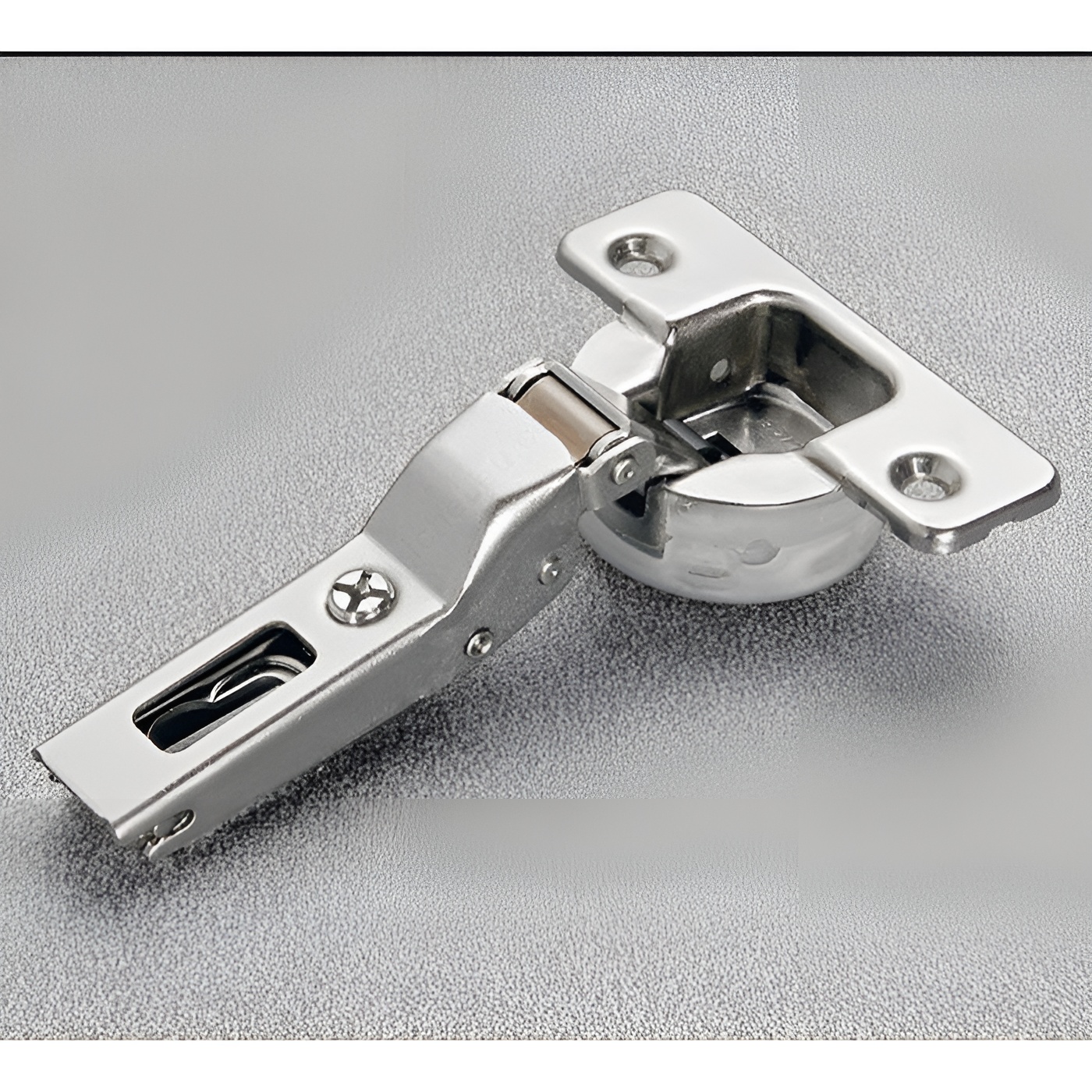

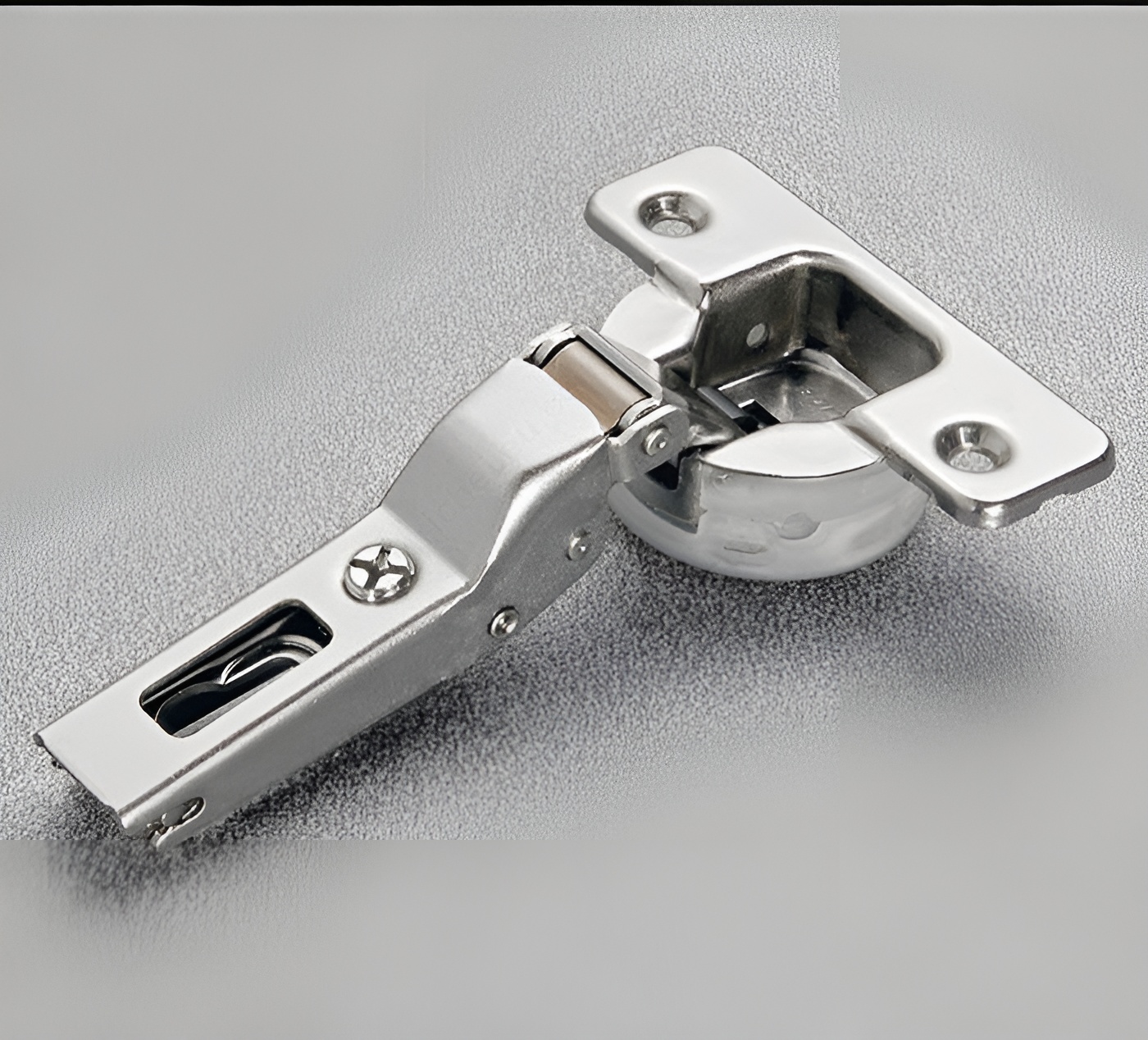

Richelieu H105C1R6GD6 Series 100 Concealed Hinges 105 offer a seamless solution for frameless cabinets with a half overlay door position. Crafted with precision, these hinges are designed to accommodate a drilling distance of 1/8 to 1/4 inches, ensuring a perfect fit for your cabinetry needs. The soft-closing mechanism provides a gentle and quiet closure, enhancing user experience while maintaining the integrity of the cabinetry. Constructed with a sleek titanium finish, these hinges not only deliver functionality but also add a touch of modern elegance to your design. With a hinge opening angle of +105°, they provide ample access to cabinet interiors, making it easy to reach items stored within. Each hinge boasts a load capacity of 10 lbs, making them suitable for standard doors. The milling depth of 15/32 inches and diameter of 1 3/8 inches ensure a robust installation, while the dowel fixing type provides stability and durability. Ideal for building professionals and discerning homeowners, the Richelieu H105C1R6GD6 hinges are stocked for quick availability and can be shipped via UPS. Enhance your cabinetry with these reliable and aesthetically pleasing concealed hinges.
100 Series - Silentia+ Concealed Hinges 105
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Titanium
Fixing Type: Dowel
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Soft-Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Overlay: 0.375 in
Product #: H105C1R6GD6
Product number: H105C1R6GD6
Product №: H105C1R6GD6
Production Time: Stock
Silentia+ Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door
