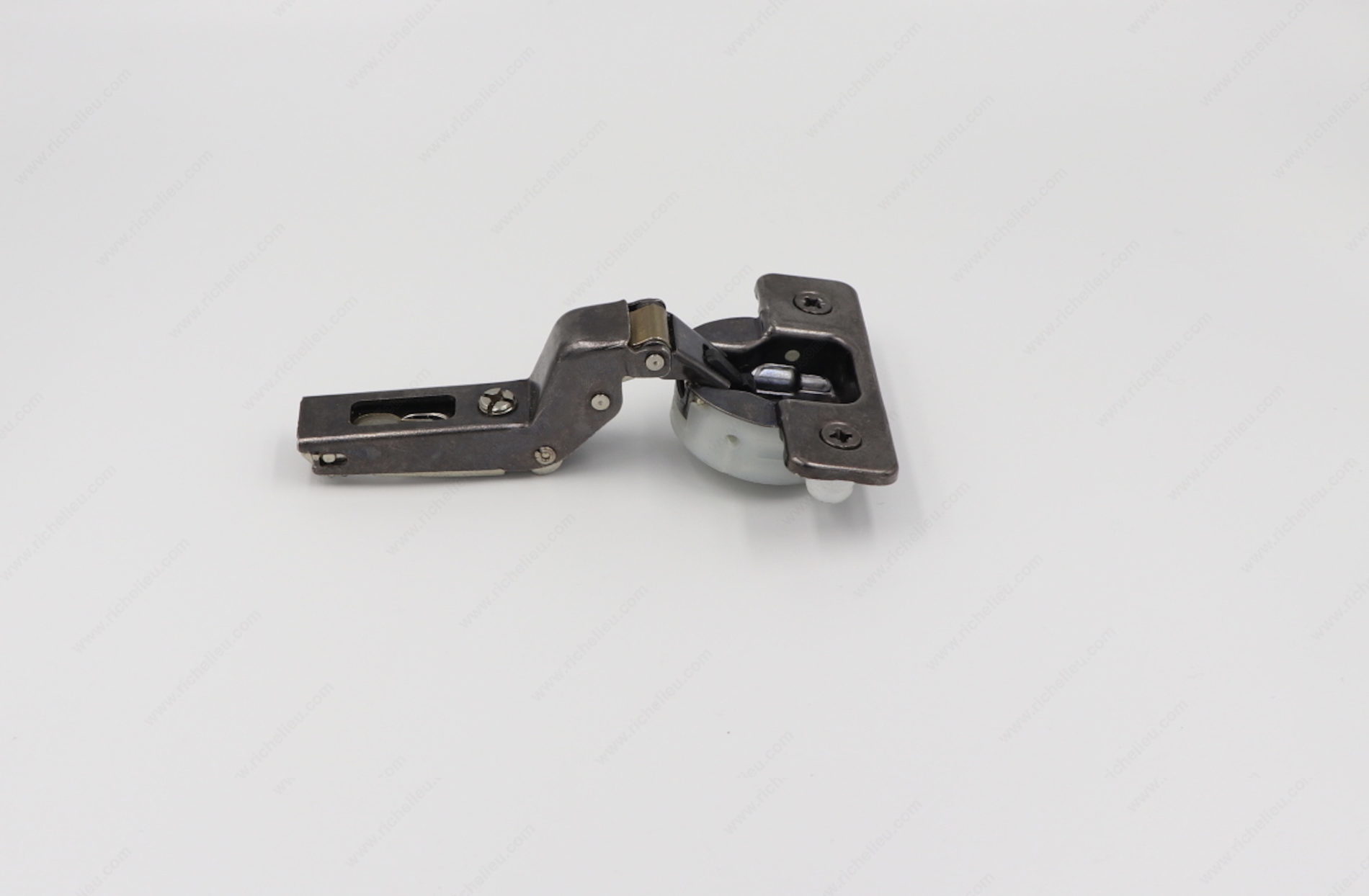

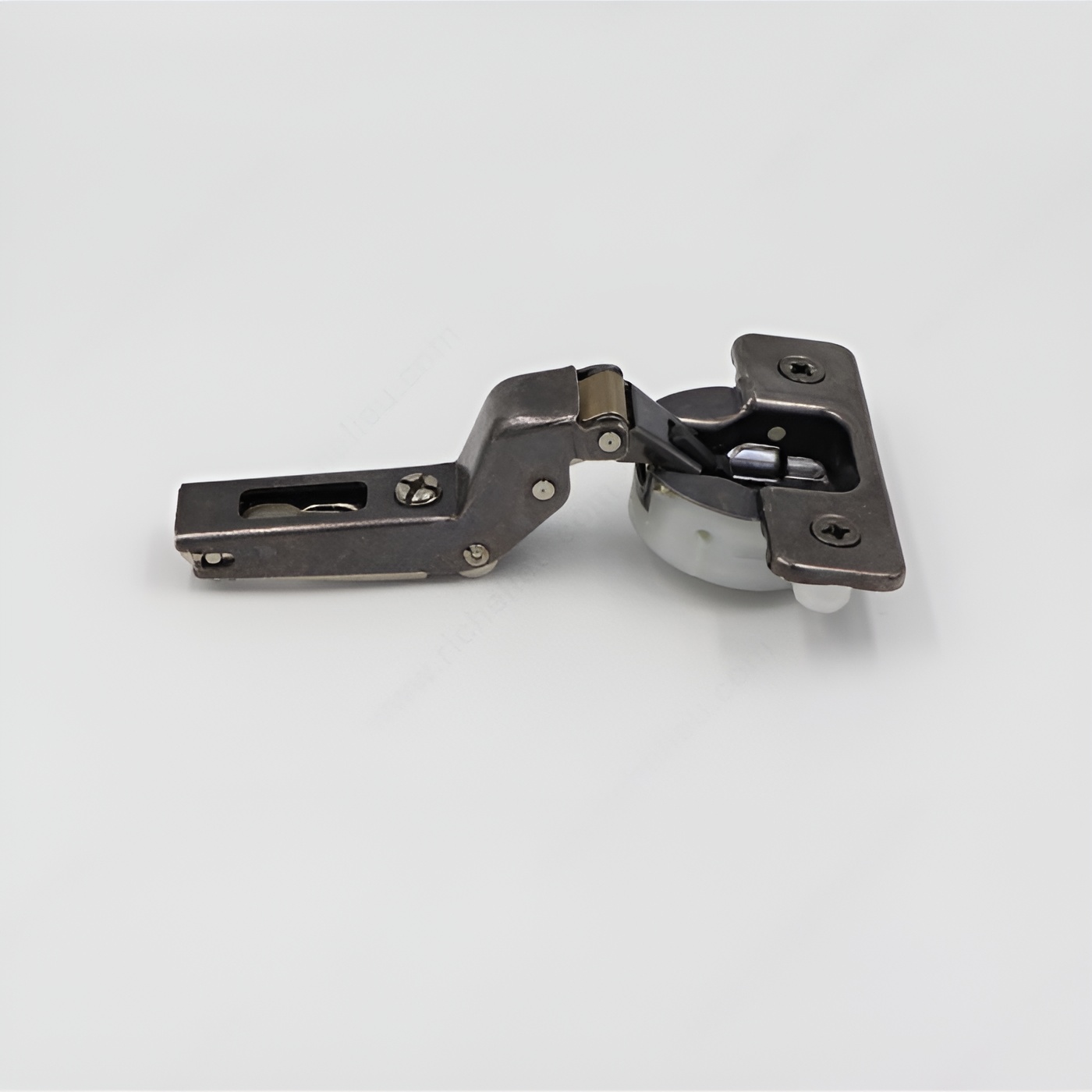

Richelieu H105C1R6PD6 Series 100 Concealed Hinges 105 deliver a sophisticated solution for frameless cabinetry, ensuring a polished look while providing functionality. Designed for inset doors, these hinges feature a soft-closing mechanism that adds a touch of luxury to everyday use, preventing slamming and prolonging the life of your cabinetry. With a hinge opening angle of +105°, the H105C1R6PD6 allows for easy access to your cabinet contents, while the load capacity of 10 lbs ensures reliable performance for standard doors. Crafted with a sleek titanium finish, these hinges not only offer durability but also complement a variety of design aesthetics. Installation is straightforward, with a drilling distance between 1/8 to 1/4 inches and a milling depth of 15/32 inches. The hinges utilize dowel fixing, providing a secure and stable attachment. Additionally, with no overlay, they maintain a clean, flush appearance, ideal for modern designs. Ready for immediate shipment via UPS, the Richelieu H105C1R6PD6 hinges are a stock item, allowing for quick project turnarounds. Elevate your cabinetry with these expertly engineered concealed hinges, marrying aesthetics with performance seamlessly.
100 Series - Silentia+ Concealed Hinges 105
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Titanium
Fixing Type: Dowel
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Soft-Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Overlay: 0 in
Product #: H105C1R6PD6
Product number: H105C1R6PD6
Product №: H105C1R6PD6
Production Time: Stock
Silentia+ Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door
