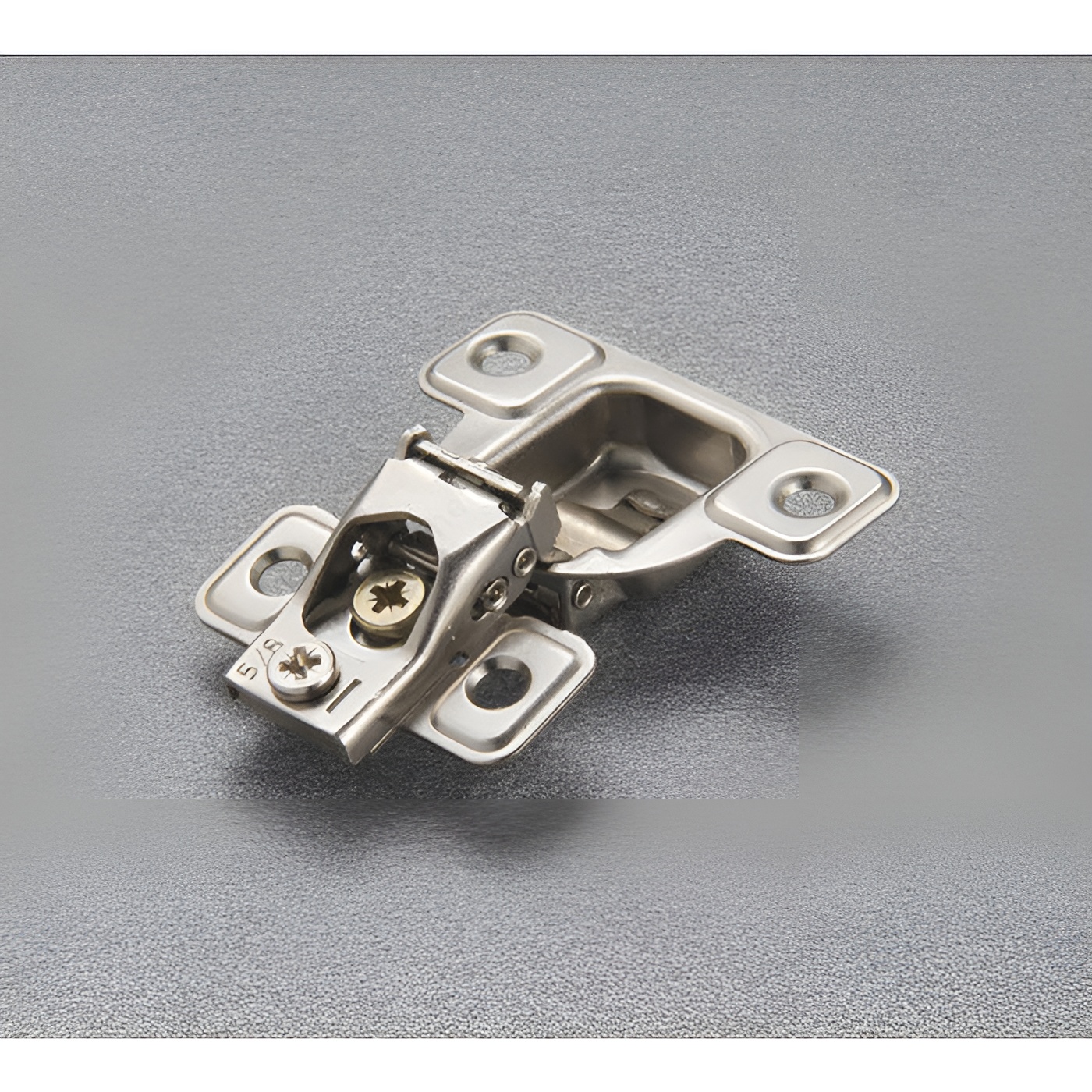

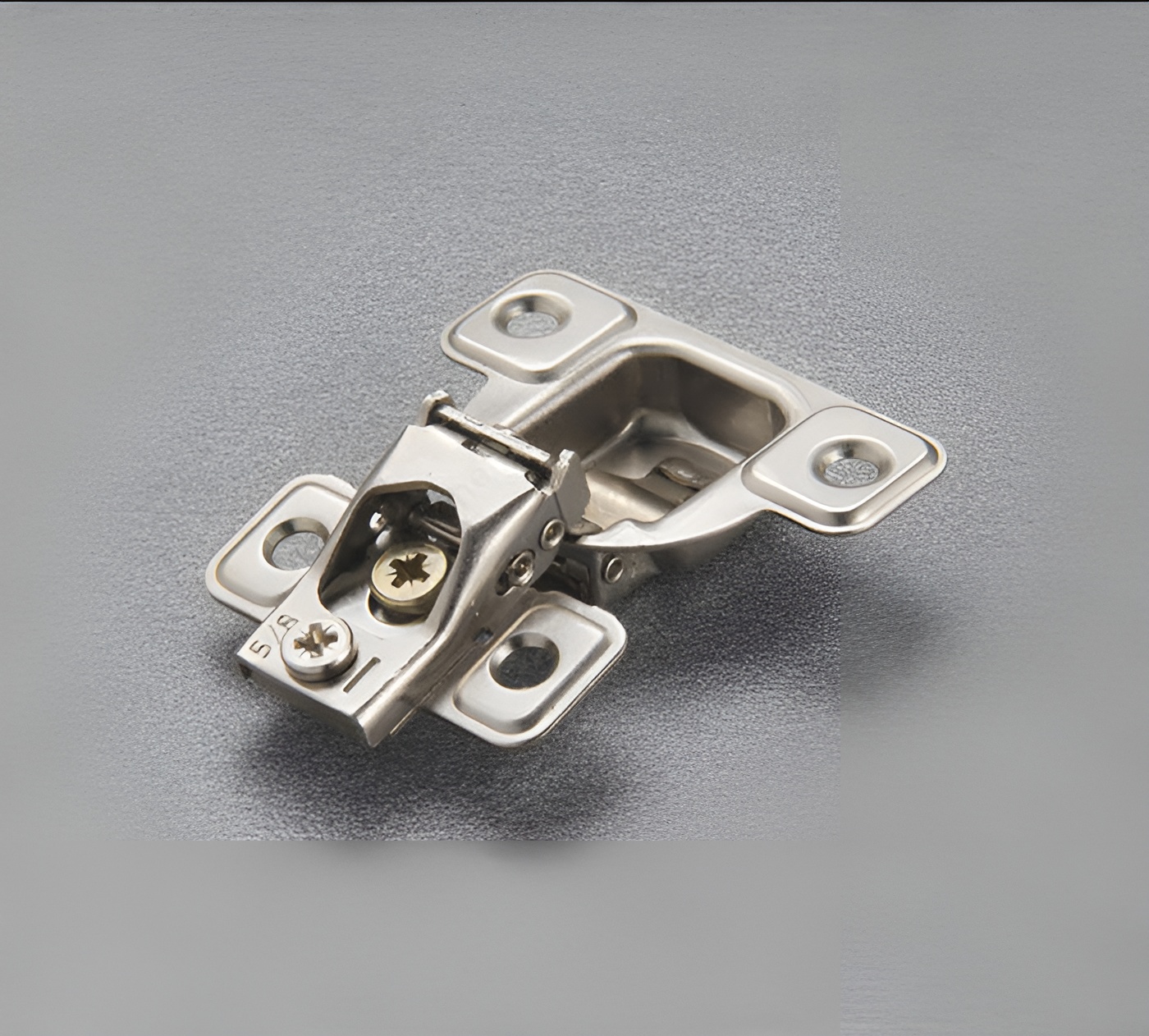

Richelieu H106CSP3599XR Excenthree Face Frame 3 Cams Hinges deliver exceptional performance and versatility for your door installation needs. Designed specifically for face frame cabinets, these hinges accommodate varying frame thicknesses, making them ideal for refacing projects and other applications. Featuring side, height, and depth adjustments, they ensure a precise fit and smooth operation. Crafted from durable stamped steel and finished in nickel, these hinges boast a cup depth of 11 mm (7/16") and an impressive opening angle of 106°. With a fixed drilling distance of 2.5 mm (3/32"), installation is straightforward and efficient. The gap between the door and frame is maintained at 4.6 mm (3/16"), ensuring a seamless appearance. The H106CSP3599XR is compatible with overlays ranging from 1/4" (6.4 mm) to 1-7/16" (36.5 mm), providing flexibility for various door styles. Its zero-door protrusion feature allows for a clean aesthetic, while the spring-closing mechanism guarantees smooth operation with a load capacity of 10 lb per hinge. For optimal installation, it is recommended to use #6 x 5/8" (15.9 mm) screws for frame fixing. Elevate your cabinet design with the reliability and functionality of Richelieu's H106CSP3599XR hinges.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount

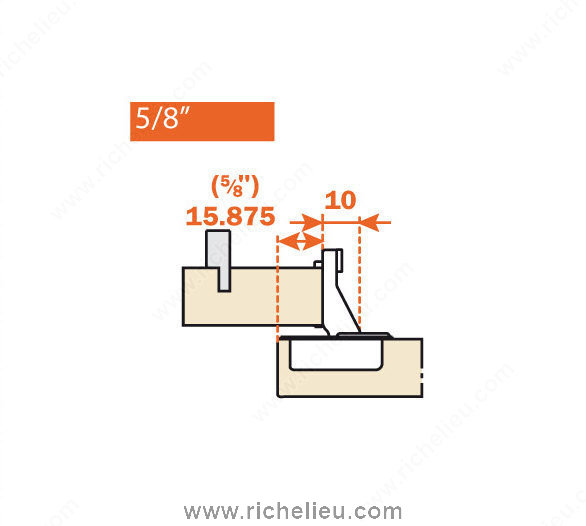

Overlay: 5/8 in
Product #: H106CSP3599XR
Product number: H106CSP3599XR
Product №: H106CSP3599XR
Production Time: Stock
Screw/ Nail: Wood Screw (Included)
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
