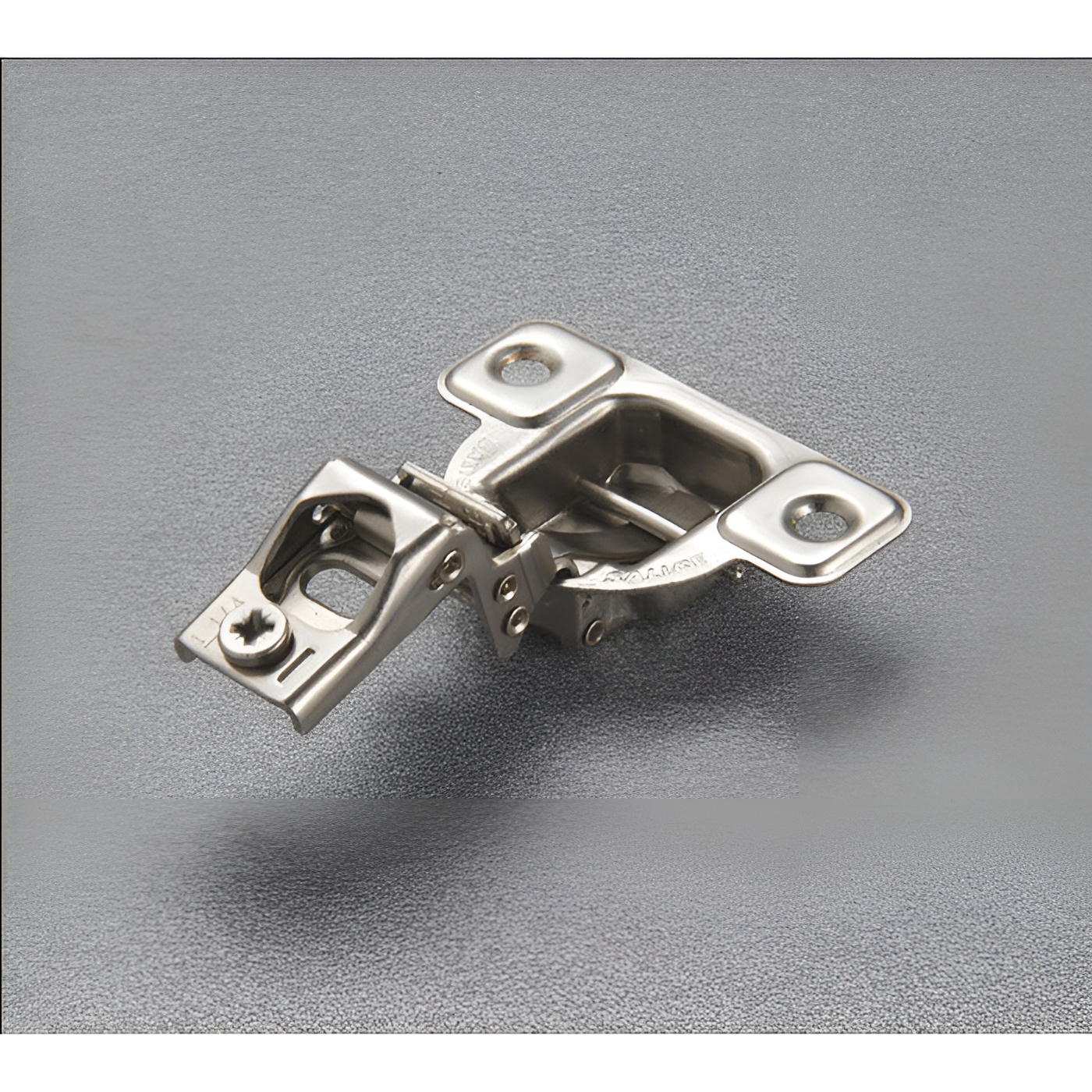

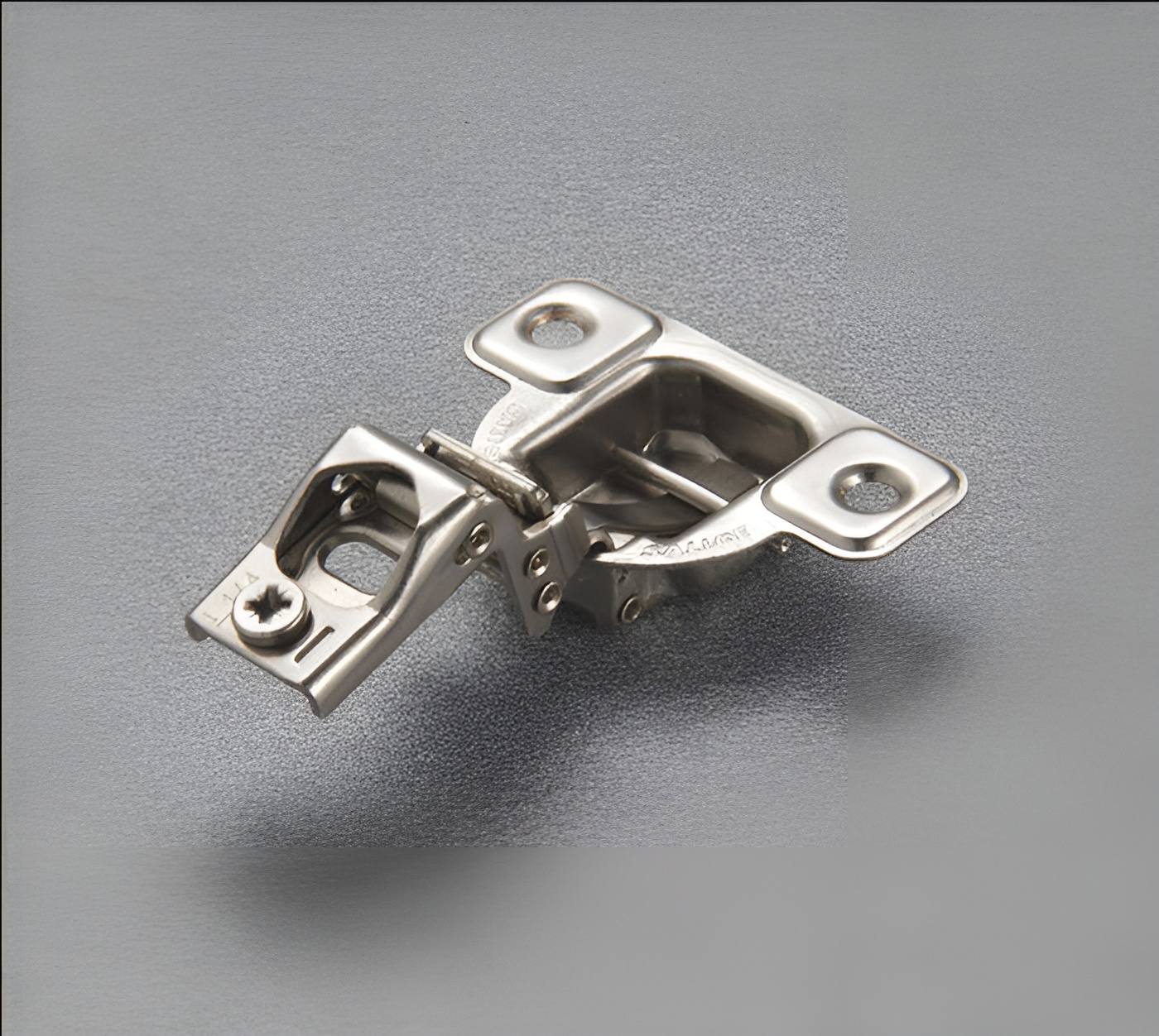

Richelieu H106CSP3A99NR Excenthree Face Frame 3 Cams Hinges are designed for versatility and precision in door closing applications. Crafted from durable stamped steel, these hinges ensure robust performance while providing side, height, and depth adjustments, making them perfect for refacing or accommodating various frame thicknesses. With an impressive opening angle of 106 degrees, they facilitate easy access and functionality. The hinge is indexed from the front of the face frame, allowing for straightforward adjustments without a back tab. Suitable for full overlay cabinet doors, these hinges support overlays ranging from 1/4" to 1-7/16", achieving a reveal value of 8.3 mm or 5.2 mm for square edge doors at a 90° opening, respectively. The hinge features a cup depth of 11 mm (7/16") and a fixed drilling distance of 2.5 mm (3/32"). Designed for zero-door protrusion, these hinges support a load capacity of up to 10 lbs, ensuring reliability in everyday use. For installation, it is recommended to use a #6 x 5/8" (15.9 mm) FHP screw. With its nickel finish and face-mount design, the Richelieu H106CSP3A99NR hinges are a professional-grade choice for any cabinetry project.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount

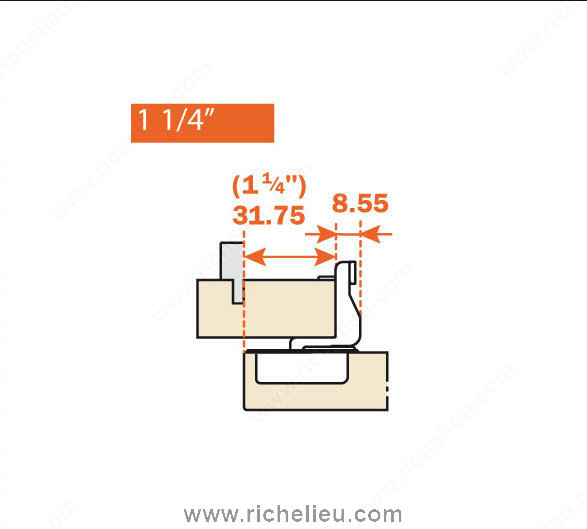

Overlay: 1 1/4 in
Product #: H106CSP3A99NR
Product number: H106CSP3A99NR
Product №: H106CSP3A99NR
Production Time: Stock
Screw/ Nail: Wood Screw (Included)
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
