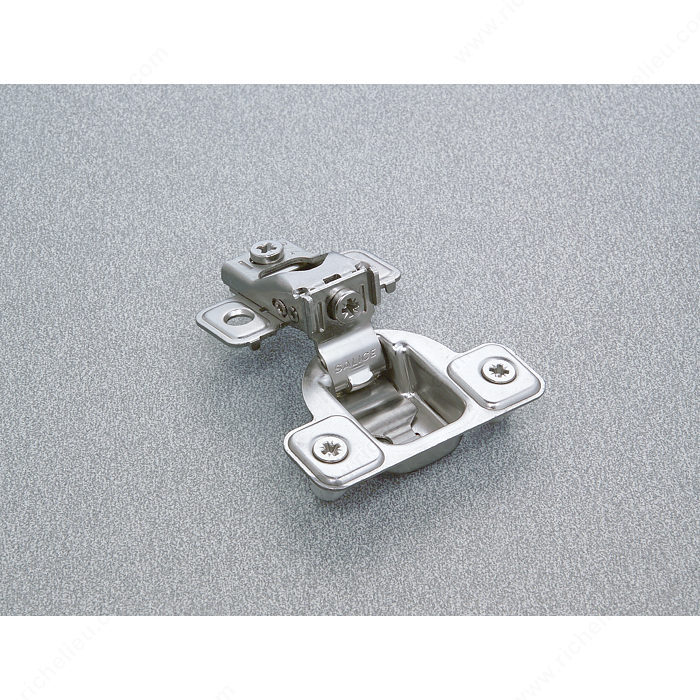

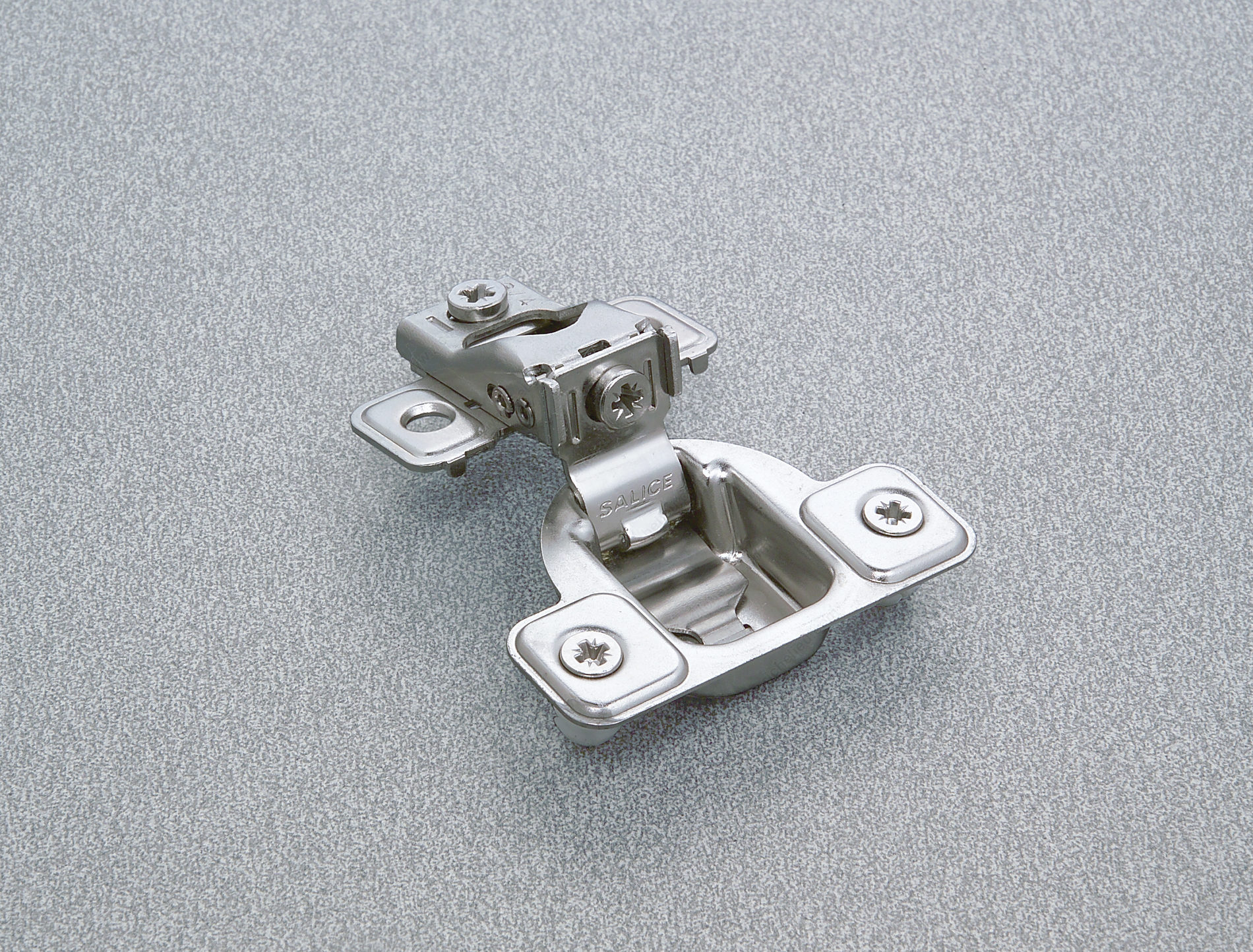

Richelieu H106CSR3499XR Excenthree Face Frame 3 Cams Hinges provide a reliable solution for closing doors with precision and ease. Designed specifically for face frame applications, these hinges facilitate side, height, and depth adjustments, making them ideal for projects involving varied frame thicknesses. Constructed from durable stamped steel, the H106CSR3499XR hinges offer a cup depth of 11 mm (7/16") and an impressive opening angle of 106 degrees. With a fixed drilling distance of 2.5 mm (3/32"), they ensure a consistent fit across installations. The gap between the door and frame measures 4.6 mm (3/16"), allowing for seamless functionality. These hinges accommodate overlays from 1/4" (6.4 mm) to 3/4" (19 mm), providing a reveal value of 8.3 mm for 3/4" square edge doors at a 90° opening. For larger overlays, from 1" to 1-7/16" (25.4 mm to 36.5 mm), the reveal value adjusts to 5.2 mm. With a zero-door protrusion design and a load capacity of 10 lb, these hinges are perfect for standard door applications. The recommended frame fixing uses a #6 x 5/8" (15.9 mm) screw, ensuring a secure installation. Enhance your cabinetry with the dependable performance of Richelieu H106CSR3499XR hinges.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 3/4 in
Product #: H106CSR3499XR
Product number: H106CSR3499XR
Product №: H106CSR3499XR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
