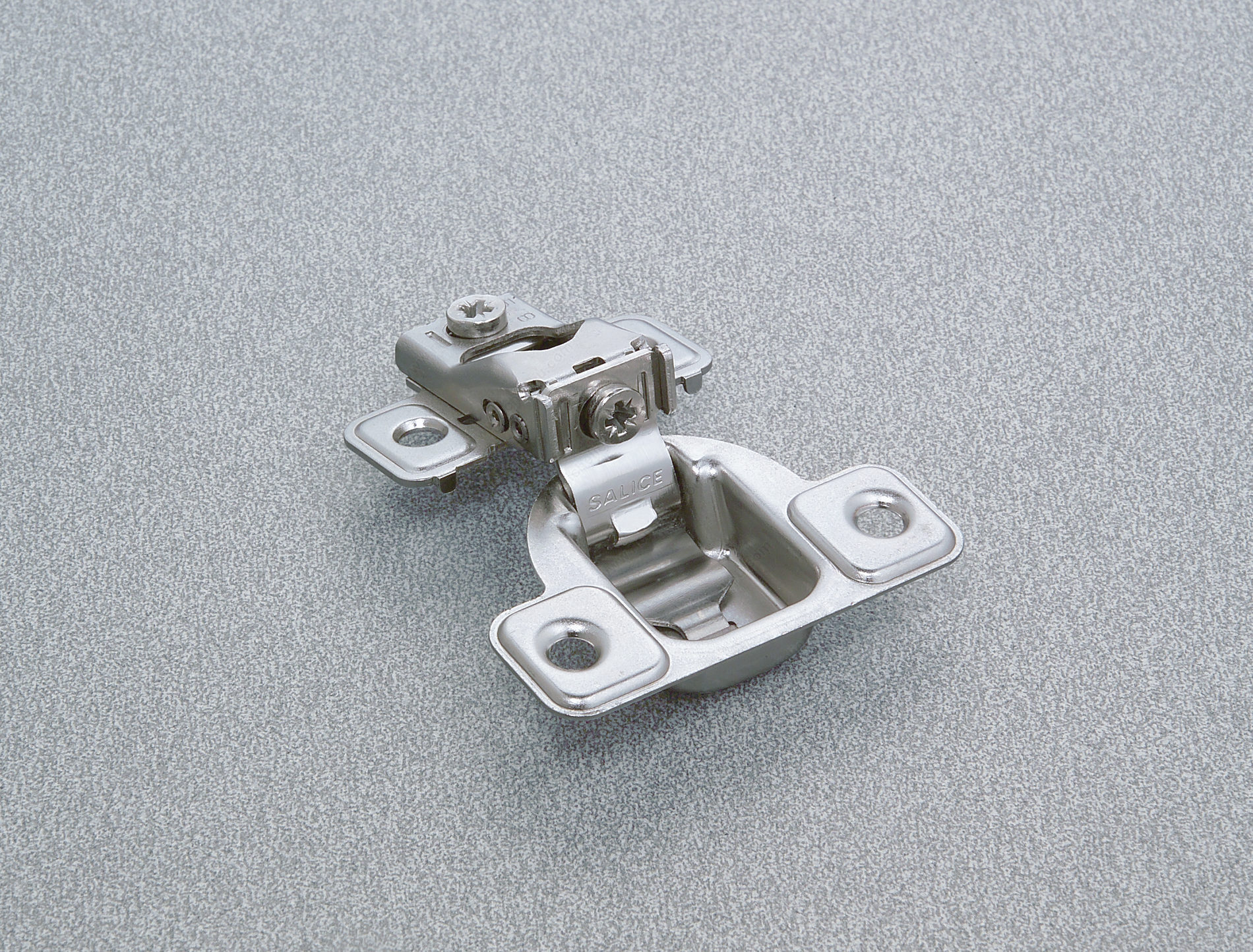

Richelieu H106CSR3599XR Excenthree Face Frame 3 Cams Hinges are designed to provide reliable and adjustable solutions for closing doors, making them an excellent choice for various applications, including refacing projects. Featuring side, height, and depth adjustments, these hinges cater to frame thickness variations, ensuring a perfect fit for your cabinetry. Constructed from stamped steel with a sleek nickel finish, the hinges offer durability and a polished appearance. With a cup depth of 11 mm (7/16") and a generous opening angle of 106°, they facilitate easy access while maintaining functionality. The hinges are indexed solely from the front of the face frame, which simplifies installation as they do not include a back tab. Designed for full overlay doors with a gap of 4.6 mm (3/16") between the door and frame, the H106CSR3599XR is compatible with overlays ranging from 1/4" (6.4 mm) to 1-7/16" (36.5 mm). The suggested frame fixing requires a #6 x 5/8" (15.9 mm) screw for a secure installation. With a load capacity of 10 lbs and a spring closing mechanism, these hinges ensure smooth and efficient operation for standard doors. Choose Richelieu's Excenthree hinges for a dependable and stylish solution to your cabinetry needs.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 5/8 in
Product #: H106CSR3599XR
Product number: H106CSR3599XR
Product №: H106CSR3599XR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
