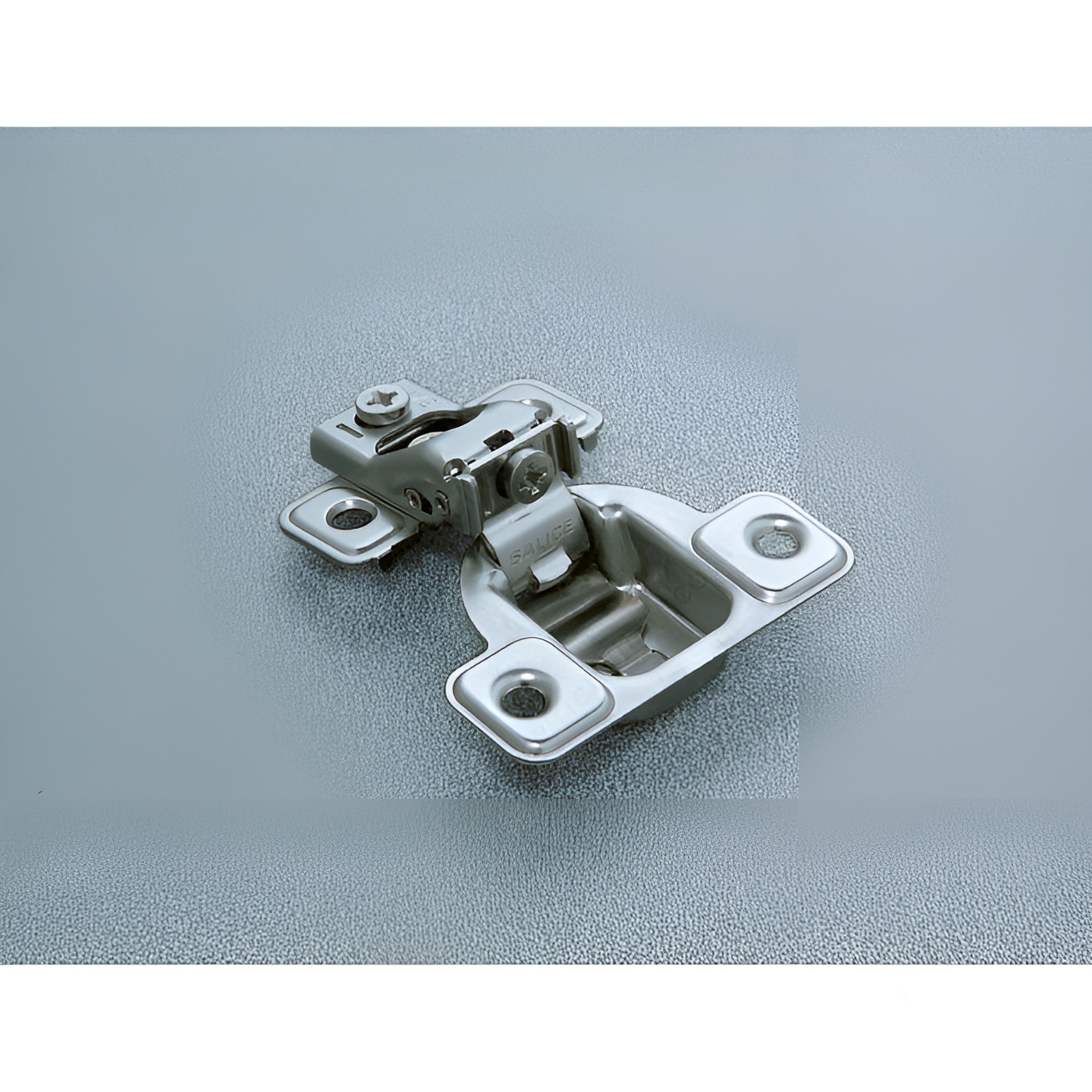

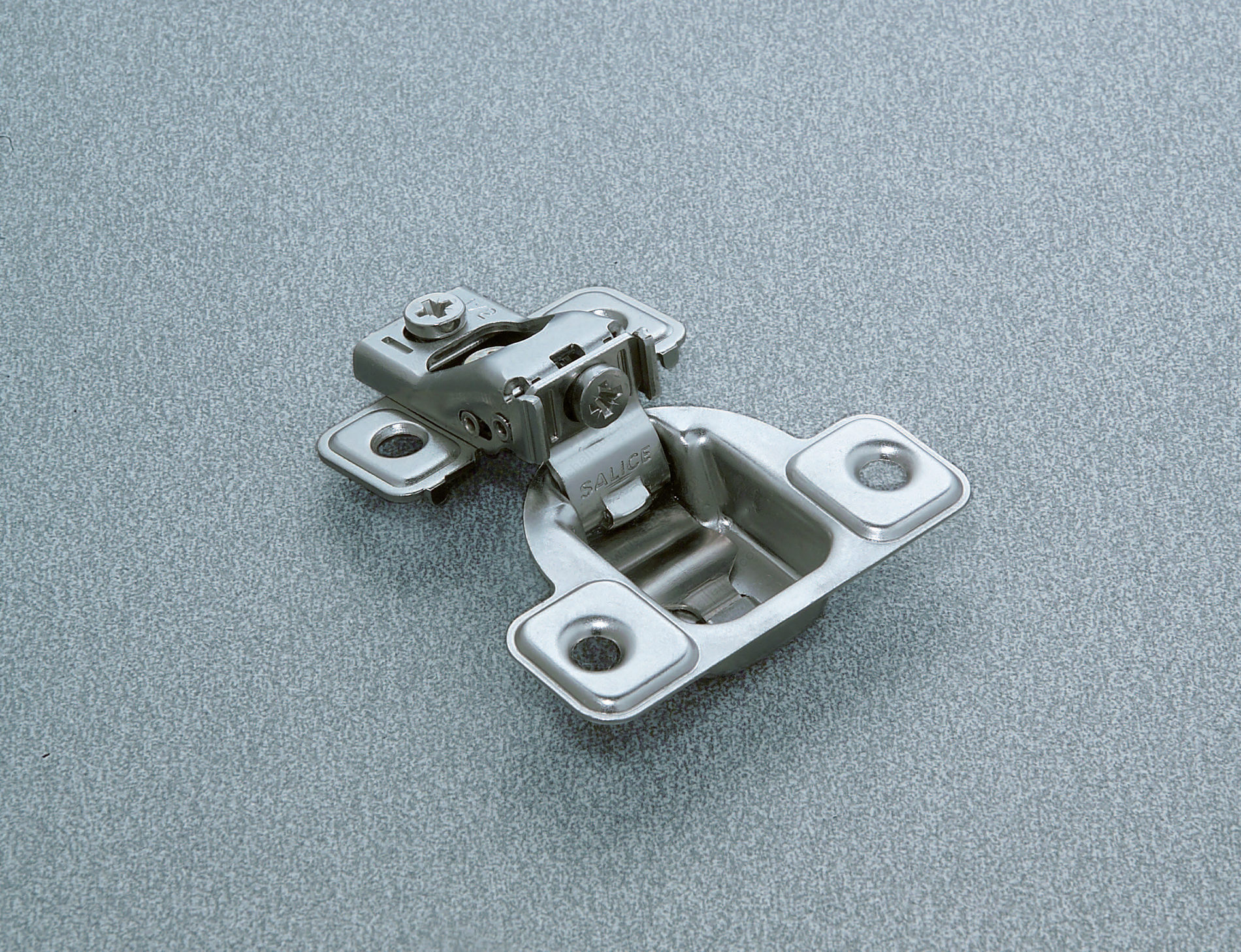

Richelieu H106CSR3799XR Excenthree Face Frame 3 Cams Hinges are expertly designed to deliver exceptional performance for closing any door. Their robust construction from stamped steel ensures durability, while the innovative design allows for precise side, height, and depth adjustments. This feature is particularly beneficial for refacing projects or applications where frame thickness can vary. The hinges open to an impressive 106° angle, providing ample access while maintaining a zero-door protrusion for a sleek aesthetic. With a cup depth of 11 mm (7/16"), they accommodate various overlay sizes, making them versatile for full overlay doors. For overlays ranging from 1/4" (6.4 mm) to 3/4" (19 mm), the reveal value is 8.3 mm, while for larger overlays of 1" through 1-7/16" (25.4 mm to 36.5 mm), the reveal value adjusts to 5.2 mm. Ideal for standard doors, these hinges support a load capacity of 10 lb and utilize a spring closing mechanism for smooth operation. The fixed drilling distance of 2.5 mm (3/32") simplifies installation, and the suggested frame fixing with screw #6 x 5/8" (15.9 mm) ensures a secure fit. Elevate your cabinetry with Richelieu's H106CSR3799XR hinges for a reliable and stylish solution.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 1/2 in
Product #: H106CSR3799XR
Product number: H106CSR3799XR
Product №: H106CSR3799XR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
