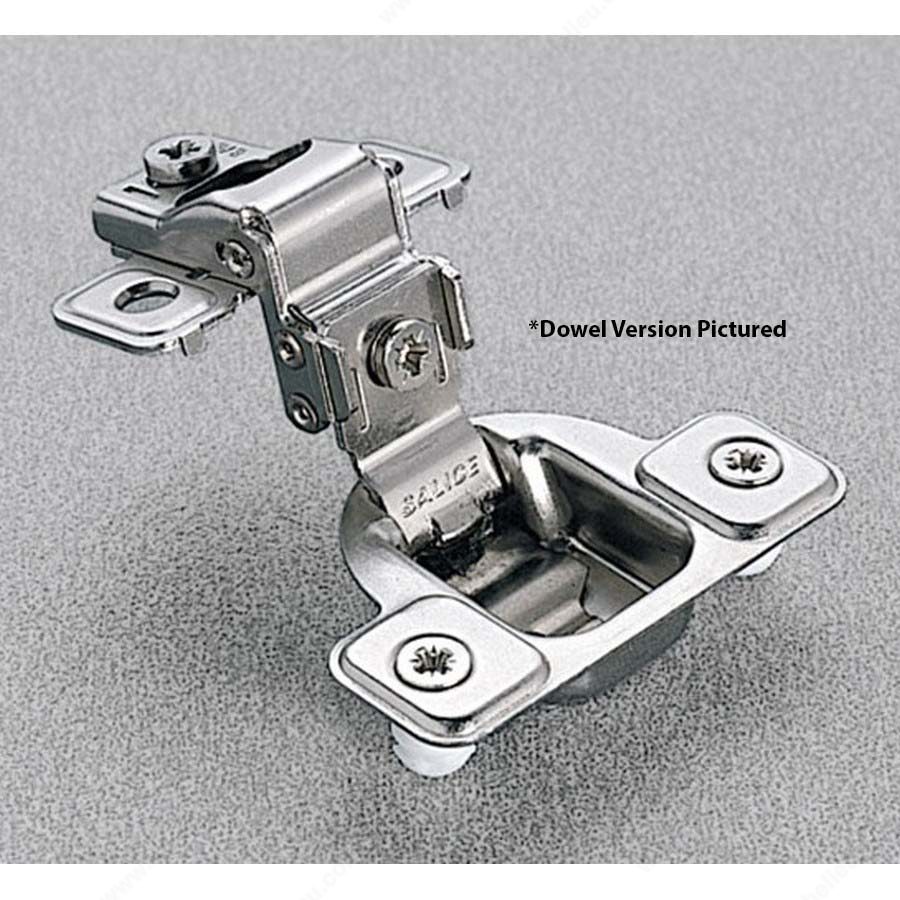

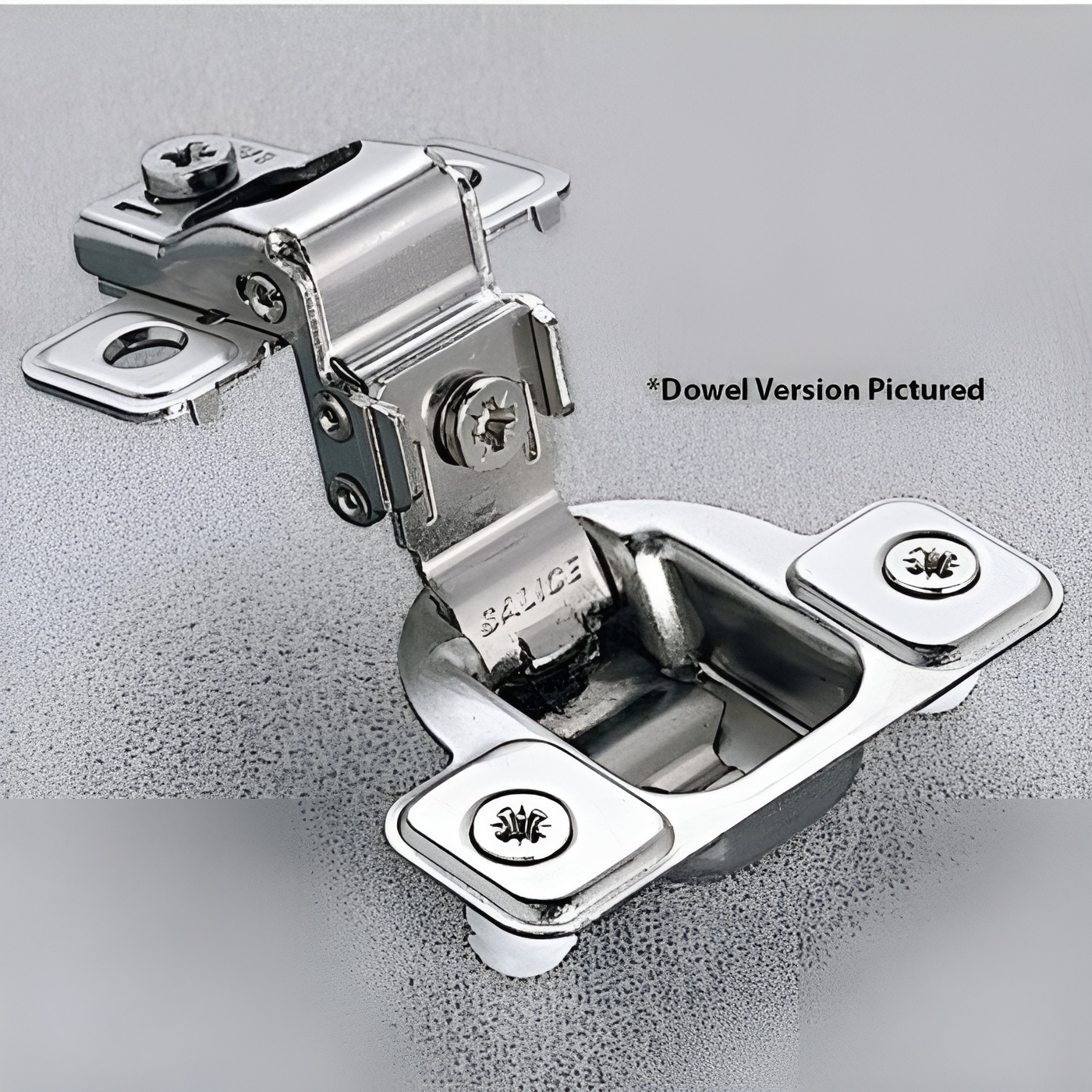

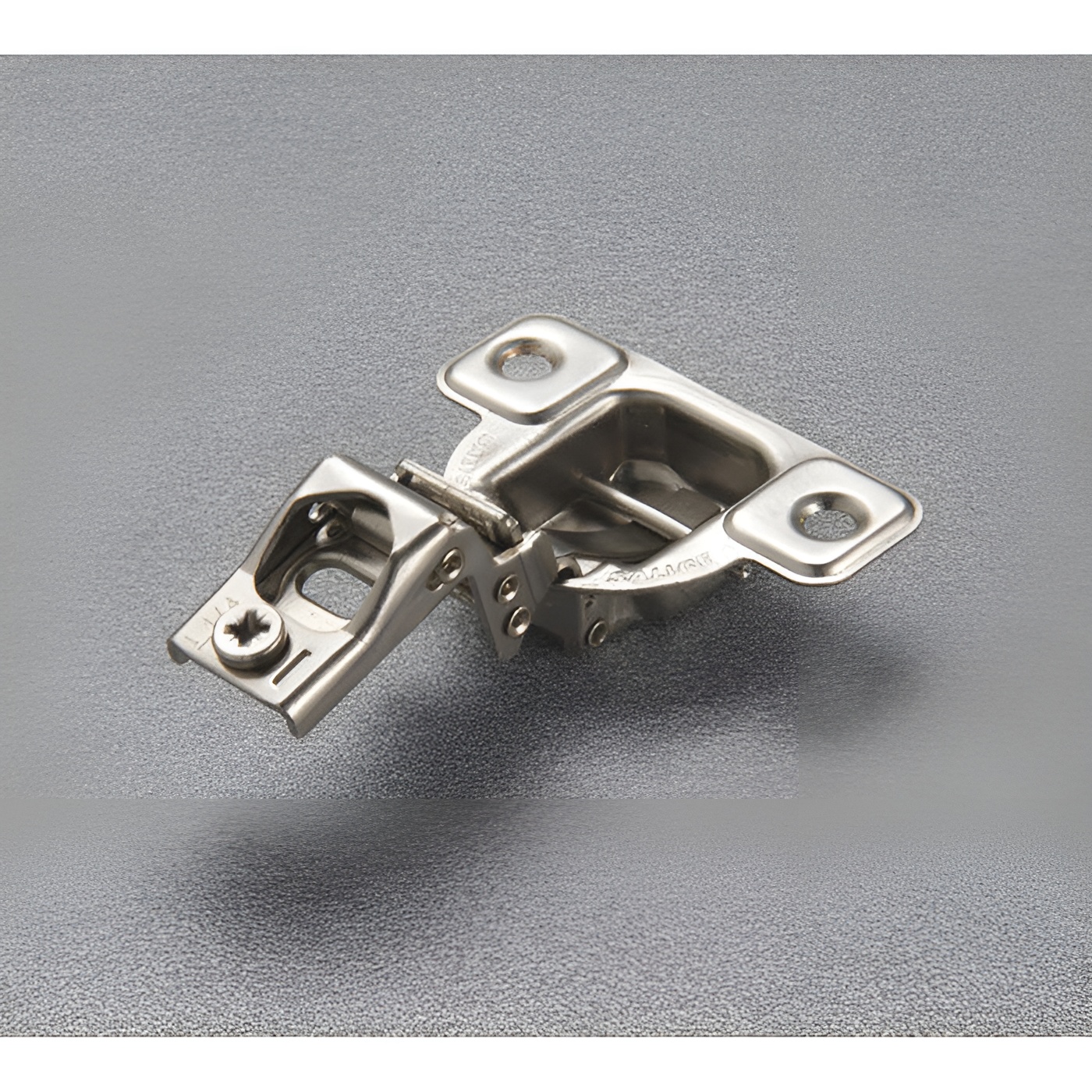

Richelieu H106CSR3A99PR Excenthree Face Frame 3 Cams Hinges are expertly designed to enhance the functionality and aesthetics of any door. Ideal for refacing projects, these hinges provide adjustable side, height, and depth settings to accommodate varying frame thicknesses. With an opening angle of 106°, they ensure easy access while maintaining a sleek profile. Crafted from durable stamped steel and finished in a contemporary nickel, these hinges are built to last. The cup depth measures 11 mm (7/16"), allowing for a seamless integration into your cabinetry. They are suitable for full overlay applications, supporting door overlays from 1/4" (6.4 mm) to 1-7/16" (36.5 mm) with specific reveal values for optimal placement. Installation is straightforward, with a fixed drilling distance of 2.5 mm (3/32") and suggested screw size of #6 x 5/8" (15.9 mm) for secure mounting. Additionally, the zero-door protrusion feature ensures a clean and unobtrusive appearance. With a load capacity of 10 lbs, the Richelieu H106CSR3A99PR hinges combine practicality with style, making them an essential choice for both building professionals and discerning homeowners.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount

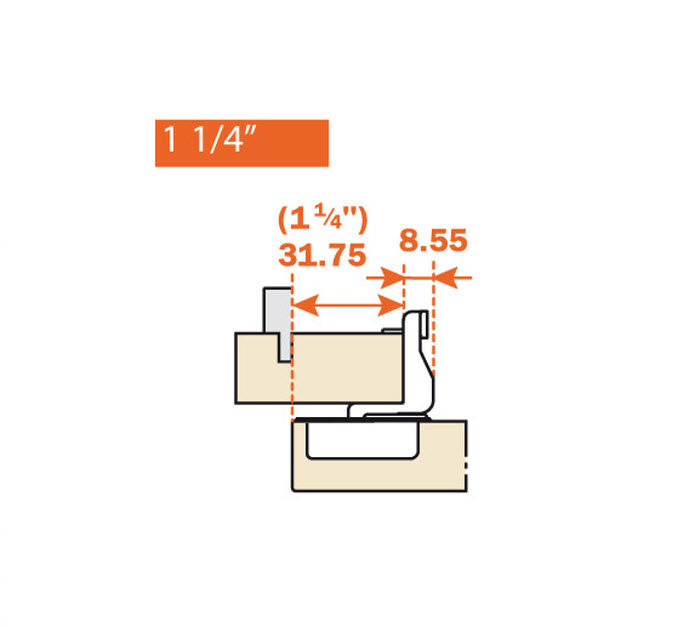

Overlay: 1 1/4 in
Product #: H106CSR3A99PR
Product number: H106CSR3A99PR
Product №: H106CSR3A99PR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
