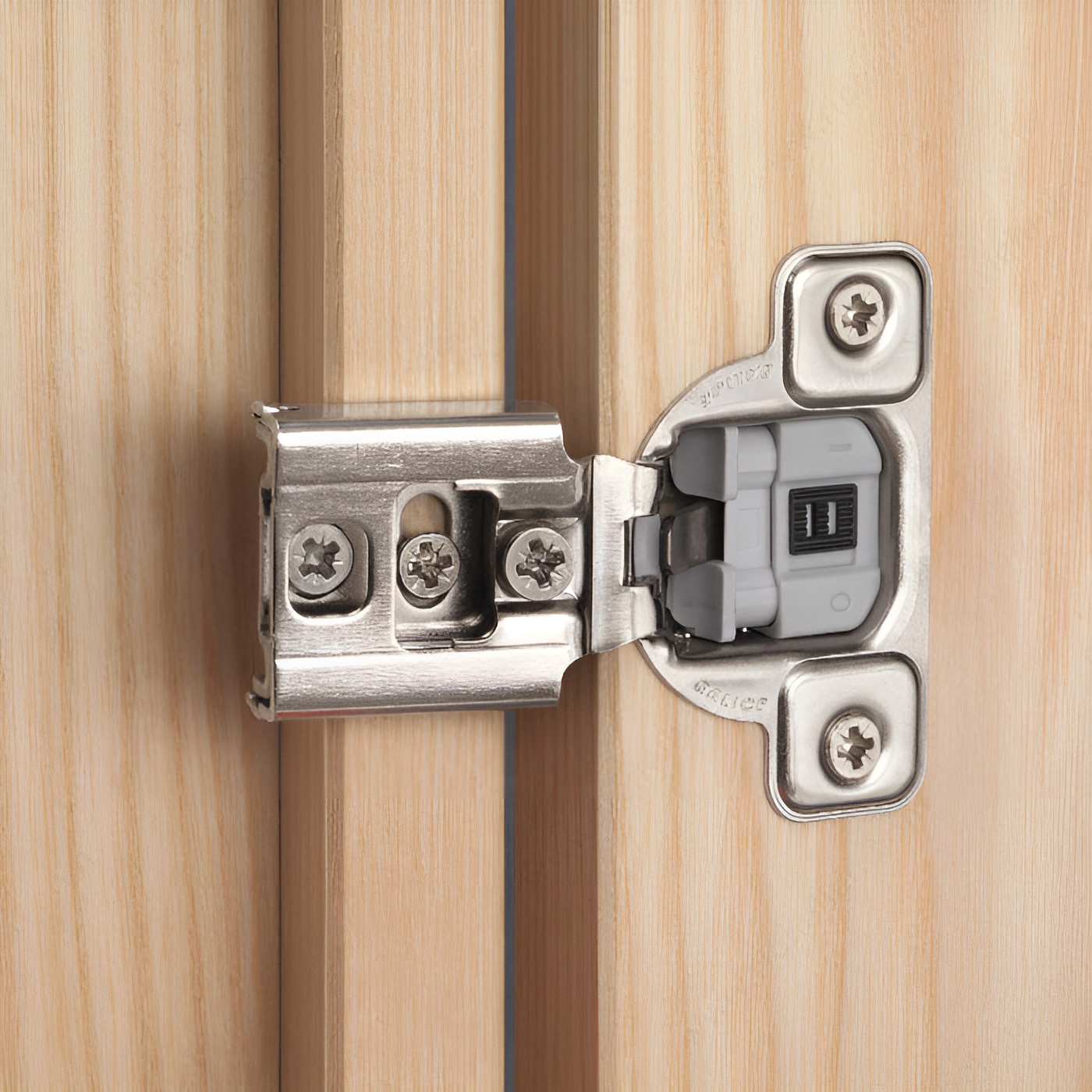

Richelieu H106CUP35D9 Silentia CU Face Frame 2 Cams Hinges offer a seamless blend of functionality and modern design. These hinges are engineered with an integrated soft-closing system, which ensures that doors close quietly and gently, enhancing the overall user experience. The eccentric cams allow for easy adjustments, making it simple to customize the closing strength to fit your specific needs. If a different soft-closing strength is desired, the decelerating mechanism can be swiftly deactivated using the conveniently located activation switch on the front of the unit. Designed for face frame cabinets, these hinges accommodate full overlay doors with thicknesses ranging from 9/16 to 7/8 inches. The wrap-around mount design provides stability, while the hinge opening angle of +106° ensures ample access to cabinet interiors. With a milling depth of 7/16 inches and a diameter of 1 3/8 inches, installation is straightforward and efficient. The hinges are screw-on fixing type, making them user-friendly and reliable. Whether you are a building professional or a knowledgeable homeowner, the Richelieu H106CUP35D9 Silentia CU Hinges are an excellent choice for standard doors, enhancing both aesthetics and functionality in your cabinetry.
Silentia CU Face Frame 2 Cams Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Drilling Distance: 3/32 in*
Drilling Pattern: 45
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 5/8 in
Product #: H106CUP35D9
Product number: H106CUP35D9
Product №: H106CUP35D9
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
