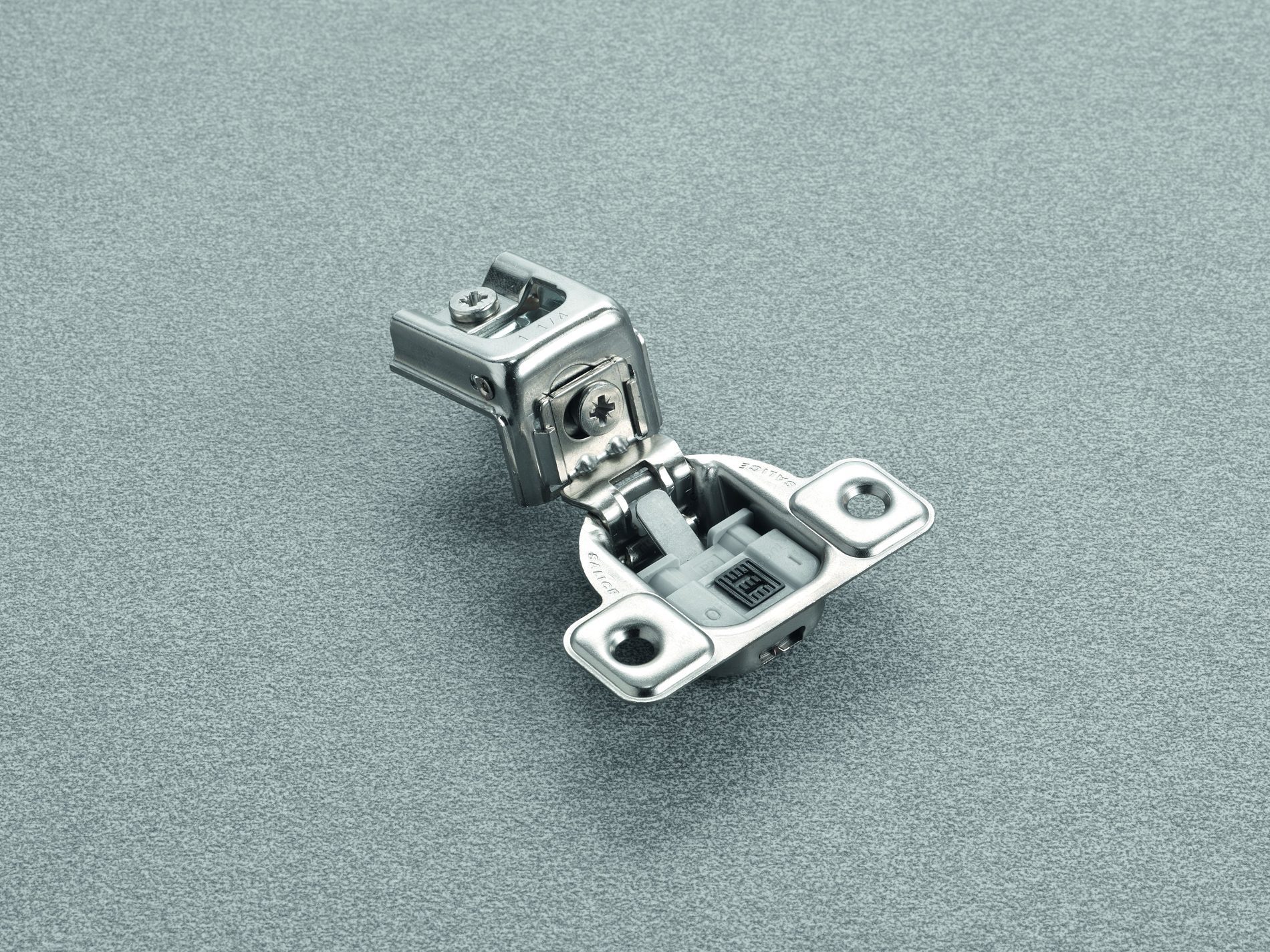

Richelieu H106CUP3AD9 Silentia CU Face Frame 2 Cams Hinges offer a sophisticated solution for cabinet doors, integrating an advanced soft-closing system that enhances user convenience. These hinges are designed specifically for face frame cabinets and support full overlay doors, making them ideal for modern kitchen applications. The unique eccentric cams allow for easy adjustment of the soft-closing action, ensuring that you can achieve the perfect balance of resistance according to your needs. If a stronger closing force is desired, simply deactivate the decelerating mechanism using the accessible activation switch located on the front of the hinge. Engineered for durability, the H106CUP3AD9 hinges accommodate door thicknesses ranging from 9/16 to 7/8 inches and feature a hinge opening angle of +106°, facilitating smooth and effortless operation. The wrap-around mounting type ensures a secure fit, while the milling depth of 7/16 inches and diameter of 1 3/8 inches provide flexibility during installation. These hinges ship via UPS for convenience and are ready for immediate use, making them a reliable choice for both building professionals and discerning homeowners looking to enhance their cabinetry. Upgrade your installations with Richelieu's innovative hinge solution for a seamless finish.
Silentia CU Face Frame 2 Cams Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Drilling Distance: 3/32 in*
Drilling Pattern: 45
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 1 1/4 in
Product #: H106CUP3AD9
Product number: H106CUP3AD9
Product №: H106CUP3AD9
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
