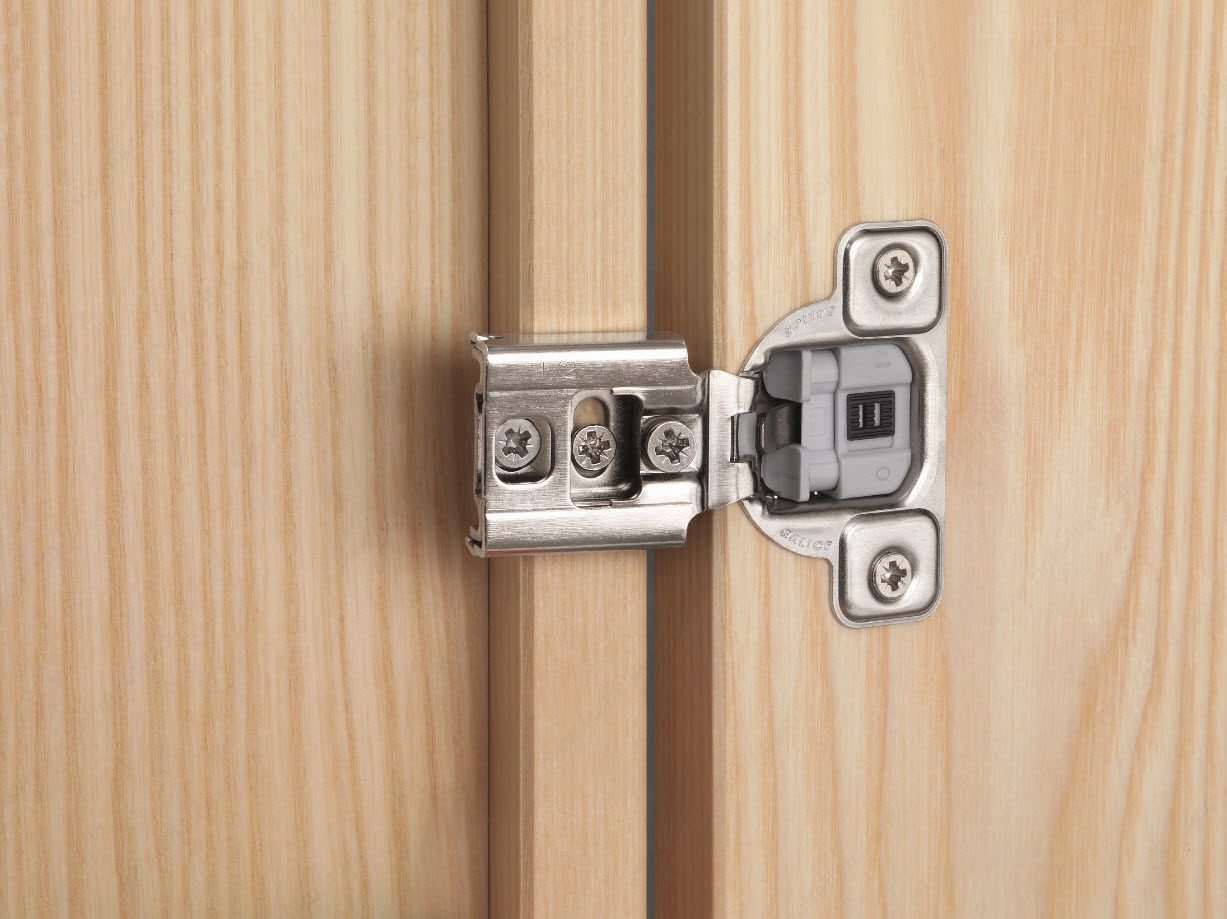

Richelieu H106CUP3BD9 Silentia CU Face Frame 2 Cams Hinges offer a seamless solution for cabinet door applications, combining innovative design with practical functionality. These hinges feature an integrated soft-closing system that ensures doors close gently and quietly, enhancing the overall user experience. The eccentric cams allow for easy adjustments, making it simple to customize the soft-closing strength to meet specific needs. If a different level of deceleration is desired, the mechanism can be deactivated effortlessly using the conveniently located activation switch on the front of the hinge. Designed for face frame cabinets, these hinges accommodate full overlay doors with a thickness ranging from 9/16 to 7/8 inches. They provide a remarkable hinge opening angle of +106°, ensuring easy access to cabinet interiors. The wrap-around mount and screw-on fixing type facilitate straightforward installation, while the milling depth and diameter specifications (7/16 in and 1 3/8 in, respectively) ensure compatibility with various cabinet designs. Richelieu's commitment to quality is evident in the H106CUP3BD9, making it an ideal choice for both building professionals and discerning homeowners seeking reliable hardware that enhances functionality and aesthetics.
Silentia CU Face Frame 2 Cams Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Drilling Distance: 3/32 in*
Drilling Pattern: 45
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 1 5/16 in
Product #: H106CUP3BD9
Product number: H106CUP3BD9
Product №: H106CUP3BD9
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
