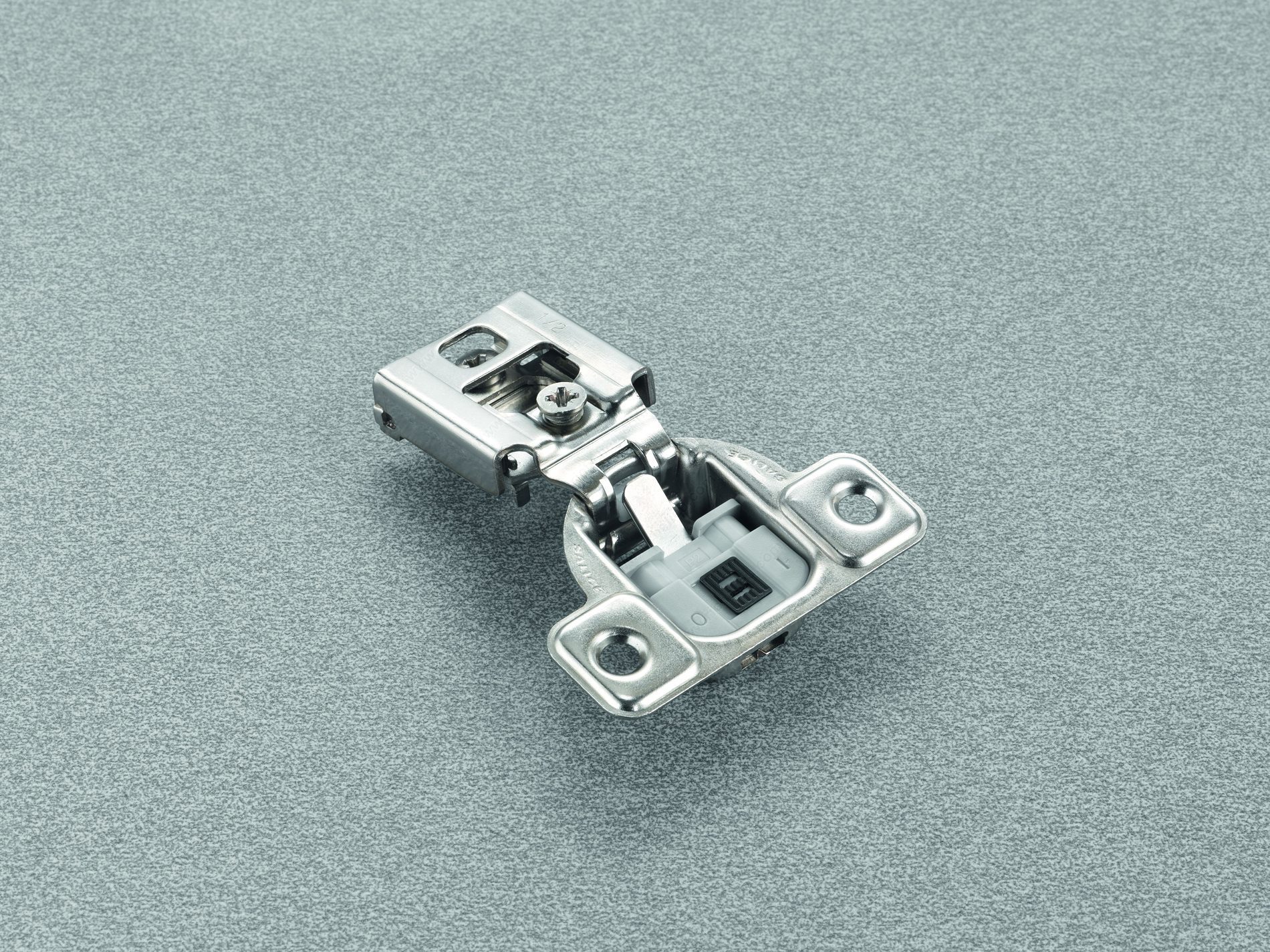

Richelieu H106CUR37D9 Silentia CU Face Frame 2 Cams Hinges are designed to elevate the functionality and aesthetics of your cabinetry. These innovative hinges incorporate an integrated soft-closing system, ensuring that doors close quietly and smoothly, enhancing the overall user experience. For those who require a different soft-closing strength, the decelerating mechanism can be effortlessly deactivated using the conveniently located activation switch. Tailored for face frame cabinets, these hinges accommodate full overlay doors with a thickness ranging from 9/16 to 7/8 inches. The hinge opening angle of +106° allows for easy access, making your cabinetry more user-friendly. The wrap-around mounting type ensures secure installation, while the dowel fixing type provides added durability. With a drilling distance of 3/32 inches and a milling depth of 7/16 inches, the H106CUR37D9 is engineered for precision and reliability. The hinge's milling diameter of 1 3/8 inches and a 1/2-inch overlay further enhance its adaptability to various cabinet designs. Whether you’re a professional builder or a discerning homeowner, these hinges combine functionality with ease of installation, making them an excellent choice for any standard door application. Trust Richelieu for quality and innovation in your cabinetry hardware solutions.
Silentia CU Face Frame 2 Cams Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Drilling Distance: 3/32 in*
Drilling Pattern: 45
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +106°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 1/2 in
Product #: H106CUR37D9
Product number: H106CUR37D9
Product №: H106CUR37D9
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
