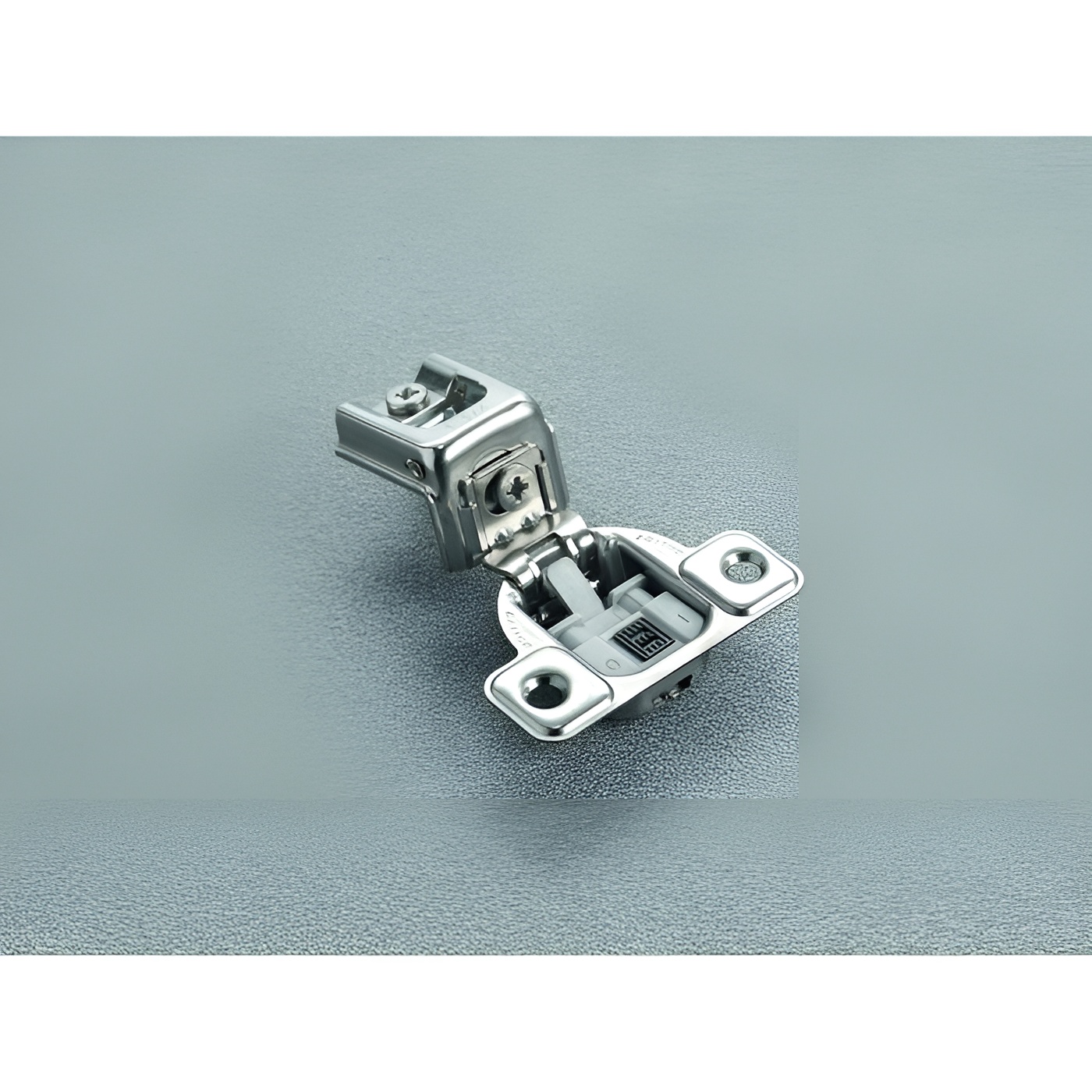

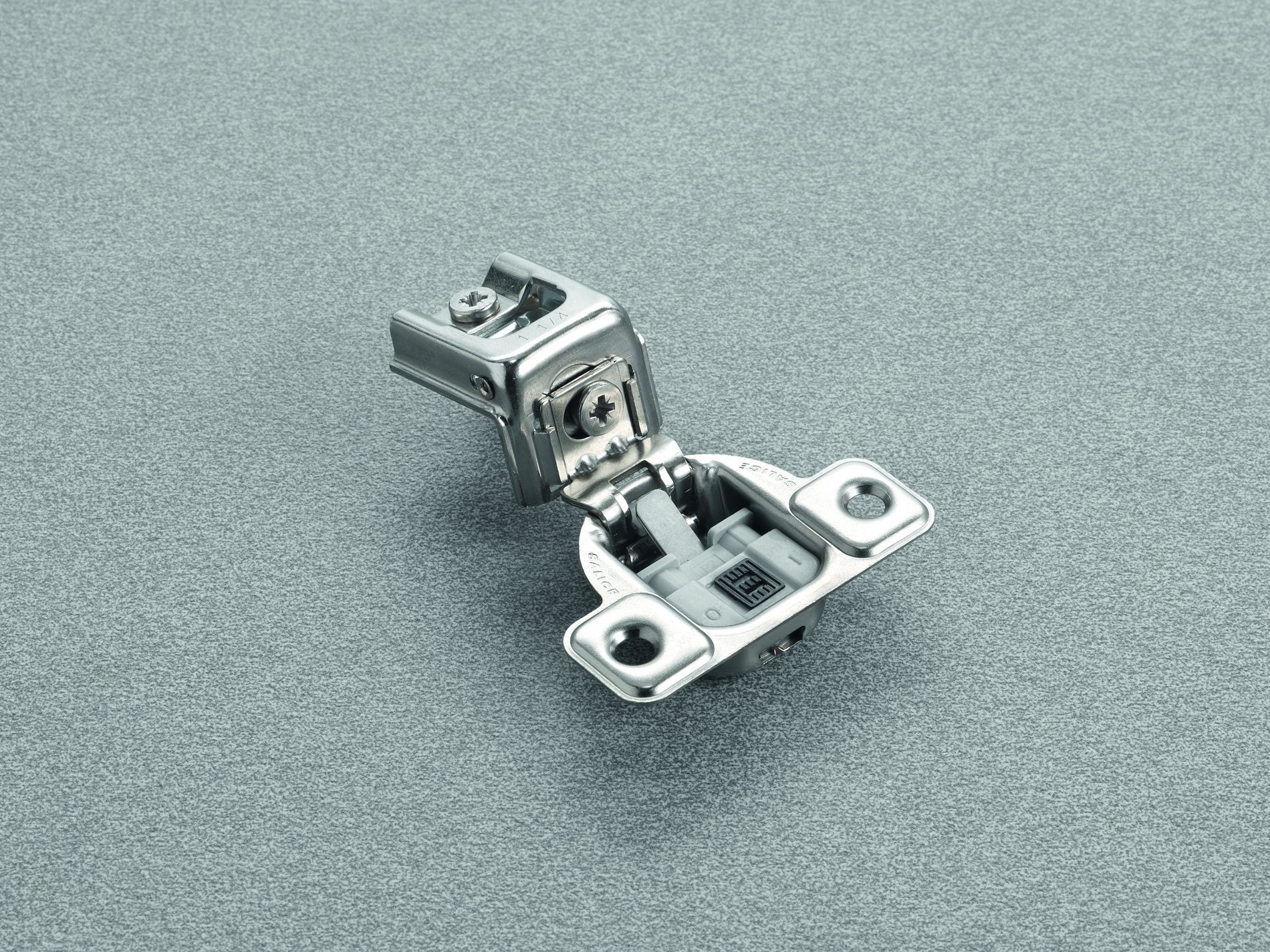

Richelieu H106CUR3AD9 Silentia CU Face Frame 2 Cams Hinges provide an elegant solution for modern cabinetry with their integrated soft-closing system. Designed specifically for face frame cabinets, these hinges ensure a seamless closure, enhancing the overall aesthetic and functionality of your spaces. The innovative eccentric cams allow for easy adjustments, accommodating various door thicknesses between 9/16 to 7/8 inches. For projects requiring flexibility, the decelerating mechanism can be conveniently deactivated using the activation switch located on the front of the unit, enabling customization of the soft-closing strength. With a hinge opening angle of +106°, these hinges allow for wide door access, making them suitable for standard doors. Installation is straightforward thanks to the wrap-around mount design and dowel fixing type. The milling depth and diameter are optimized at 7/16 inches and 1 3/8 inches, respectively, ensuring a precise fit. Additionally, the overlay design of 1 1/4 inches provides a sleek look that complements any cabinetry style. As a product of Salice, you can trust the quality and durability of the H106CUR3AD9 Silentia hinges. Suitable for standard use, these hinges are an excellent choice for builders and homeowners alike, combining functionality with sophisticated design.
Silentia CU Face Frame 2 Cams Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 15 mm
Drilling Distance: 3/32 in*
Drilling Pattern: 45
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only
Hinge Opening Angle: +106°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 1 1/4 in
Product #: H106CUR3AD9
Product number: H106CUR3AD9
Product №: H106CUR3AD9
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
