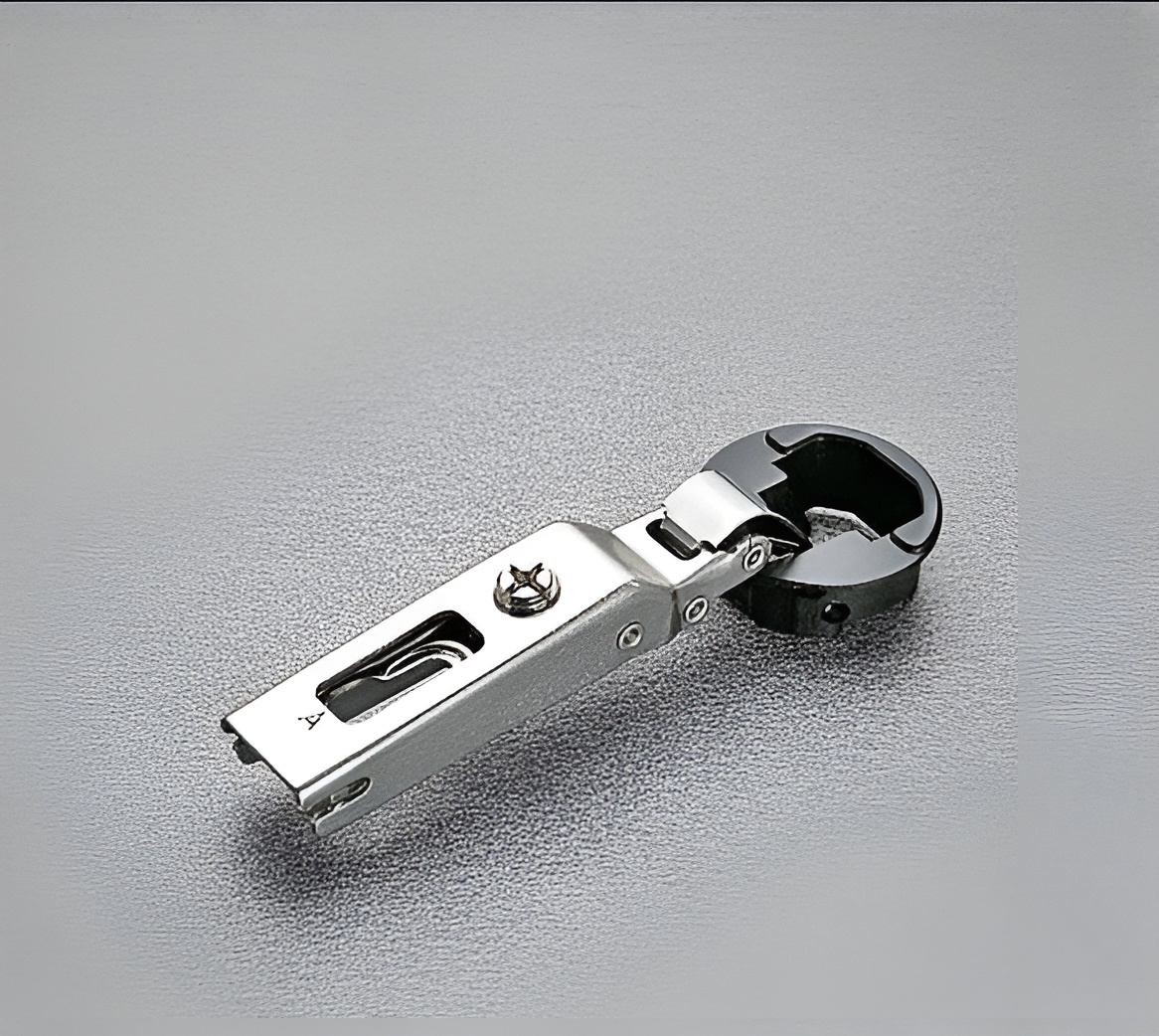

Richelieu H10C2C7A39 Hinges for Glass Doors offer a perfect blend of functionality and elegance, designed specifically for glass doors with a thickness ranging from 4 mm to 6 mm. Featuring a drilling distance on the door of 5.5 mm to 6.5 mm and a hole diameter of 26 mm, these hinges are versatile and easy to install. They are compatible with all traditional mounting plates from the series 200 as well as DIMI snap-on mounting plates, allowing for seamless integration into your existing setups. These self-closing hinges boast a hinge opening angle of +94°, making them ideal for full overlay door applications with a 0.75-inch overlay. Installation is streamlined, as the fixing through glass attachment is secured by a retainer, ensuring a robust and dependable connection. For added customization, cover caps are available for separate order, allowing you to enhance the aesthetic appeal of your installation. With a production time categorized as stock and the ability to ship via UPS, Richelieu H10C2C7A39 Hinges are a reliable choice for building professionals and discerning homeowners alike. Elevate your glass door solutions with these expertly designed hinges that prioritize both ease of use and durability.
200 Series - Hinges 94 for Glass Doors
Closing Mechanism: Spring Closing
Crank: 0 in*
Door Position: Full Overlay
Door Thickness: 5/32 to 1/4 in*
Drilling Distance: 5.5 to 6.5 mm
Hinge Opening Angle: +94°
Mechanism: Spring Closing
Milling Diameter: 1 1/32 in*
Overlay: 0.75 in
Product #: H10C2C7A39
Product number: H10C2C7A39
Product №: H10C2C7A39
Production Time: Stock
Unit 1: case - 150
Use Type: Glass
