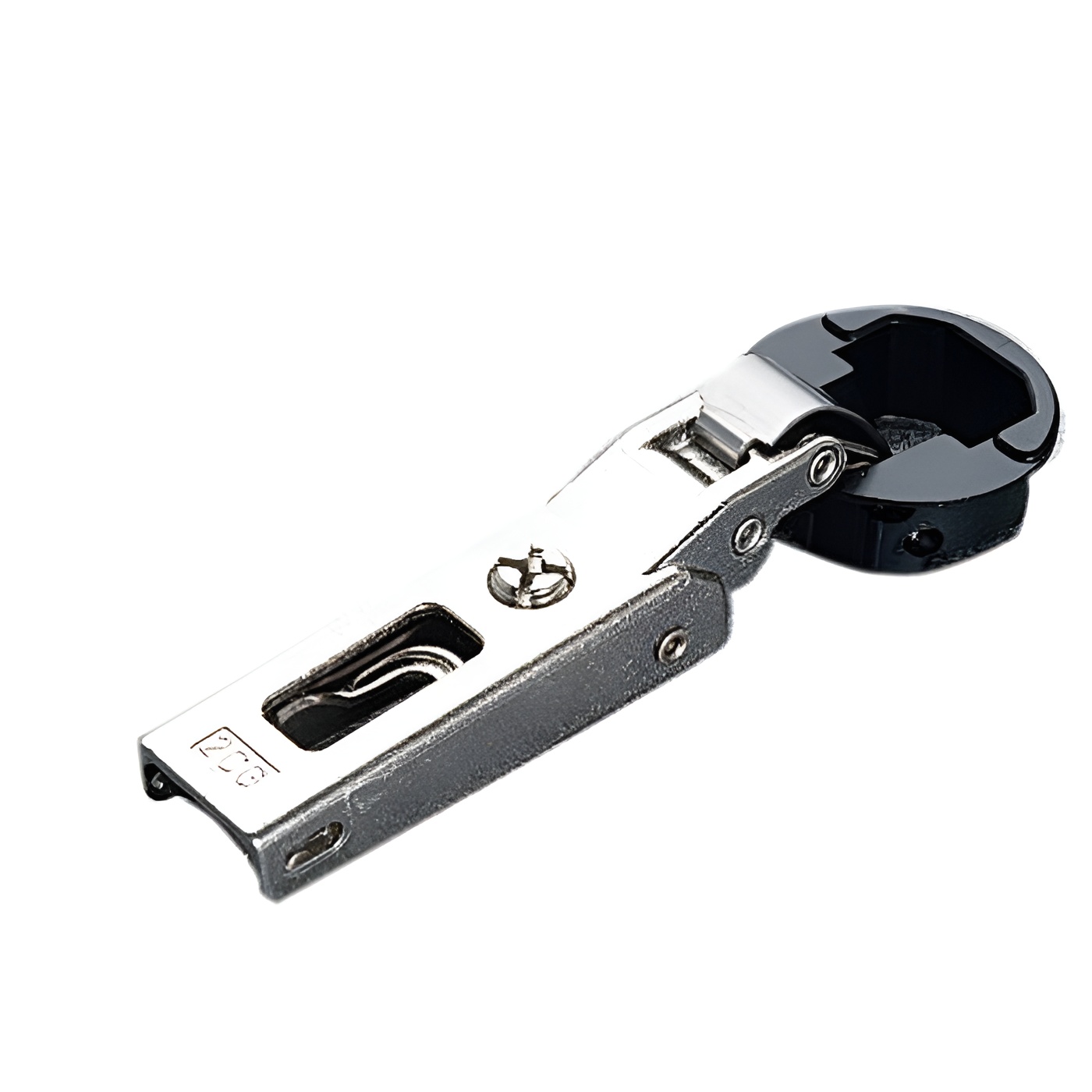

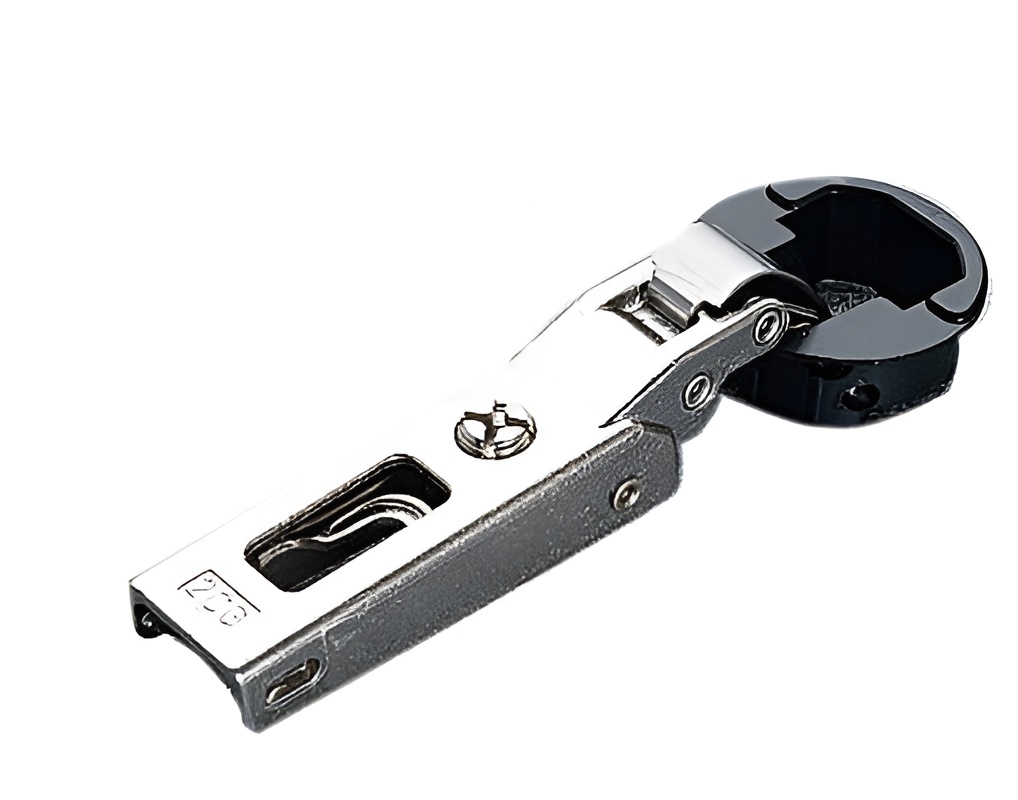

Richelieu H10C2C7G39 Hinges for Glass Doors offer an exceptional solution for glass door applications, combining functionality with a sleek design. Designed for glass thicknesses ranging from 4 mm to 6 mm, these hinges provide a secure and reliable fit, enhancing both aesthetics and performance. The drilling distance on the door ranges from 5.5 mm to 6.5 mm, accommodating various installation needs, while the hole diameter of 26 mm ensures compatibility with standard setups. These hinges feature a half overlay design, allowing for seamless integration with cabinetry. With a hinge opening angle of +94°, they provide ample access without compromising space. The self-closing mechanism, powered by a spring closing design, ensures that doors close smoothly and securely after use, promoting both convenience and safety. Compatible with traditional mounting plates from series 200 as well as DIMI snap-on mounting plates, the H10C2C7G39 is versatile and easy to install. Note that cover caps must be ordered separately, and fixing through glass attachment is achieved via a reliable retainer. With a production time of stock, these hinges can be shipped via UPS, making them an ideal choice for professionals looking for efficiency and quality in their projects.
200 Series - Hinges 94 for Glass Doors
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Door Position: Half Overlay
Door Thickness: 5/32 to 1/4 in*

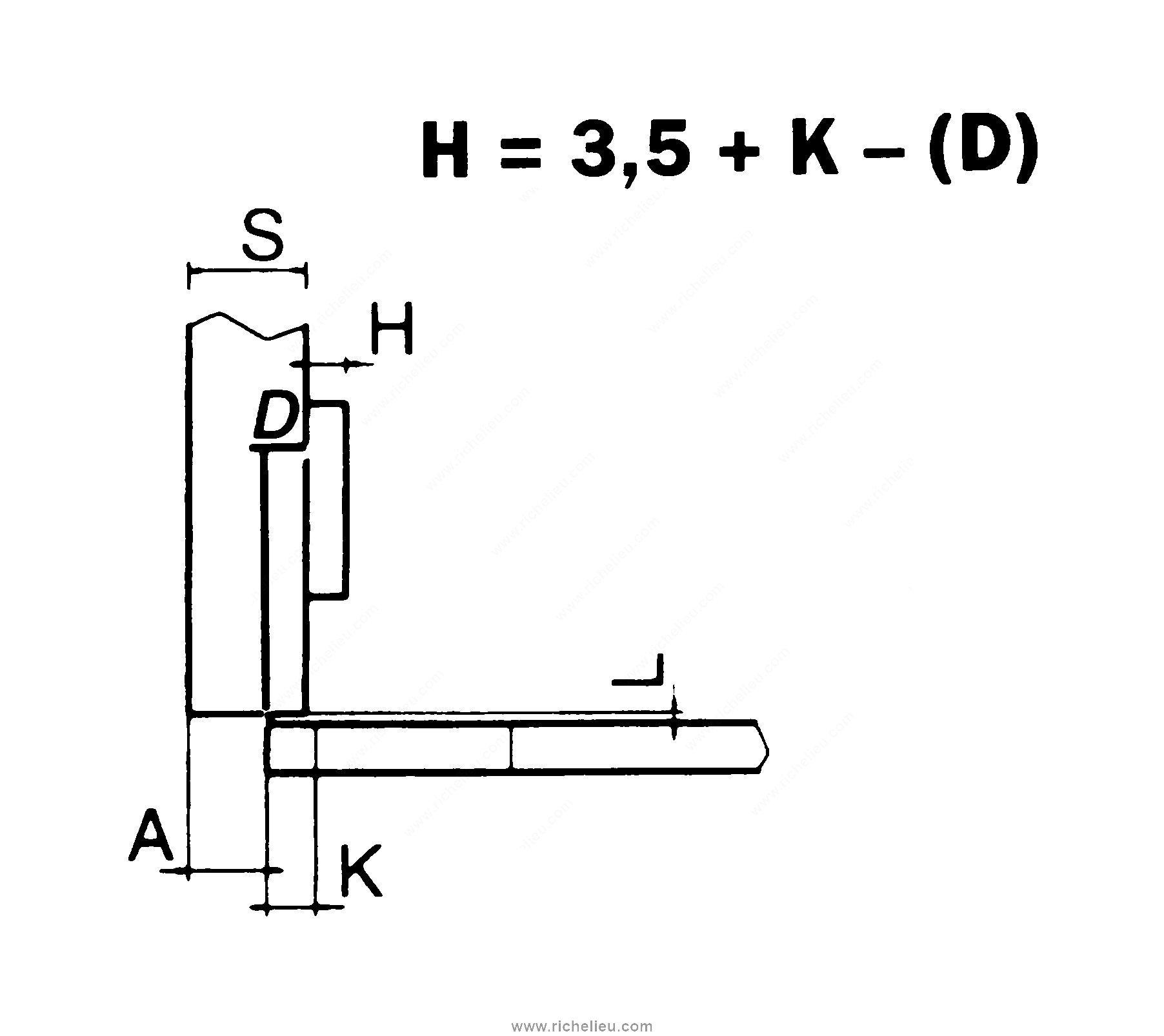

Drilling Distance: 5.5 to 6.5 mm
Hinge Opening Angle: +94°
Mechanism: Spring Closing
Milling Diameter: 1 1/32 in*
Overlay: 0.39 in
Product #: H10C2C7G39
Product number: H10C2C7G39
Product №: H10C2C7G39
Production Time: Stock
Unit 1: case - 150
Use Type: Glass
