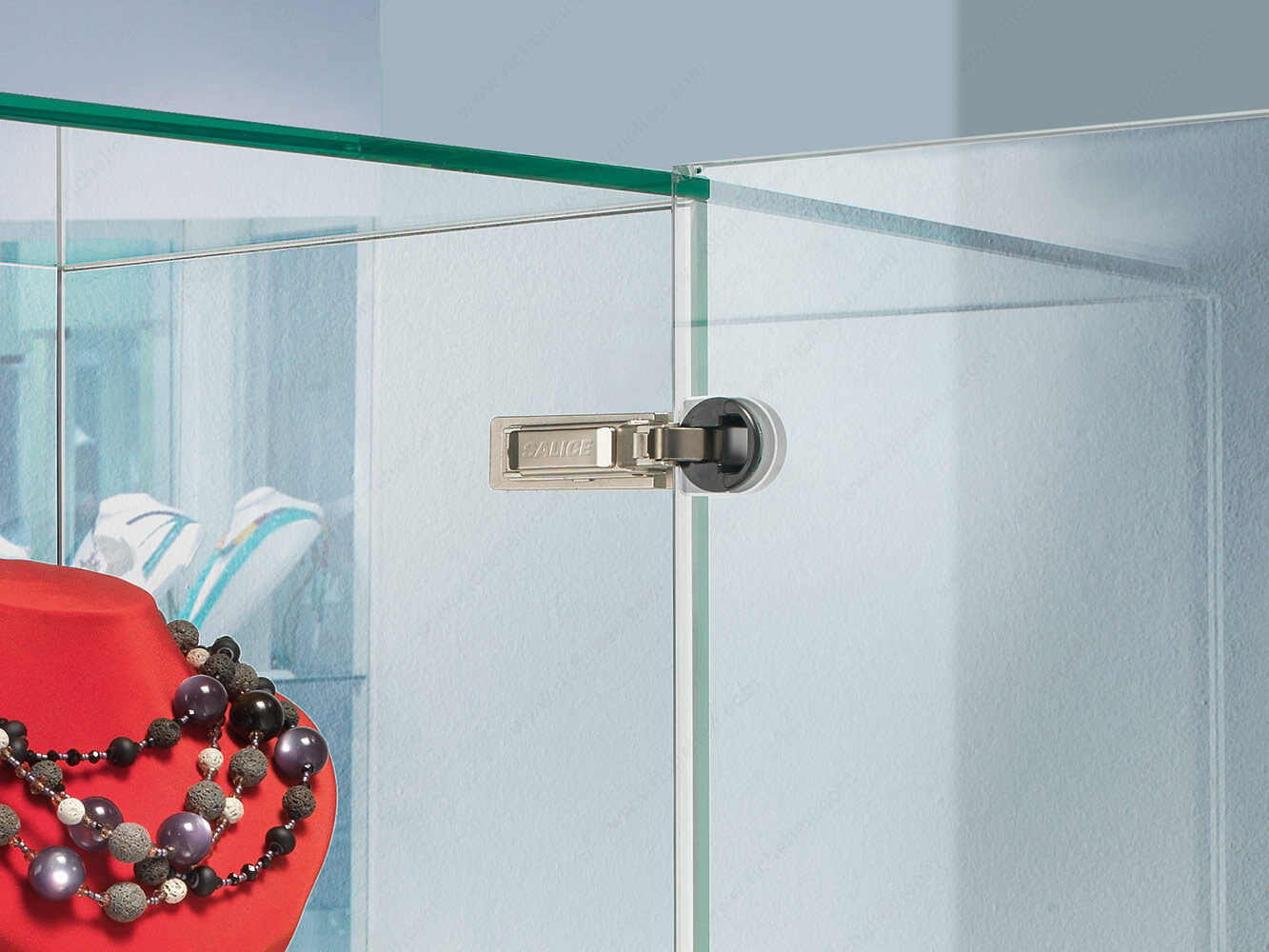

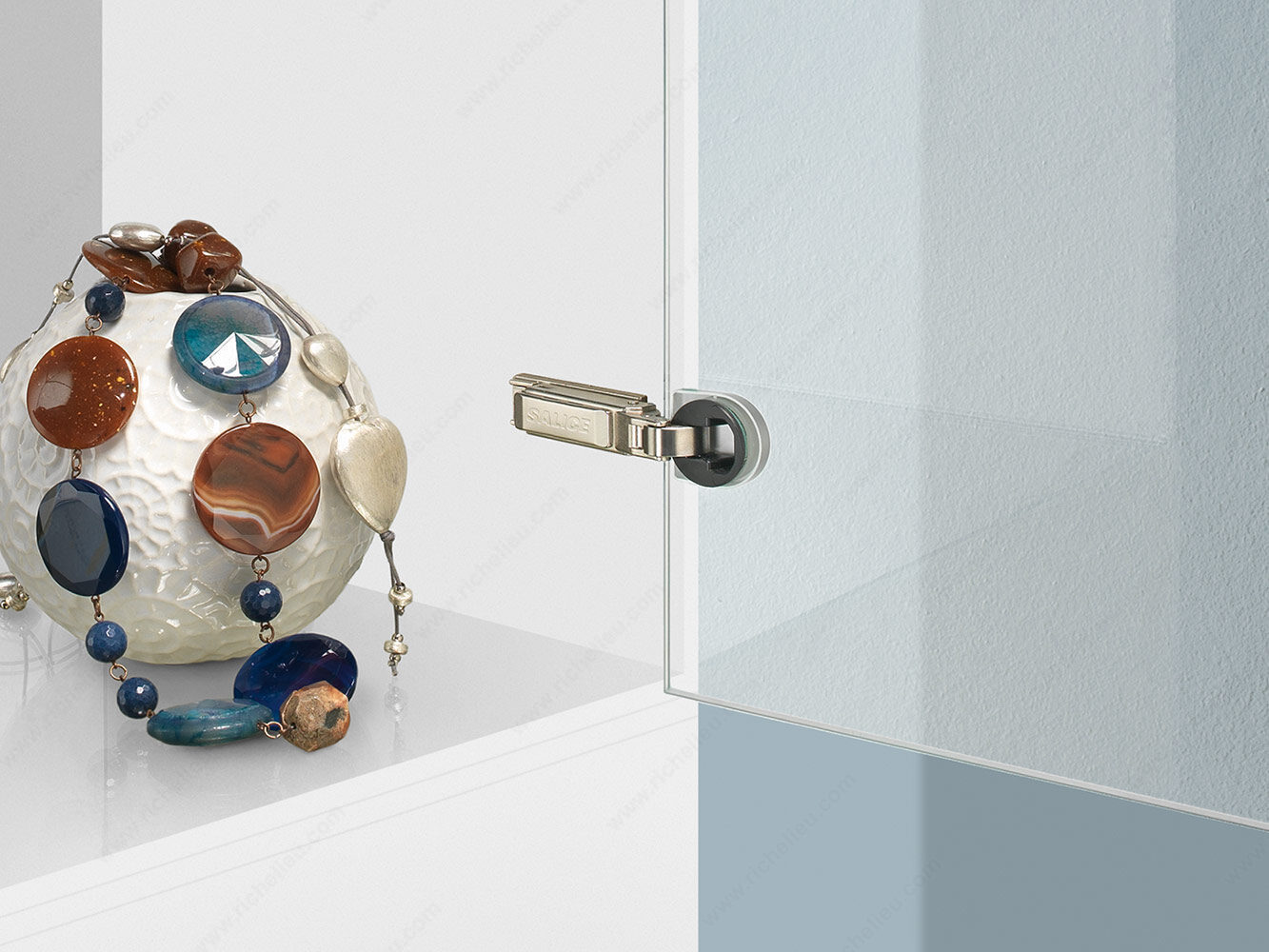

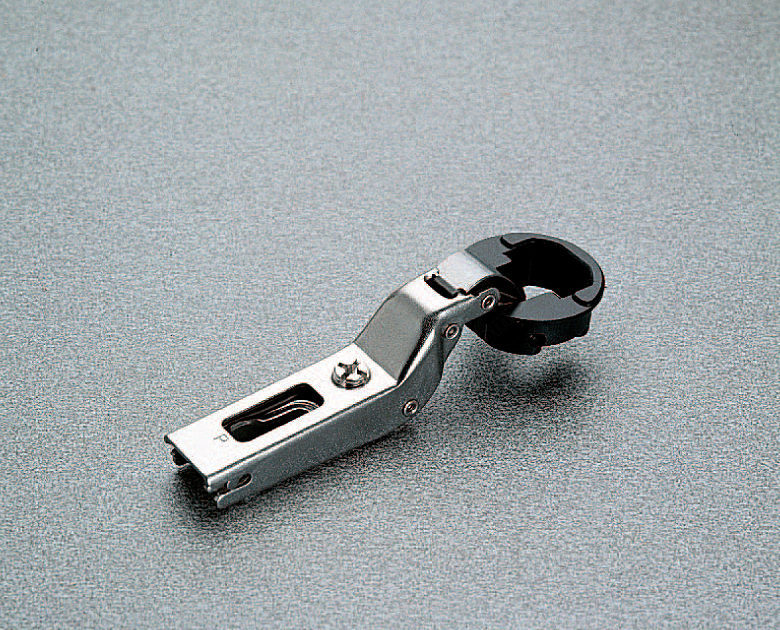

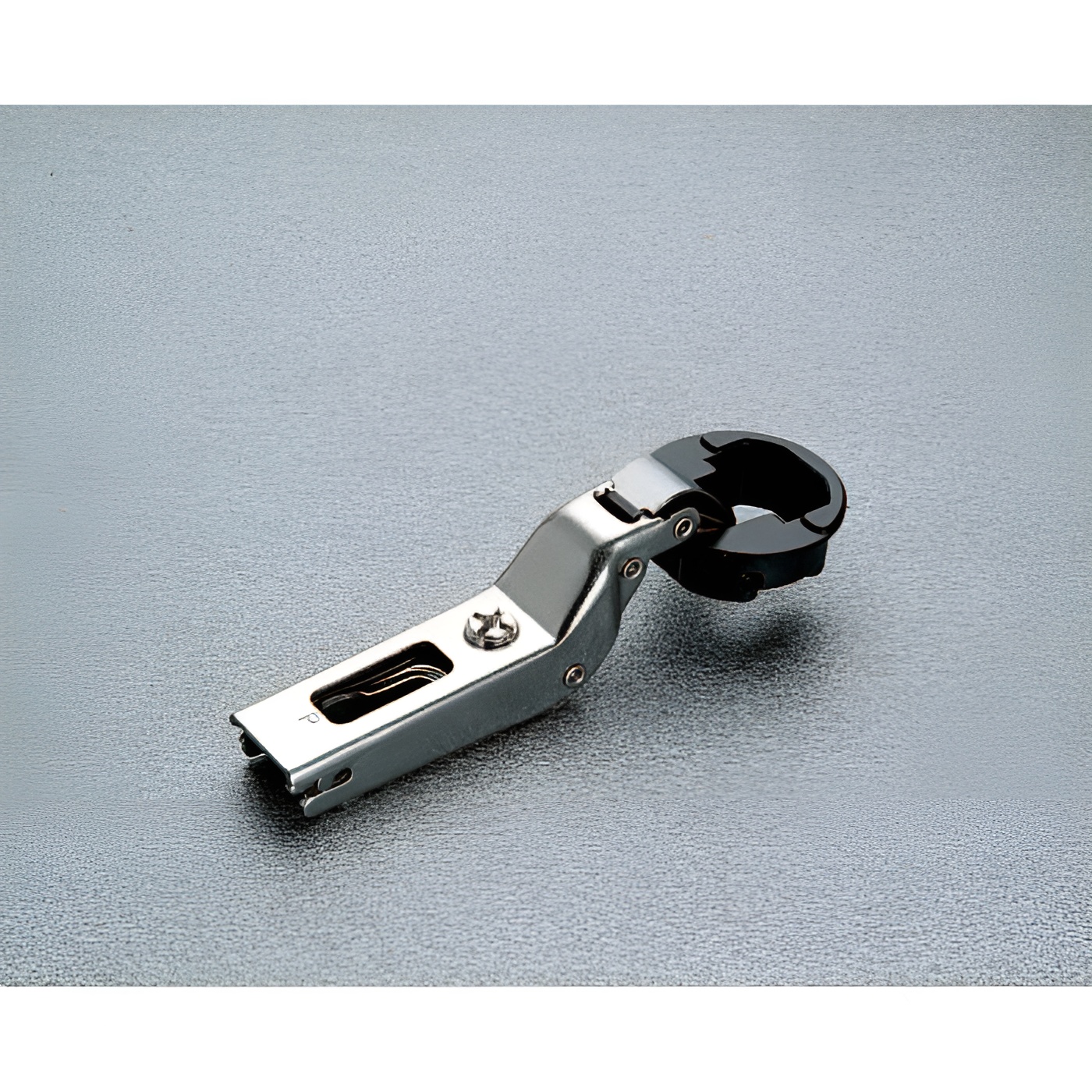

Richelieu H10C2C7P39 Hinges for Glass Doors offer an ideal solution for seamless glass door installations. Designed for glass thicknesses ranging from 4 mm to 6 mm, these hinges ensure a robust and secure fit, accommodating a drilling distance of 5.5 mm to 6.5 mm. The hole diameter measures 26 mm, which is compatible with both traditional mounting plates from the series 200 and DIMI snap-on mounting plates, enhancing versatility in various applications. One of the standout features of the H10C2C7P39 is its self-closing mechanism, providing convenience and safety for users. The hinge opens up to an impressive angle of +94°, making it suitable for inset door positions. Installation is made easy with fixing through glass attachment by retainer, ensuring a streamlined setup process. Please note that cover caps must be ordered separately to complete the look. With its stock production time and the ability to ship via UPS, these hinges are not only practical but also readily available for your projects. Elevate your glass door applications with Richelieu’s H10C2C7P39 hinges, combining functionality and style for a polished finish.
200 Series - Hinges 94 for Glass Doors
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Door Position: Inset
Door Thickness: 5/32 to 1/4 in*
Drilling Distance: 5.5 to 6.5 mm
Hinge Opening Angle: +94°
Mechanism: Spring Closing
Milling Diameter: 1 1/32 in*
Product #: H10C2C7P39
Product number: H10C2C7P39
Product №: H10C2C7P39
Production Time: Stock
Unit 1: case - 150
Use Type: Glass
