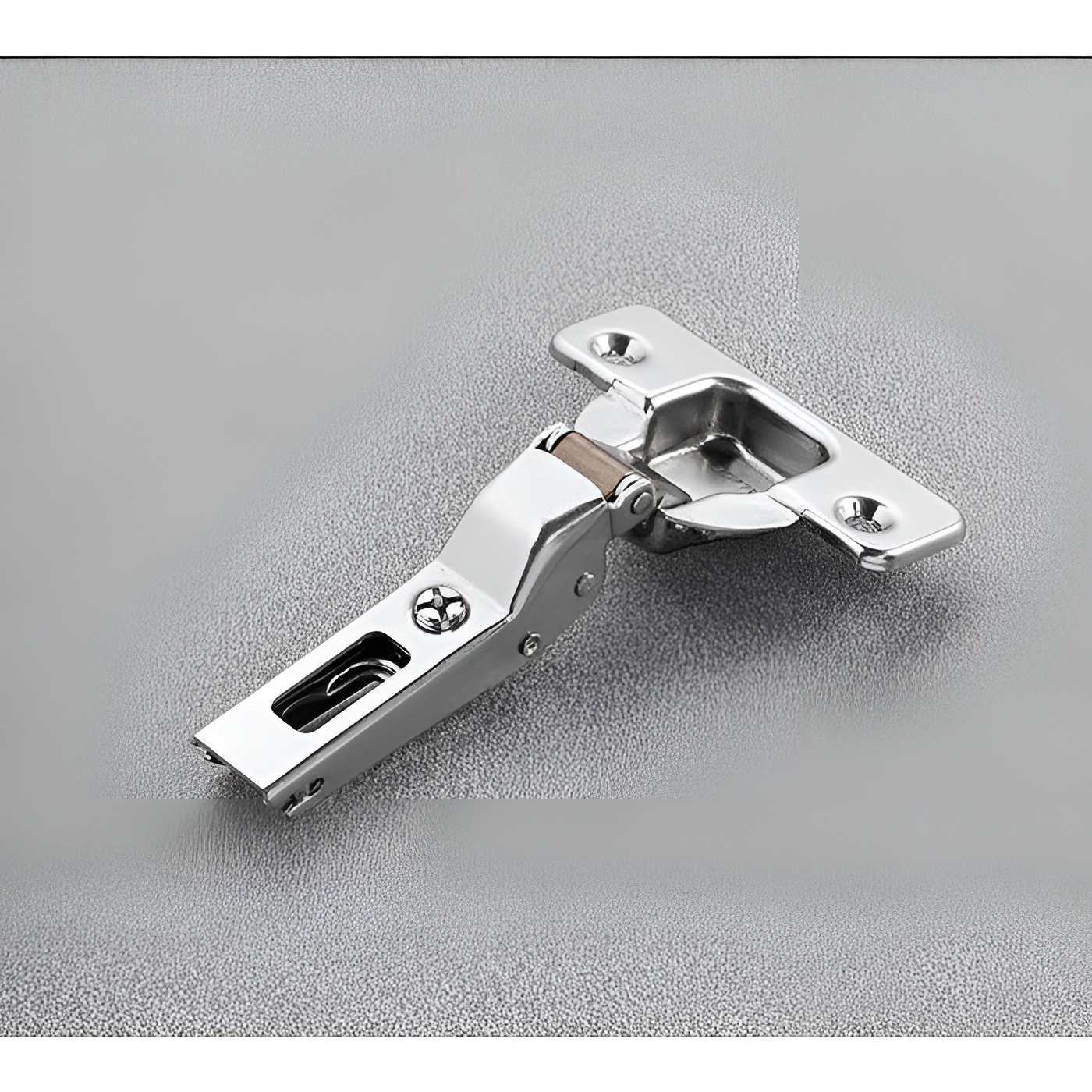

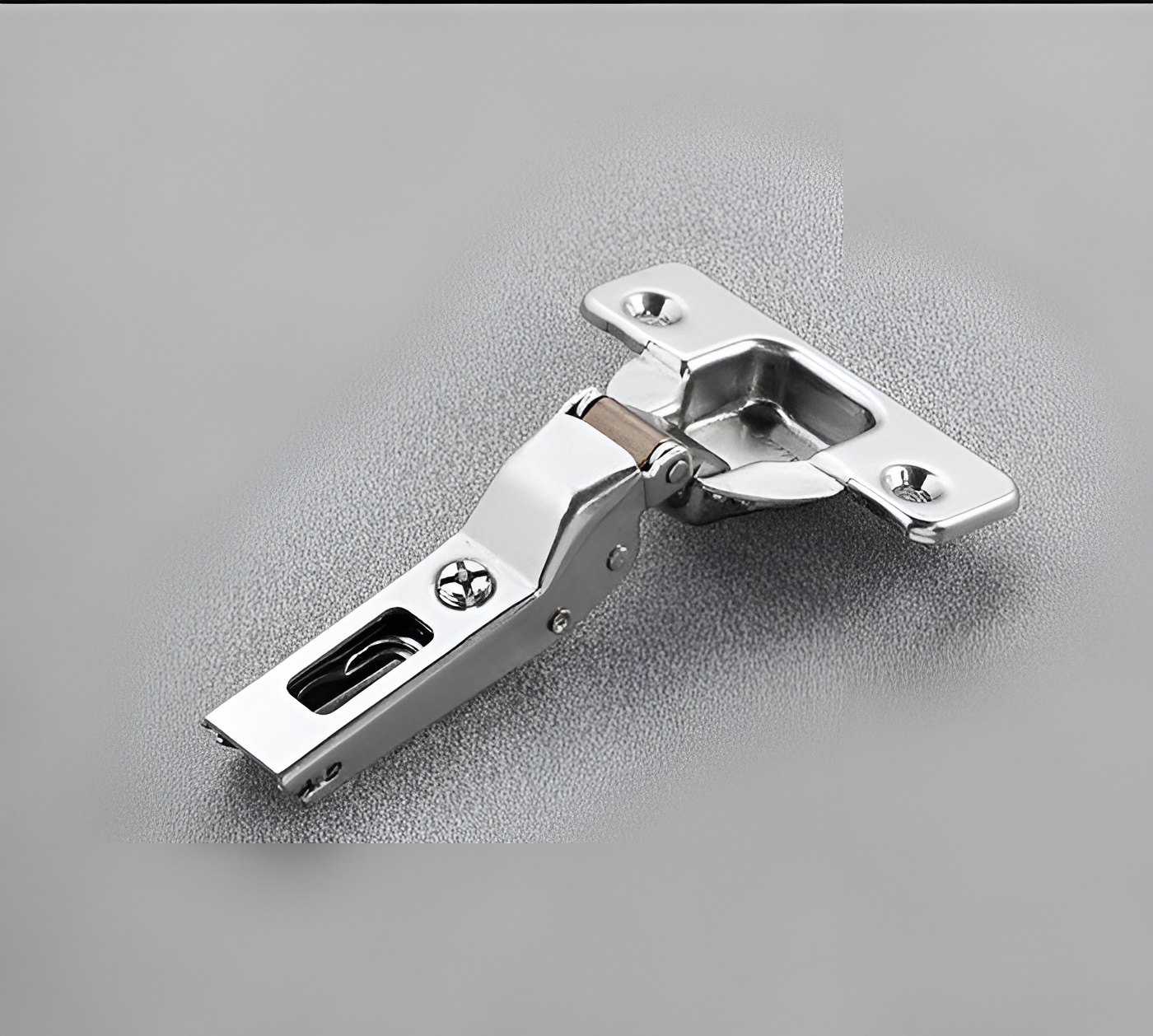

Richelieu H110C1P6G99 Concealed 105 Hinge for Thin Door offers a seamless solution for your frameless cabinet needs. This self-closing screw-on hinge is designed specifically for half-overlay doors, ensuring a clean and unobtrusive appearance. With an impressive opening angle of +105°, it provides excellent accessibility while remaining discreetly hidden. Constructed with a nickel finish, the hinge not only enhances durability but also adds a touch of sophistication to your cabinetry. Its spring closing mechanism ensures that doors close securely, offering both convenience and functionality. With a load capacity of 10 lbs, the hinge is suitable for standard, thin frame, and special doors alike. Installation is straightforward with a drilling distance of 1/8 to 1/4 inches and a milling diameter of 1 3/8 inches, making it adaptable to various setups. The milling depth of 5/16 inches allows for easy integration into your projects. Designed for quick shipping via UPS, the Richelieu H110C1P6G99 is a stock product, ensuring you won’t have to wait long to enhance your cabinetry. For building professionals and discerning homeowners alike, this hinge combines style and practicality, making it an essential addition to any kitchen or cabinetry project.
100 Series - Concealed Hinge 105
Important information
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 8 mm
Milling Diameter: 35 mm
Overlay: 0.375 in
Product #: H110C1P6G99
Product number: H110C1P6G99
Product №: H110C1P6G99
Production Time: Stock
Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door, Thin Frame Door, Special
