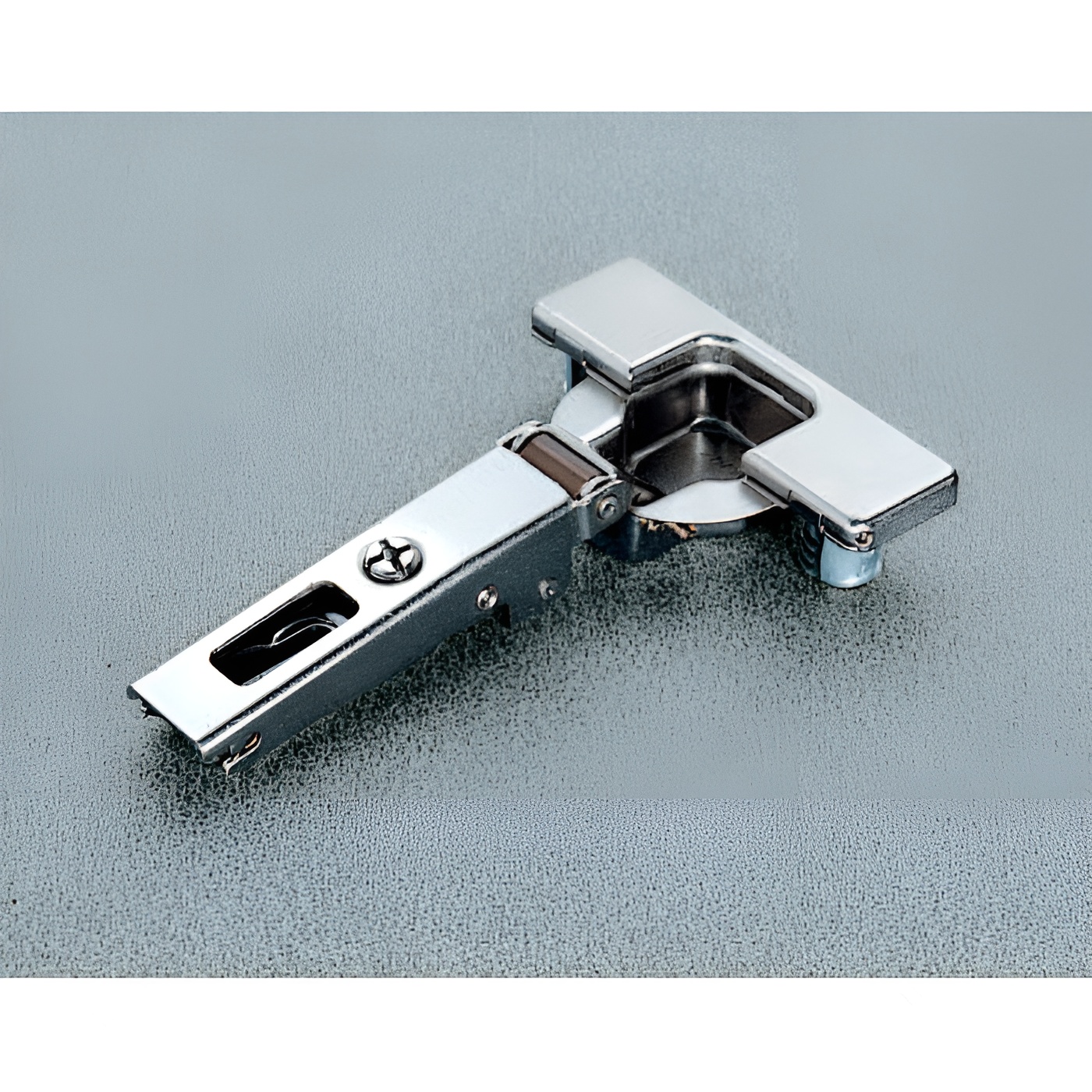

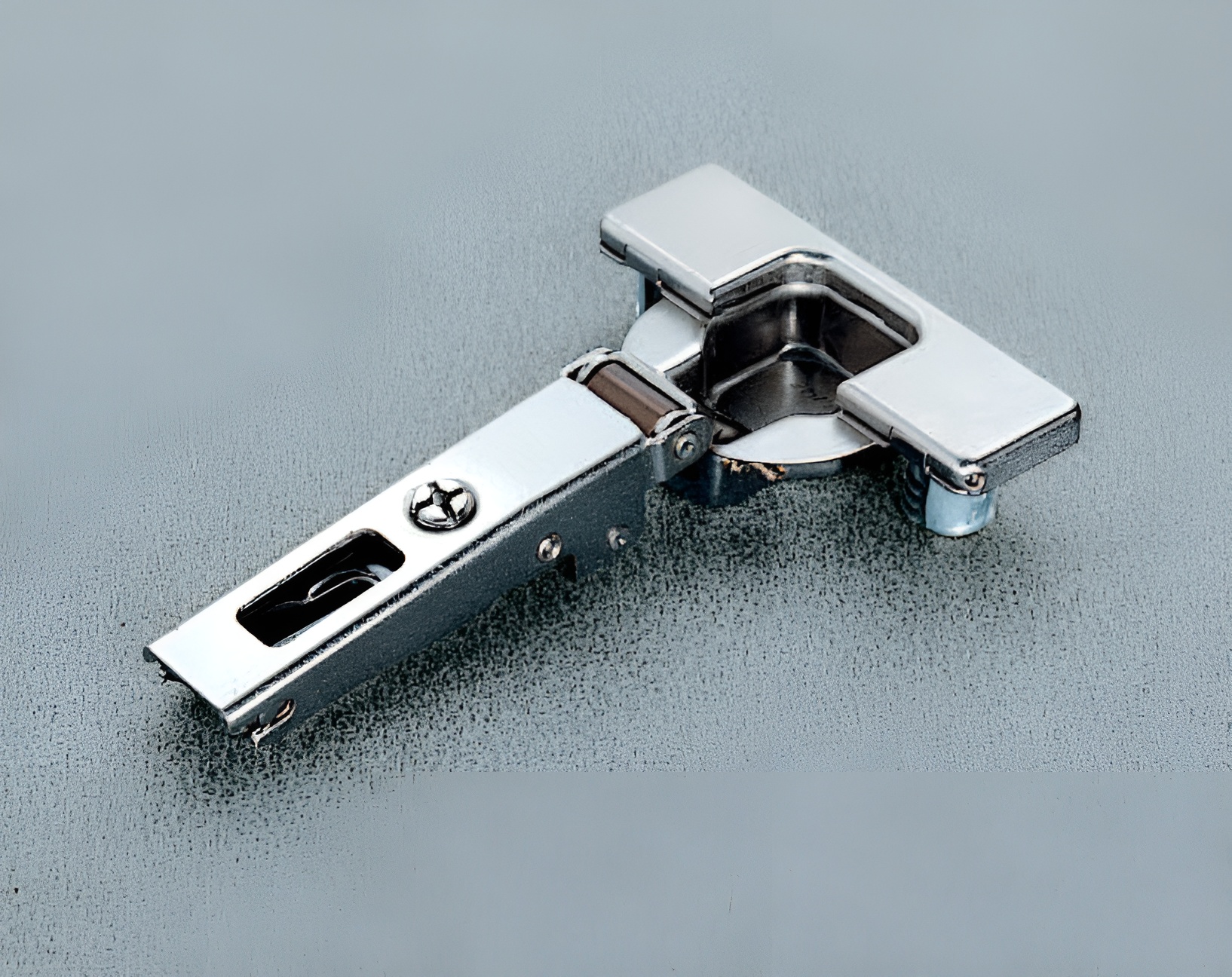

Richelieu H110C2J6A99 Series 200 Concealed Hinges offer an integrated solution for projects requiring concealed hinges. Designed by Salice, these hinges provide independent and compensation adjustments, ensuring precise alignment and functionality. The built-in safety stop device allows for both symmetrical and asymmetrical applications, enhancing versatility in various door setups. These hinges support a full overlay door position and accommodate door thicknesses ranging from 5/8 to 1 1/32 inches, making them suitable for a variety of cabinetry and furniture styles. The toolless fixing type simplifies installation, while the snap-on mounting feature reduces assembly time. With a hinge opening angle of +110°, these hinges allow for easy access and functionality. The milling depth of 7/16 inches and diameter of 1 3/8 inches provide the necessary specifications for seamless integration into your designs. Finished in a sleek nickel, the Richelieu Series 200 hinges not only perform well but also add a polished look to any project. Ideal for standard doors, these hinges are in stock and ready to ship via UPS, making them a reliable choice for building professionals and knowledgeable homeowners alike. Upgrade your cabinetry with the Richelieu H110C2J6A99 for superior performance and aesthetic appeal.

200 Series - Concealed Hinge 110

Resources

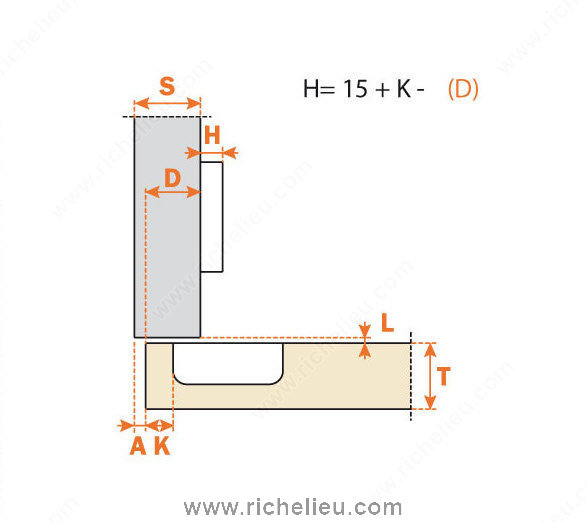

• Line art
