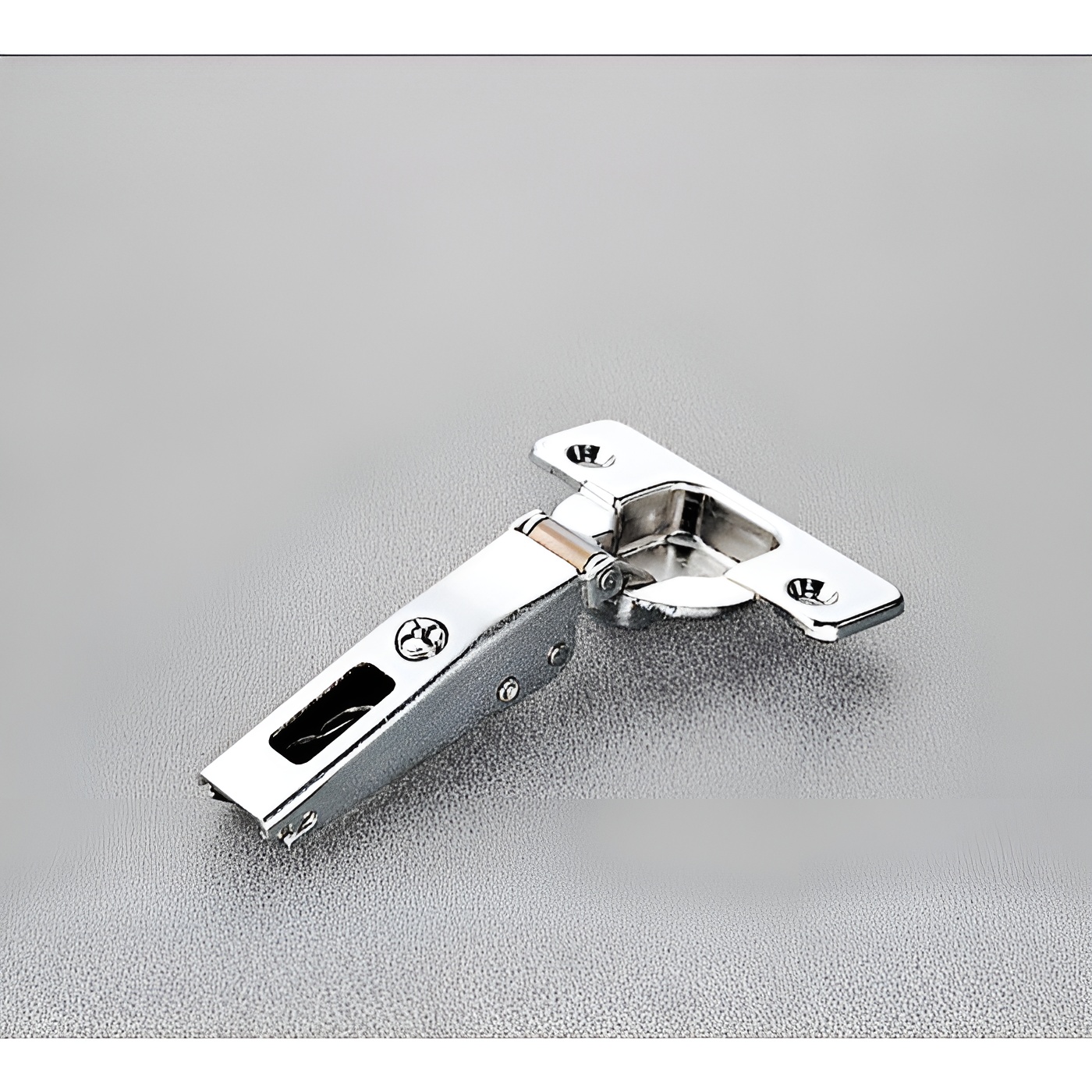

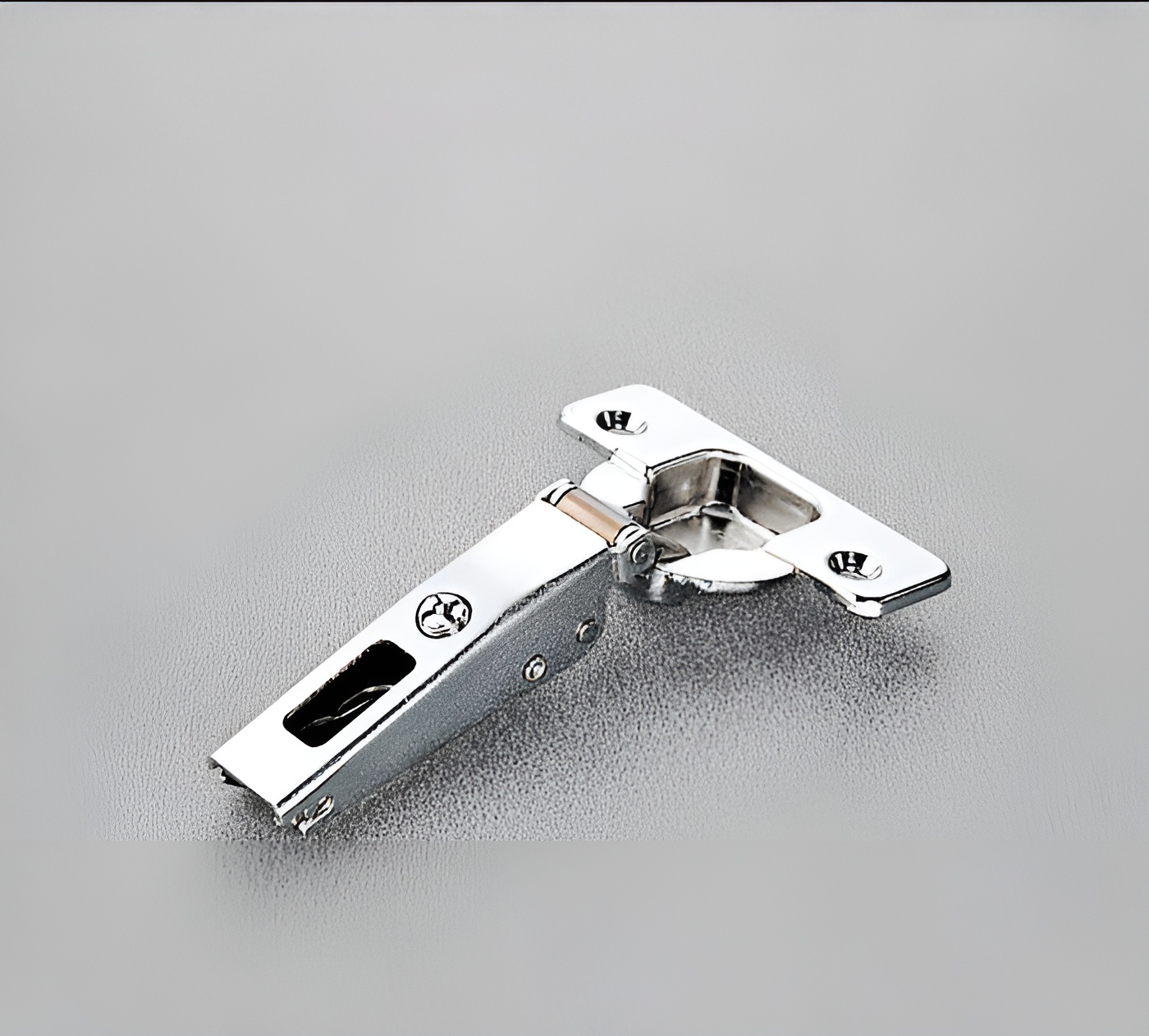

Richelieu H110C2J6D99 Series 200 Concealed Hinges - 110 delivers a sophisticated solution for applications requiring concealed hinges. This integrated system from Salice is designed for both symmetrical and asymmetrical installations, featuring independent and compensation adjustments that ensure perfect alignment every time. Constructed for standard doors, these hinges boast a generous opening angle of +110°, making them ideal for spaces where maximum access is crucial. The toolless fixing type simplifies installation, while the snap-on mounting feature allows for quick adjustments and replacements, saving valuable time on the job. With a robust nickel finish, these hinges not only enhance the aesthetic appeal but also provide durability for long-lasting performance. They accommodate a door thickness ranging from 5/8 to 1 1/32 inches, along with an overlay of 3/16 inches, making them versatile for various applications. The milling diameter of 1 3/8 inches and milling depth of 7/16 inches ensure compatibility with a range of door designs. Engineered with a spring closing mechanism and a safety stop device, the Richelieu H110C2J6D99 combines functionality with safety. Whether you're a building professional or a knowledgeable homeowner, this hinge system is a reliable choice for your next project.

200 Series - Concealed Hinge 110

Resources

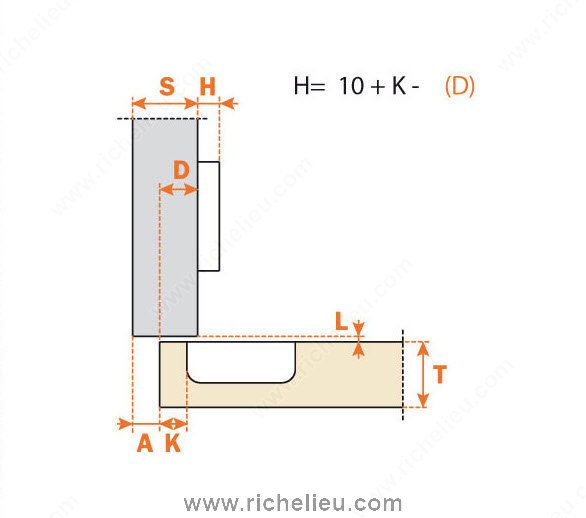

• Line art
