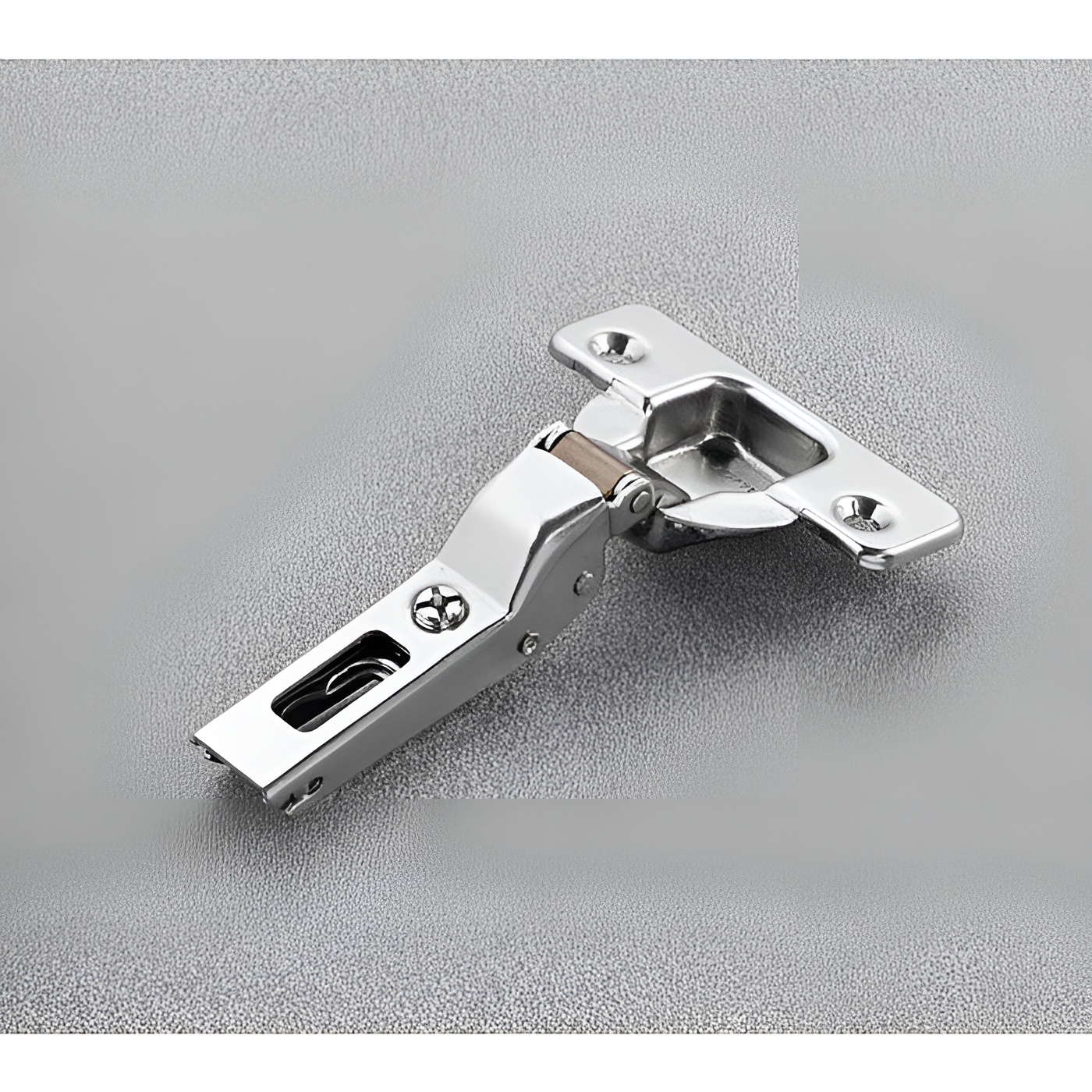

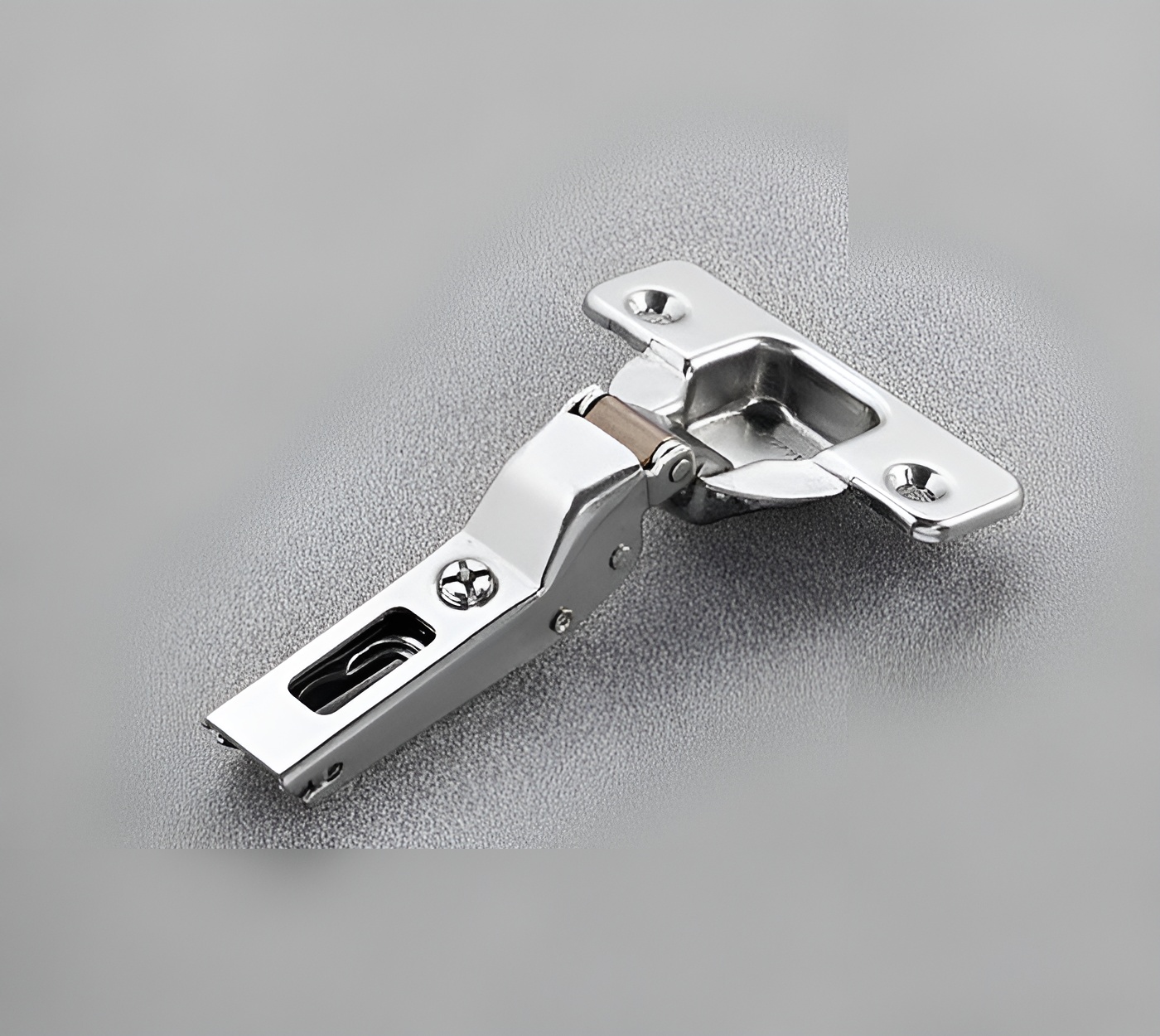

Richelieu H110C2J6G99 Series 200 Concealed Hinges - 110 offer an exceptional solution for projects requiring discreet hinge integration. Designed by Salice, this series features independent and compensation adjustment capabilities, ensuring precise alignment and seamless door operation. With a hinge opening angle of +110°, these hinges provide ample access while maintaining a sleek appearance. The H110C2J6G99 hinges are equipped with a safety stop device, making them suitable for both symmetrical and asymmetrical applications. Their snap-on mounting design allows for quick and easy installation, enhancing efficiency on the job. These hinges are adaptable to all Domi series quick-release mounting plates, providing further versatility in various setups. Constructed for standard doors, these hinges accommodate a door thickness ranging from 5/8 to 1 1/32 inches and feature a milling depth of 7/16 inches with a diameter of 1 3/8 inches. The half overlay design and a subtle finish in nickel add a touch of sophistication to any cabinetry or furniture design. Whether you are a building professional or a knowledgeable homeowner, the Richelieu H110C2J6G99 Series 200 Concealed Hinges are an ideal choice for achieving both functionality and aesthetic appeal in your projects.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H110C2J6G99
Product number: H110C2J6G99
Product №: H110C2J6G99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
