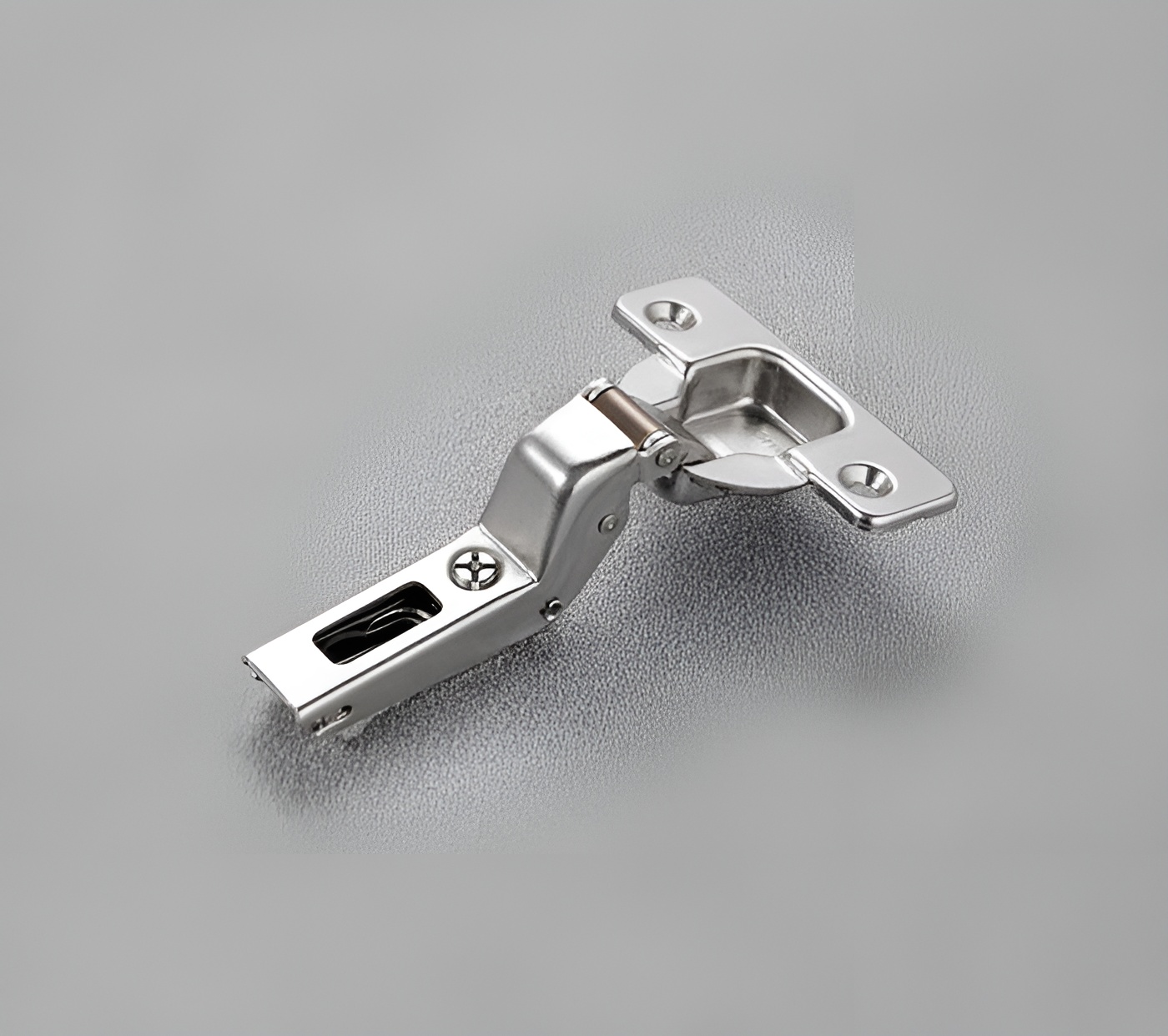

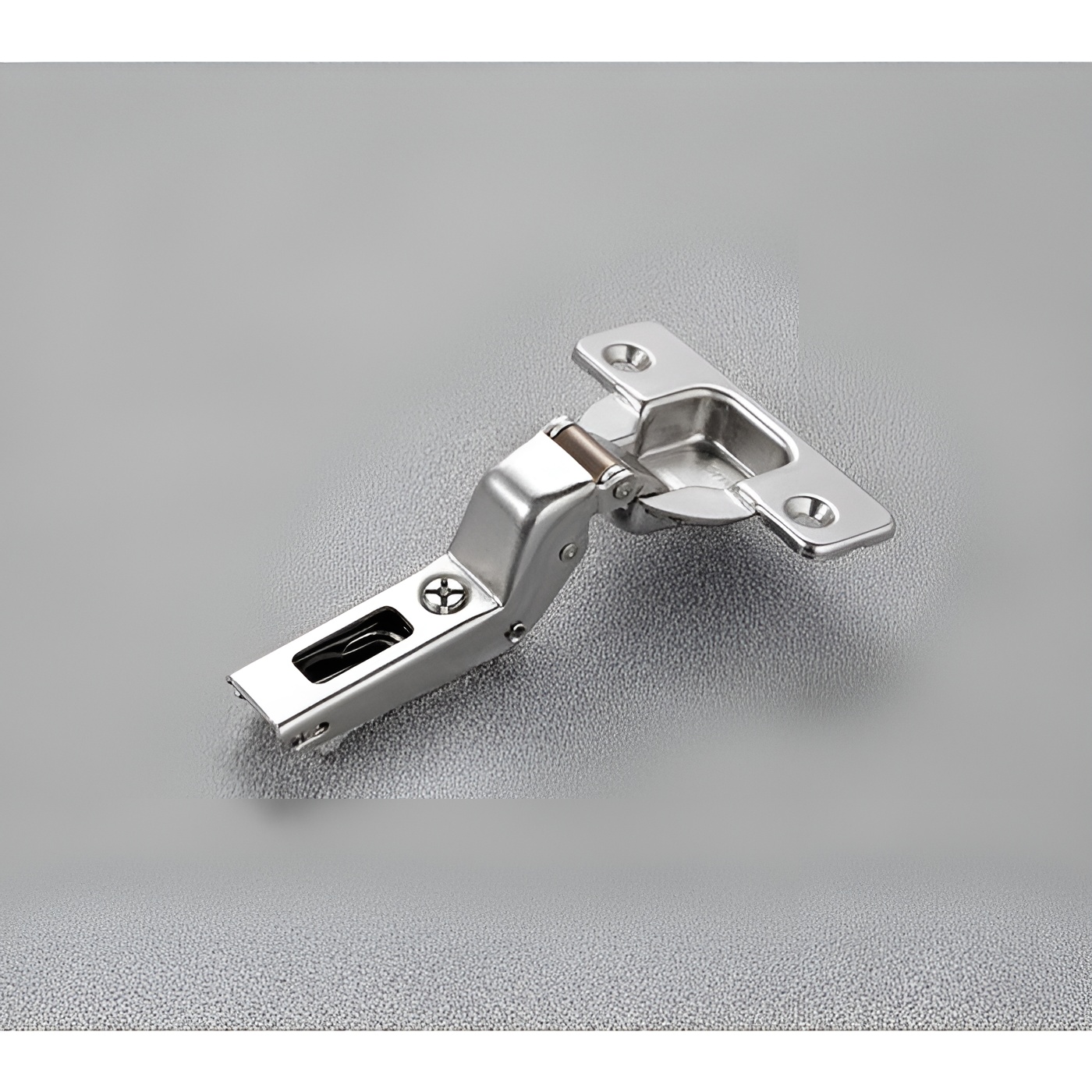

Richelieu H110C2J6P99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for achieving seamless door integration in various applications. Designed for inset doors, these hinges are part of the Salice series, renowned for their reliability and innovative features. With an impressive hinge opening angle of +110°, the H110C2J6P99 hinges facilitate smooth operation while maintaining a stylish, concealed appearance. Their spring-closing mechanism ensures doors close securely every time, enhancing functionality. The independent and compensation adjustment feature allows for precise alignment, making installation easier and more efficient. These toolless fixing hinges are adaptable to all Domi series quick-release mounting plates, streamlining the installation process. The nickel finish adds a touch of elegance, while the capacity to accommodate door thickness ranging from 5/8 to 1 1/32 inches ensures versatility across various projects. The milling depth of 7/16 inches and diameter of 1 3/8 inches provide the necessary specifications for a robust installation. Whether you are a building professional or a knowledgeable homeowner, Richelieu H110C2J6P99 Series 200 Concealed Hinges deliver quality and performance, making them an essential choice for standard doors. Experience the perfect blend of functionality and aesthetics with these expertly crafted hinges.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.0781 in
Product #: H110C2J6P99
Product number: H110C2J6P99
Product №: H110C2J6P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
