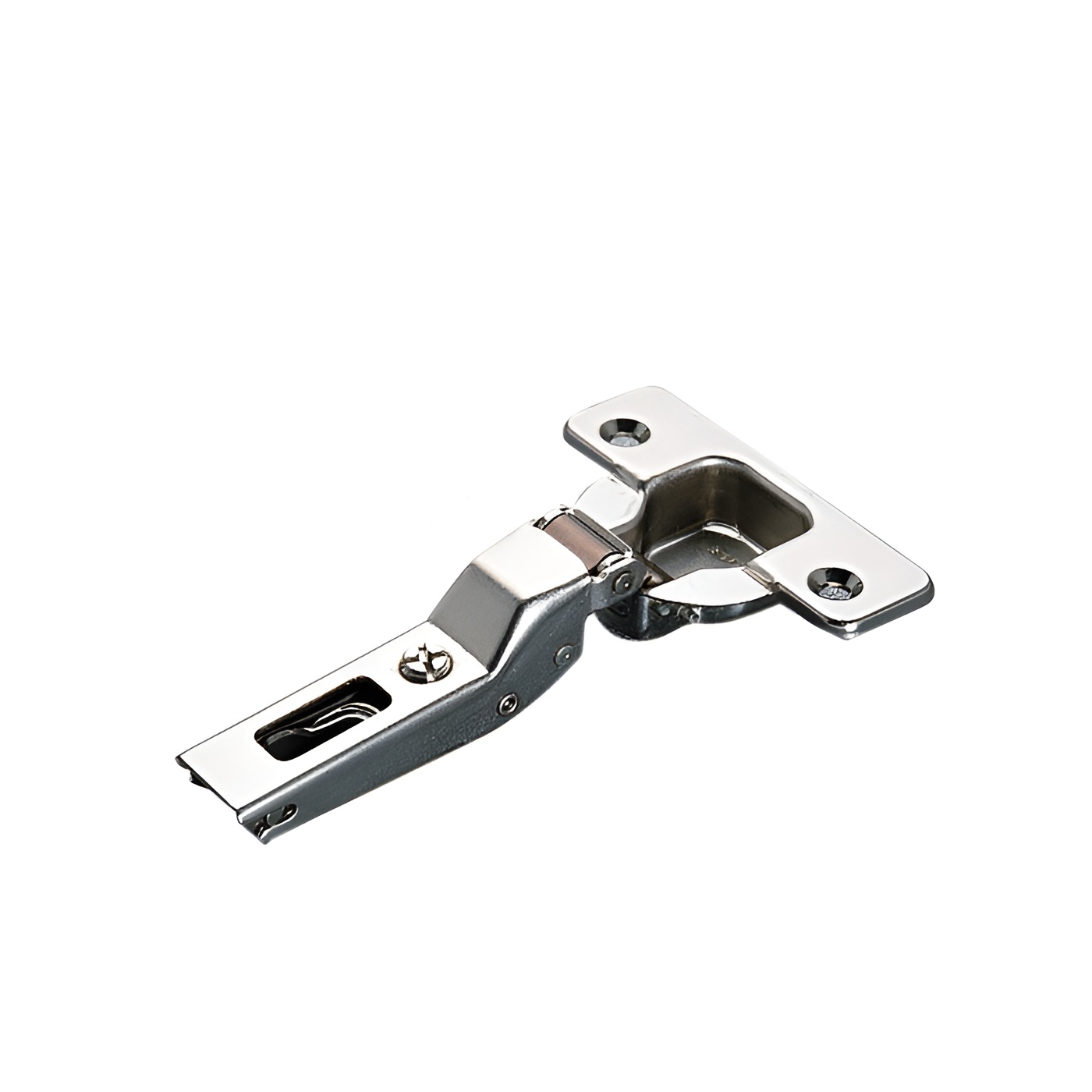

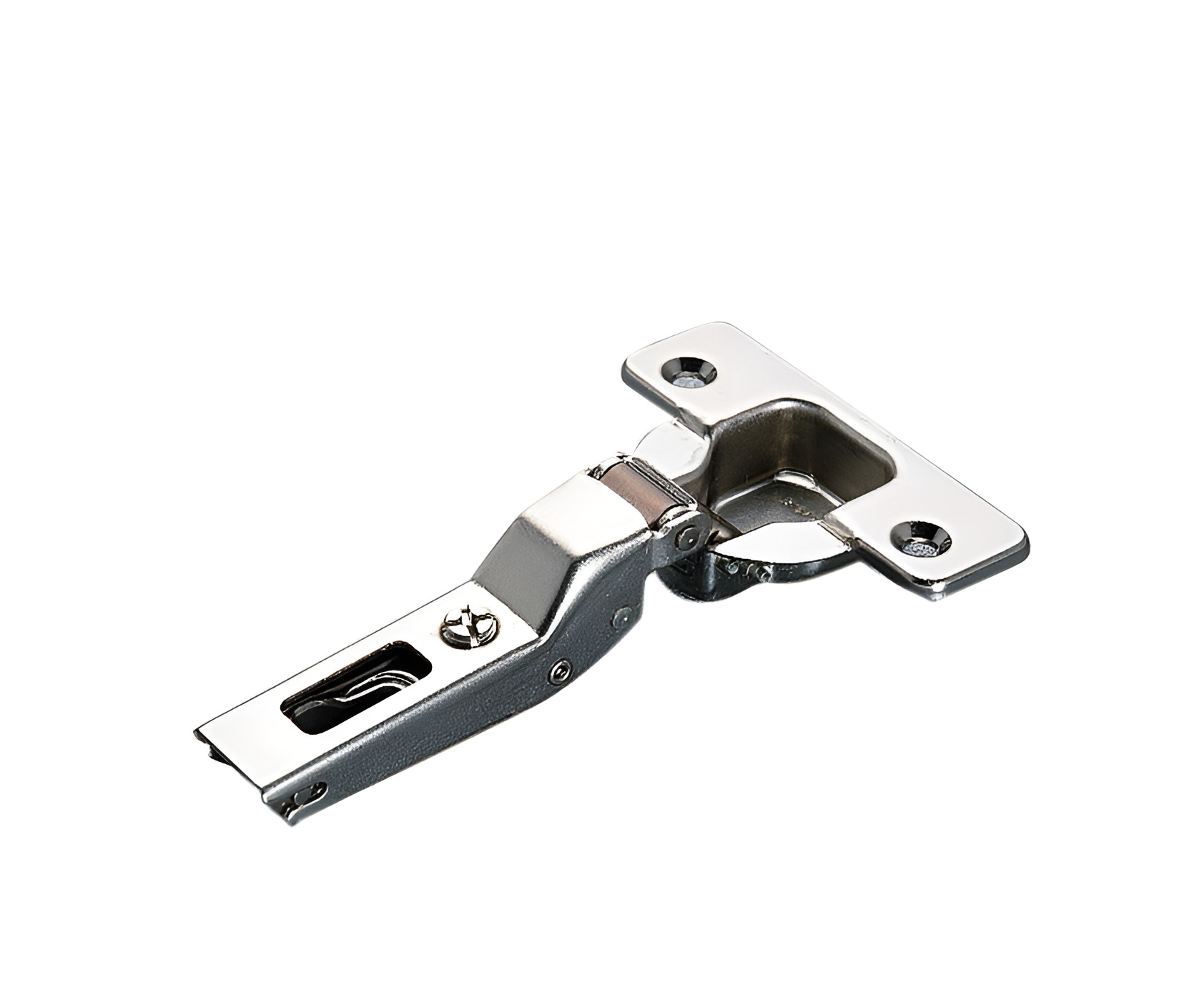

Richelieu H110C2P4G99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for applications requiring concealed hinges. This innovative system by Salice is designed with both functionality and aesthetics in mind, ensuring seamless integration into your cabinetry. A standout feature of these hinges is their independent and compensation adjustment, allowing users to achieve precise alignment and fit. The built-in safety stop device enhances stability, accommodating both symmetrical and asymmetrical door setups. Installation is made effortless with snap-on mounting, and the hinges are compatible with all Domi series quick-release mounting plates, providing flexibility in design. Suitable for half overlay doors with a thickness ranging from 5/8 to 1 1/32 inches, these hinges support a hinge opening angle of +110°, making them ideal for standard door applications. The nickel finish adds a touch of elegance, while screw-on fixing ensures a secure and reliable attachment. With a milling depth of 7/16 inches and a diameter of 1 3/8 inches, these hinges are engineered for durability and ease of use. Richelieu H110C2P4G99 hinges are a stock item, ready to ship via UPS, making them a practical choice for professionals and knowledgeable homeowners alike. Elevate your cabinetry with these expertly crafted concealed hinges.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H110C2P4G99
Product number: H110C2P4G99
Product №: H110C2P4G99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
