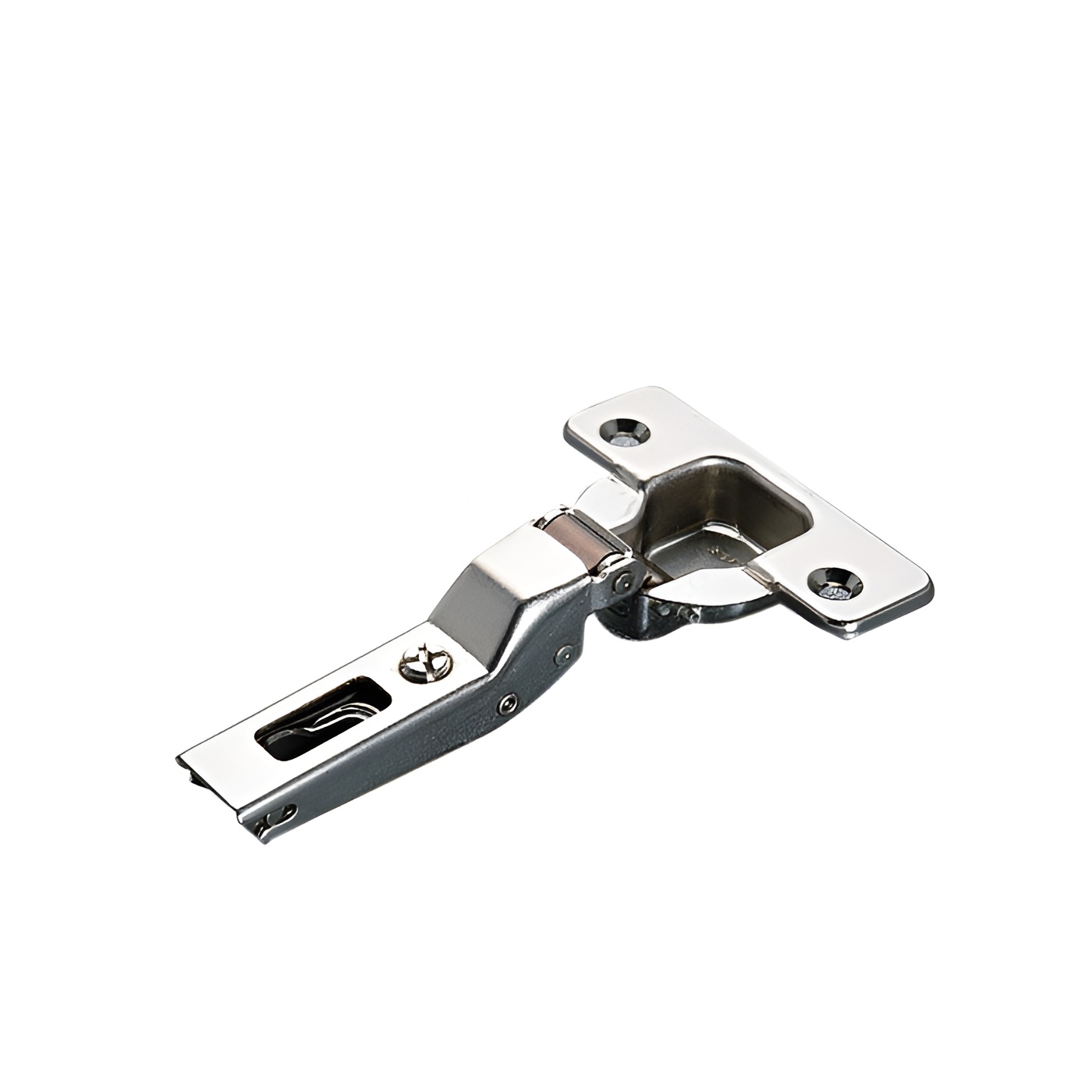

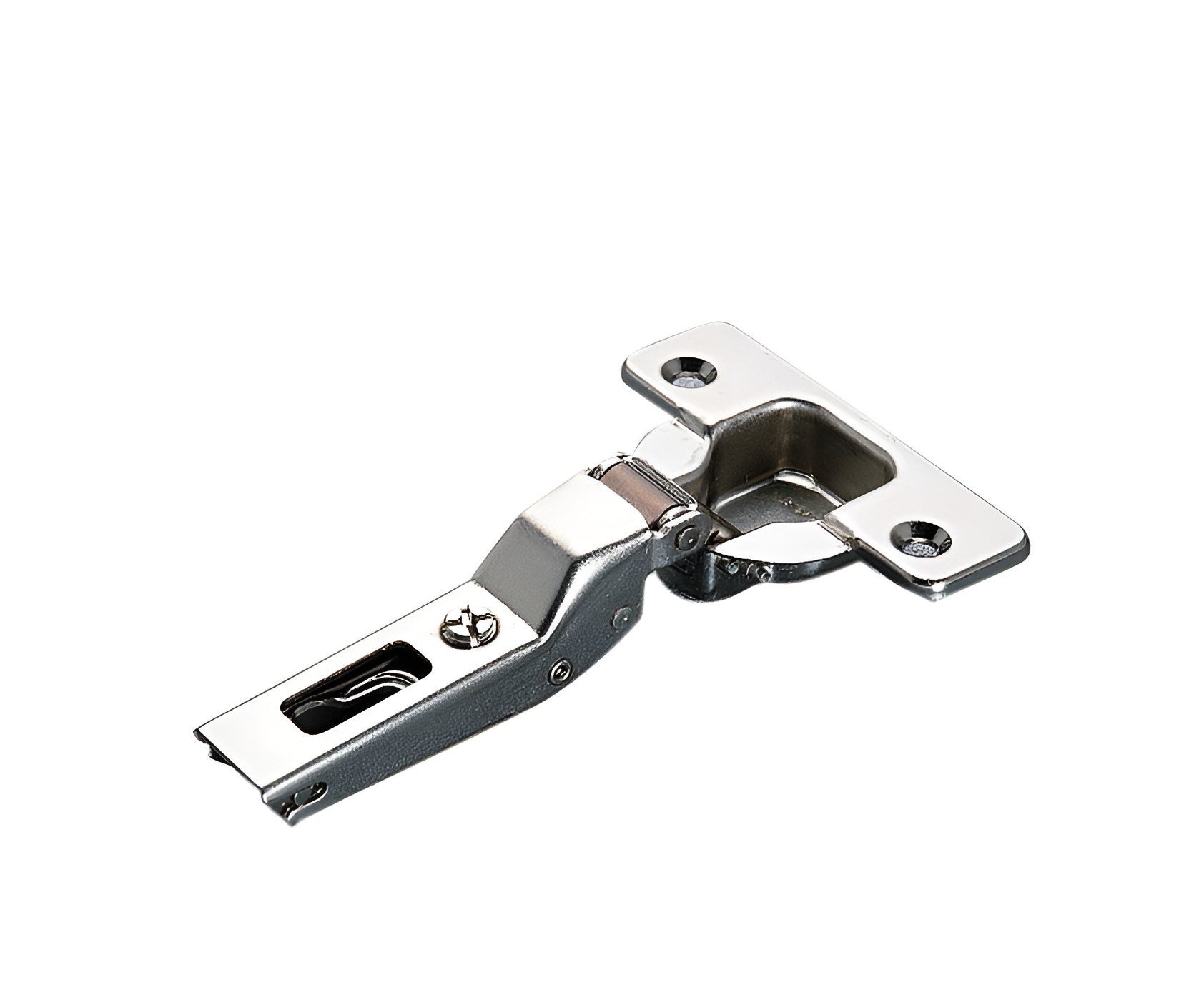

Richelieu H110C2P4P99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for applications requiring concealed hinges. This innovative hinge system is designed to accommodate a wide range of door thicknesses, specifically from 5/8 to 1 1/32 inches, making it versatile for various projects. The hinges feature a free-swing mechanism and a remarkable opening angle of +110°, allowing for smooth and efficient door operation. One of the standout attributes of this hinge series is its independent and compensation adjustment, ensuring precise alignment and functionality. The integrated safety stop device, compatible with both symmetrical and asymmetrical designs, adds an extra layer of reliability. Installation is a breeze thanks to the snap-on mounting feature, which is adaptable to all Domi series quick-release mounting plates. Constructed with a sleek nickel finish, these hinges not only perform excellently but also enhance the aesthetic appeal of your doors. The milling specifications include a depth of 7/16 inches and a diameter of 1 3/8 inches, with an overlay of 21/32 inches. Designed for standard doors, the H110C2P4P99 hinges are a stock item, available for quick shipping via UPS. Upgrade your projects with the durability and finesse of Richelieu's concealed hinges.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0 in
Product #: H110C2P4P99
Product number: H110C2P4P99
Product №: H110C2P4P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
