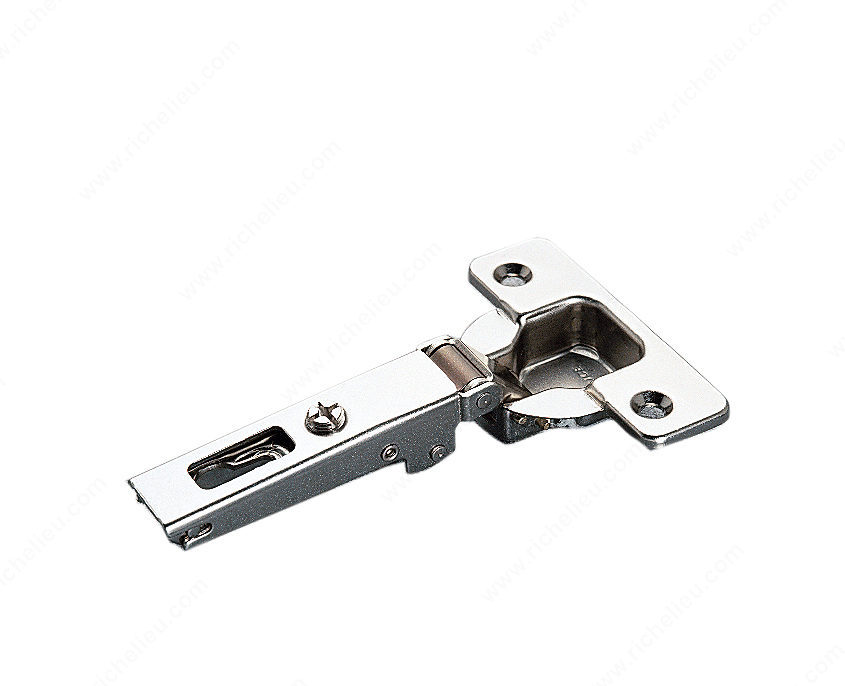

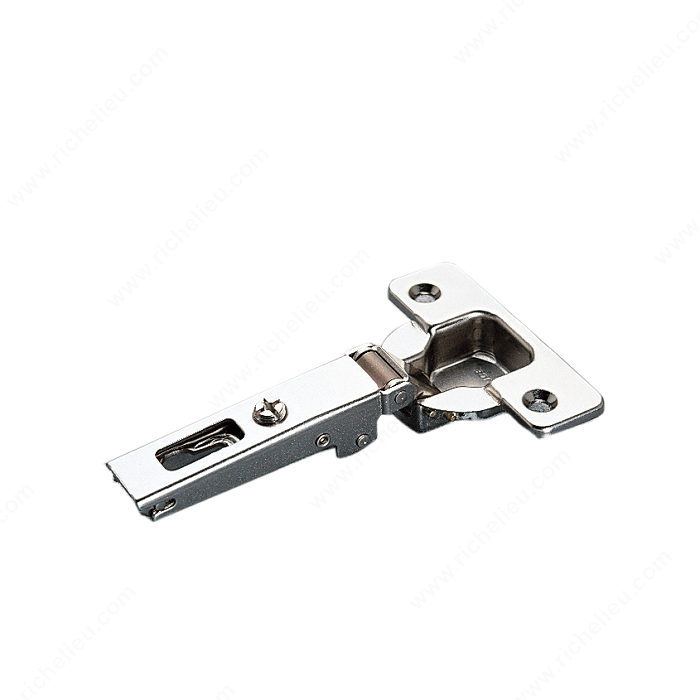

Richelieu H110C2P6A99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for those in need of concealed hinge applications. This innovative product is designed to provide seamless integration into cabinetry and doors, ensuring both functionality and aesthetic appeal. Featuring independent and compensation adjustment, these hinges allow for precise alignment, accommodating full overlay doors with thicknesses ranging from 5/8 to 1 1/32 inches. The hinge’s spring closing mechanism promotes convenient operation, while the safety stop device enhances reliability, functioning effectively in both symmetrical and asymmetrical installations. With a hinge opening angle of +110°, the Series 200 ensures ample access without compromising design. Installation is made easy thanks to the snap-on mounting system, which is compatible with all Domi series quick-release mounting plates. This hinge features a nickel finish that adds a touch of elegance, making it suitable for a variety of settings. The milling depth of 7/16 inches and diameter of 1 3/8 inches provide flexibility in application. Richelieu's H110C2P6A99 hinges are an ideal choice for anyone seeking a durable and visually pleasing solution for standard doors, combining quality and ease of use in one reliable package.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H110C2P6A99
Product number: H110C2P6A99
Product №: H110C2P6A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
