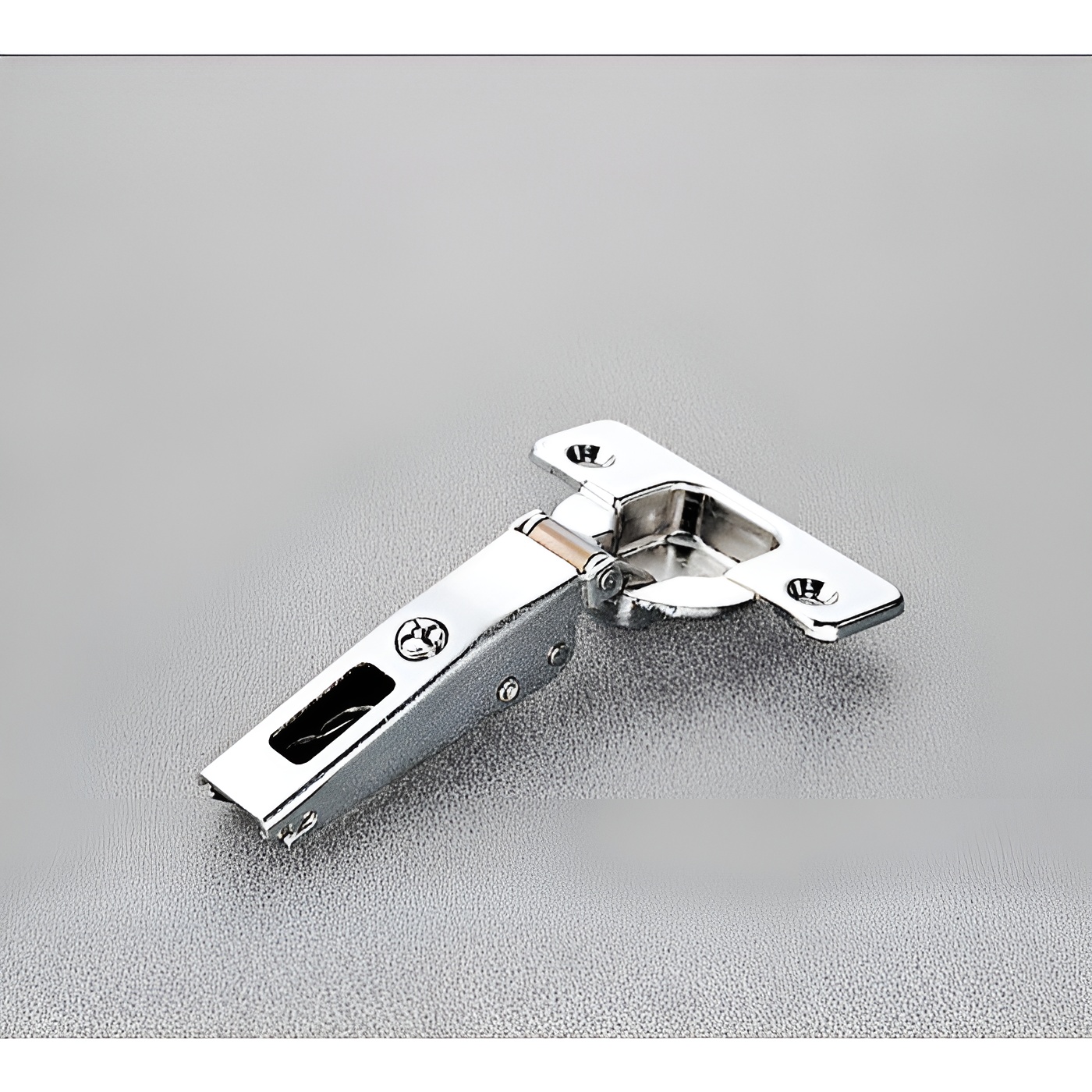

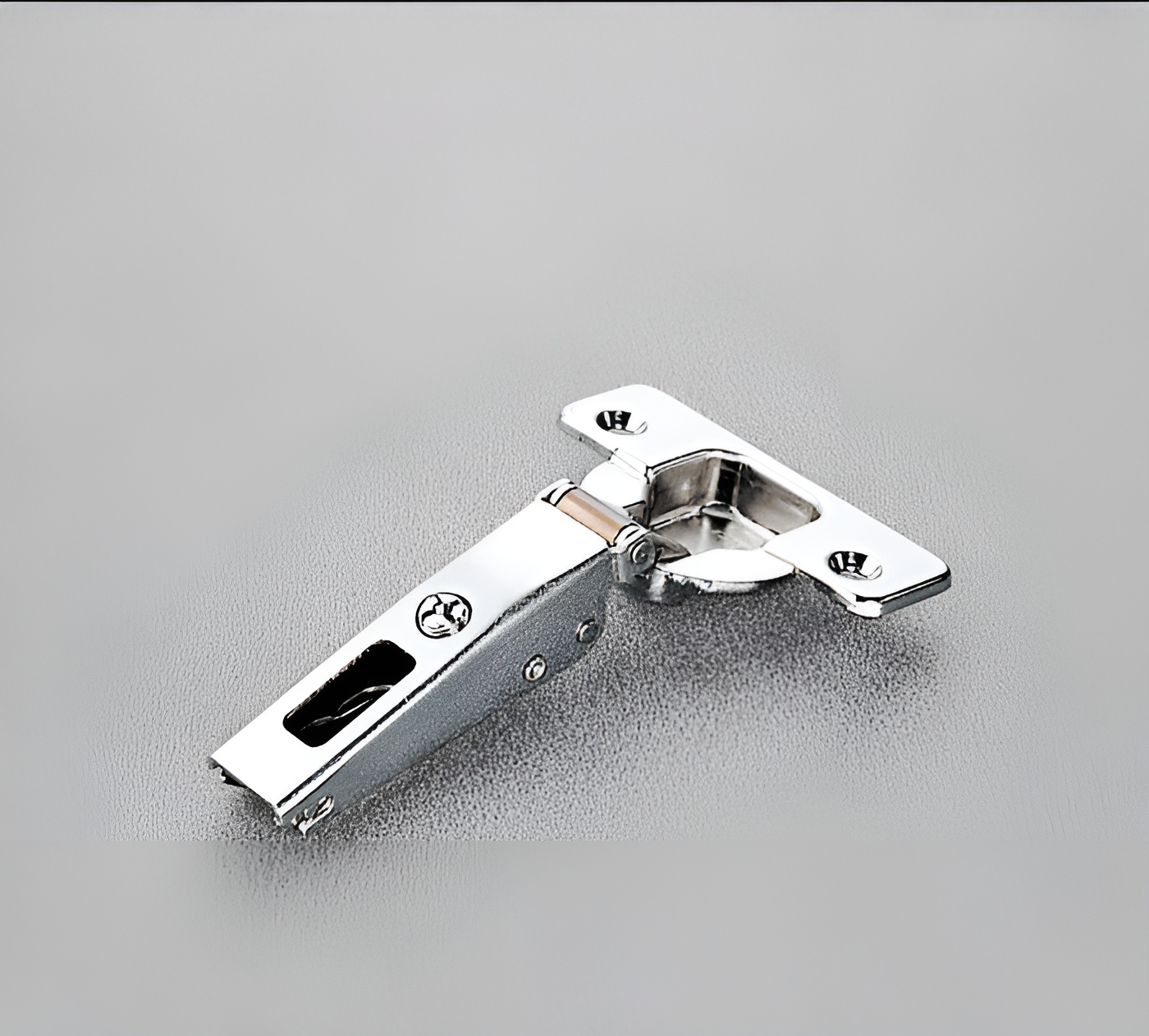

Richelieu H110C2P6D99 Series 200 Concealed Hinges - 110 offers a sophisticated solution for any project requiring hidden hinges. This innovative hinge system features independent and compensation adjustments, ensuring precise alignment and smooth operation. With a unique safety stop device, it accommodates both symmetrical and asymmetrical door setups, making it versatile for various applications. Designed for seamless installation, the snap-on mounting feature simplifies the setup process, reducing installation time and effort. This hinge is adaptable to all Domi series quick-release mounting plates, enhancing its compatibility across different cabinetry styles. The H110C2P6D99 is perfect for doors with a 1/2 inch overlay and a thickness ranging from 5/8 inch to 1 1/32 inch. It boasts an impressive hinge opening angle of +110°, coupled with a spring closing mechanism that ensures doors close securely and quietly. Constructed with a sleek nickel finish, these hinges not only provide functionality but also add a touch of elegance to your cabinetry. The milling depth of 7/16 inch and diameter of 1 3/8 inch further ensure a perfect fit for your installations. Trust Richelieu for quality and reliability in your next project with the Series 200 Concealed Hinges.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.5 in
Product #: H110C2P6D99
Product number: H110C2P6D99
Product №: H110C2P6D99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
