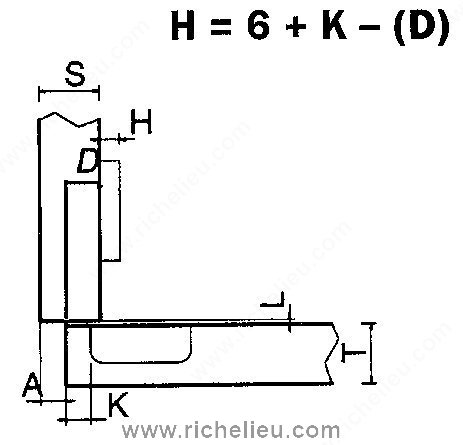

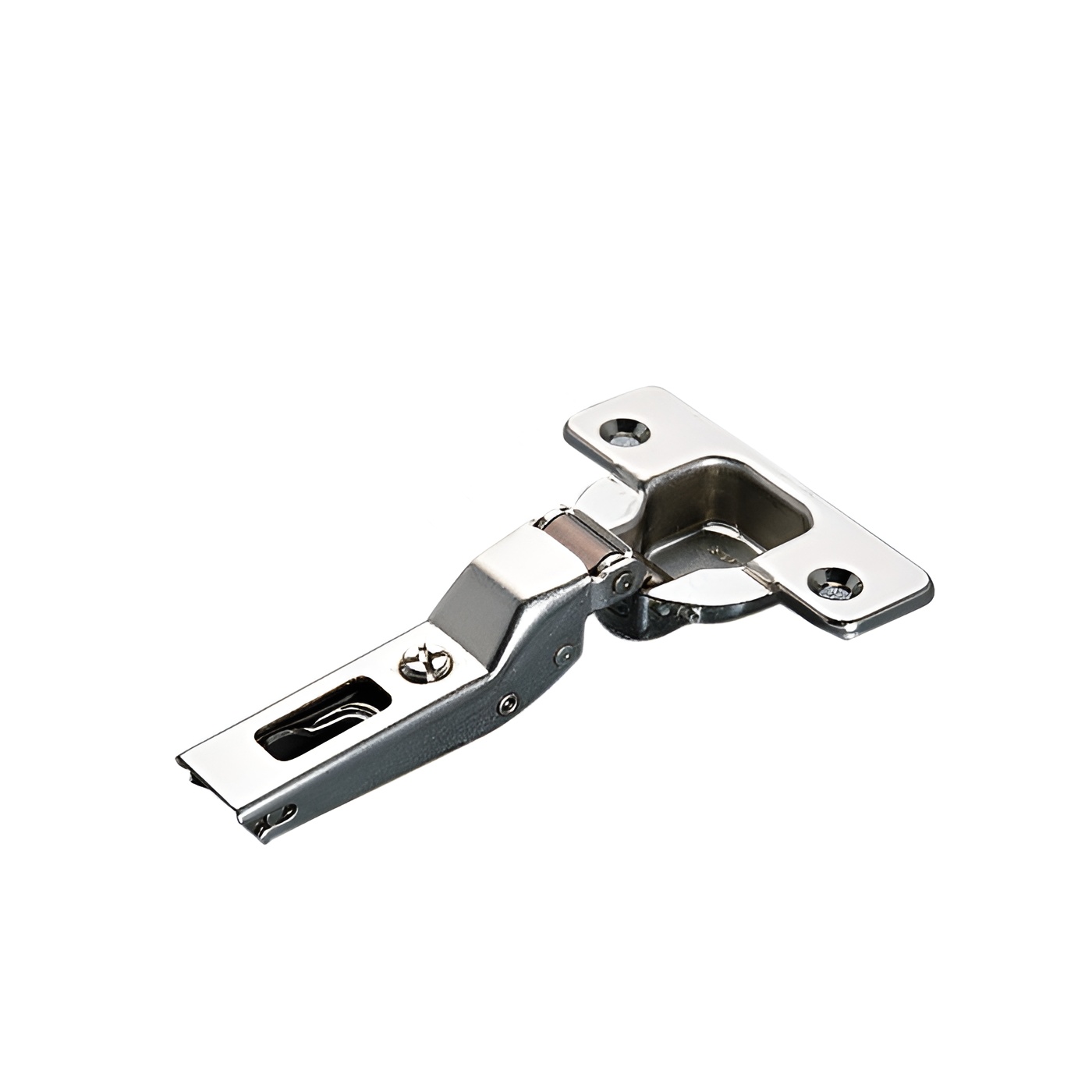

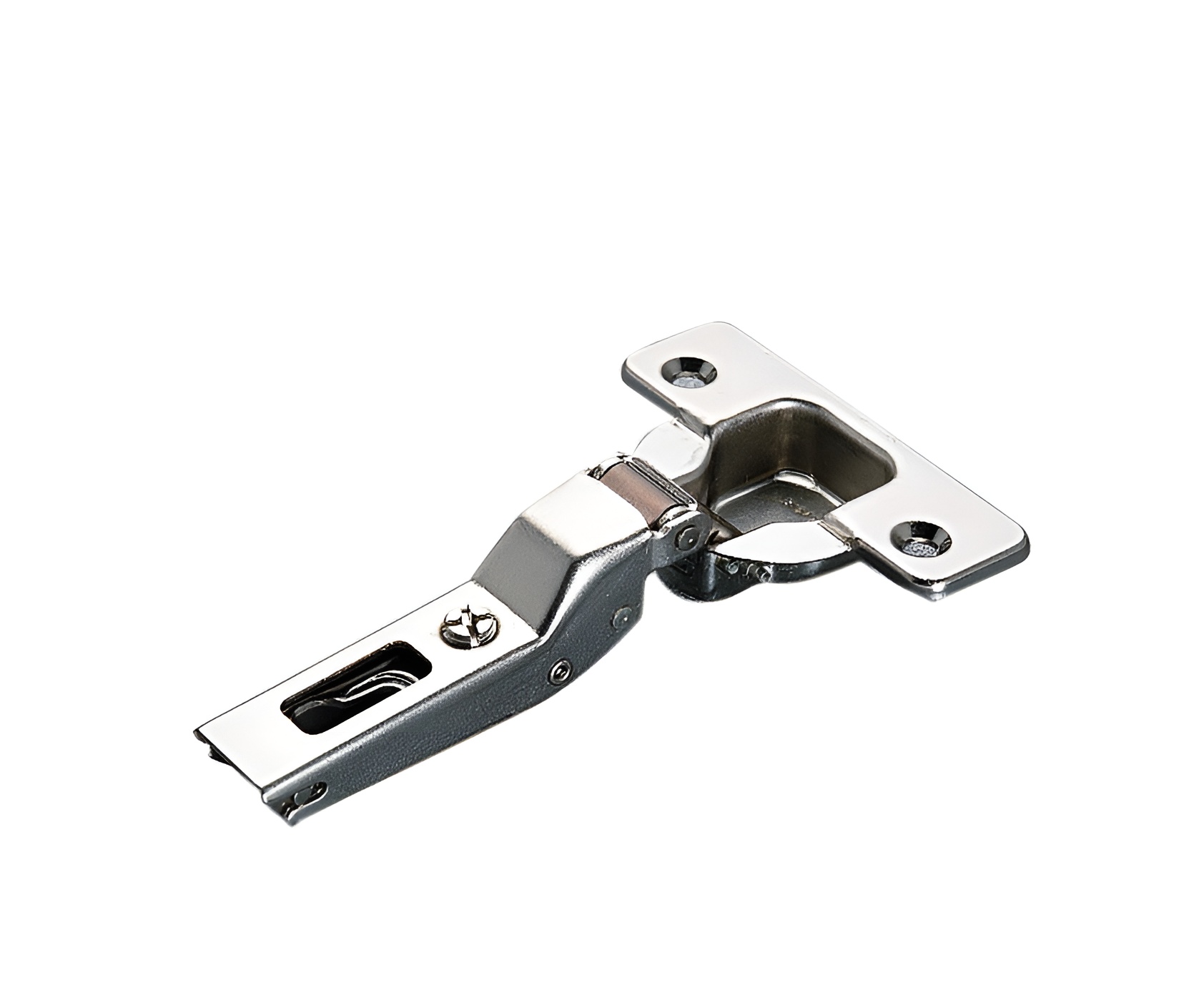

Richelieu H110C2P6G99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for those seeking reliable and discreet hardware for their cabinetry. Designed as part of the Salice series 200, these hinges provide an integrated system that ensures seamless operation where concealed hinges are required. Featuring independent and compensation adjustments, the H110C2P6G99 hinges are engineered for versatility, accommodating both symmetrical and asymmetrical door designs. The safety stop device enhances usability, while the snap-on mounting simplifies installation, making it an excellent choice for professionals and skilled DIY enthusiasts alike. These hinges are adaptable to all Domi series quick-release mounting plates, allowing for easy integration into existing setups. With a hinge opening angle of +110°, they provide ample access without compromising style. Suitable for half overlay doors with thickness ranging from 5/8 to 1 1/32 inches, they ensure a perfect fit for various applications. Finished in durable nickel, these screw-on hinges are built to last, with specific drilling distances of 1/8 to 1/4 inches, milling depth of 7/16 inches, and a milling diameter of 1 3/8 inches. The overlay measures at 11/32 inches, making the Richelieu H110C2P6G99 an ideal choice for standard door installations.

200 Series - Concealed Hinge 110
