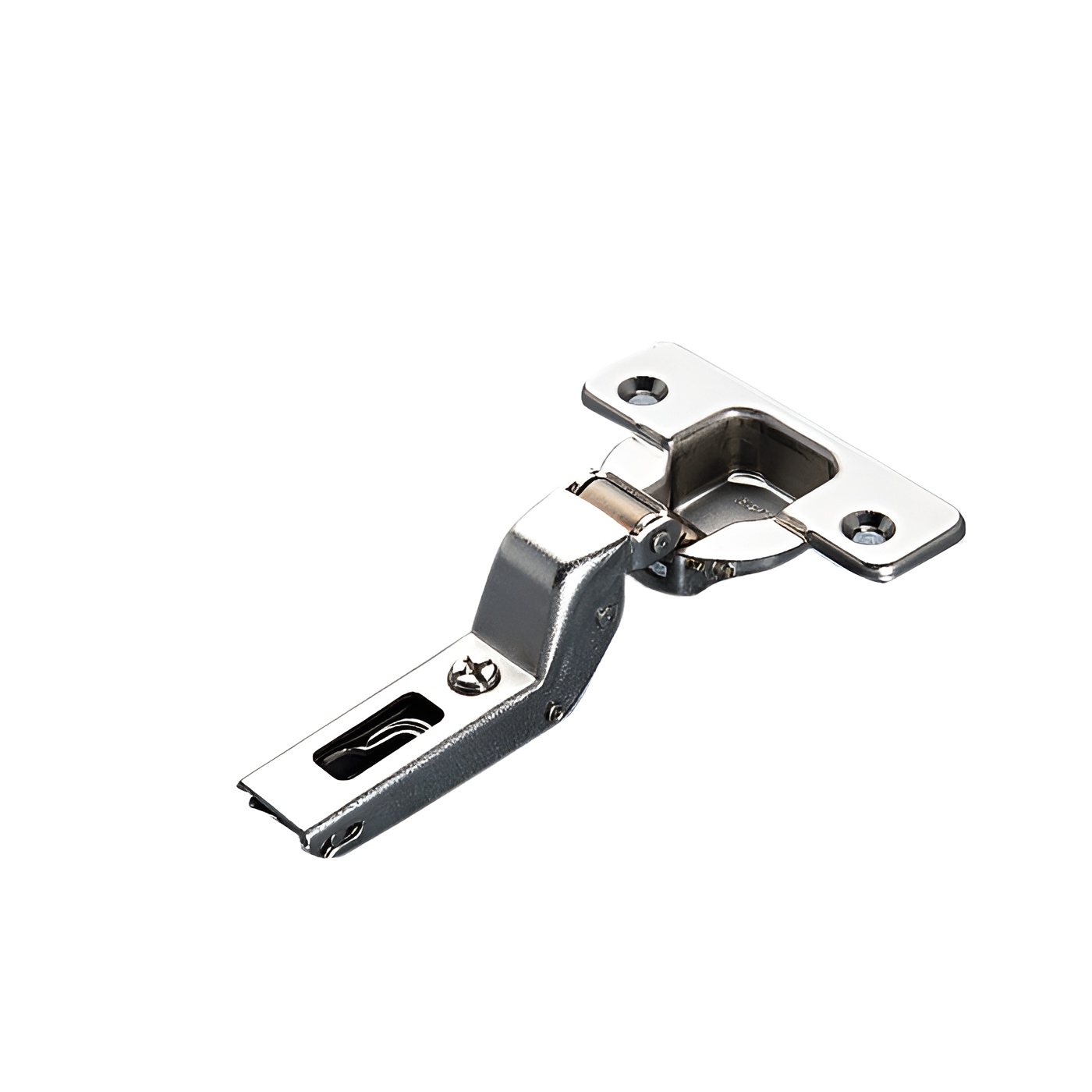

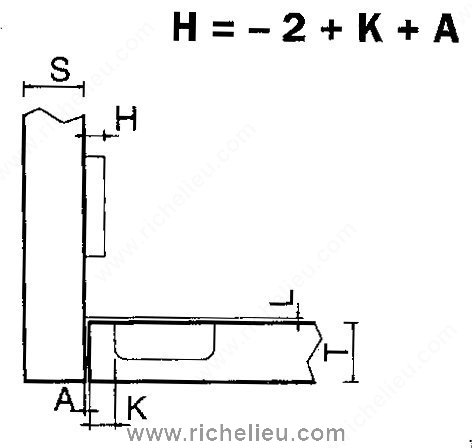

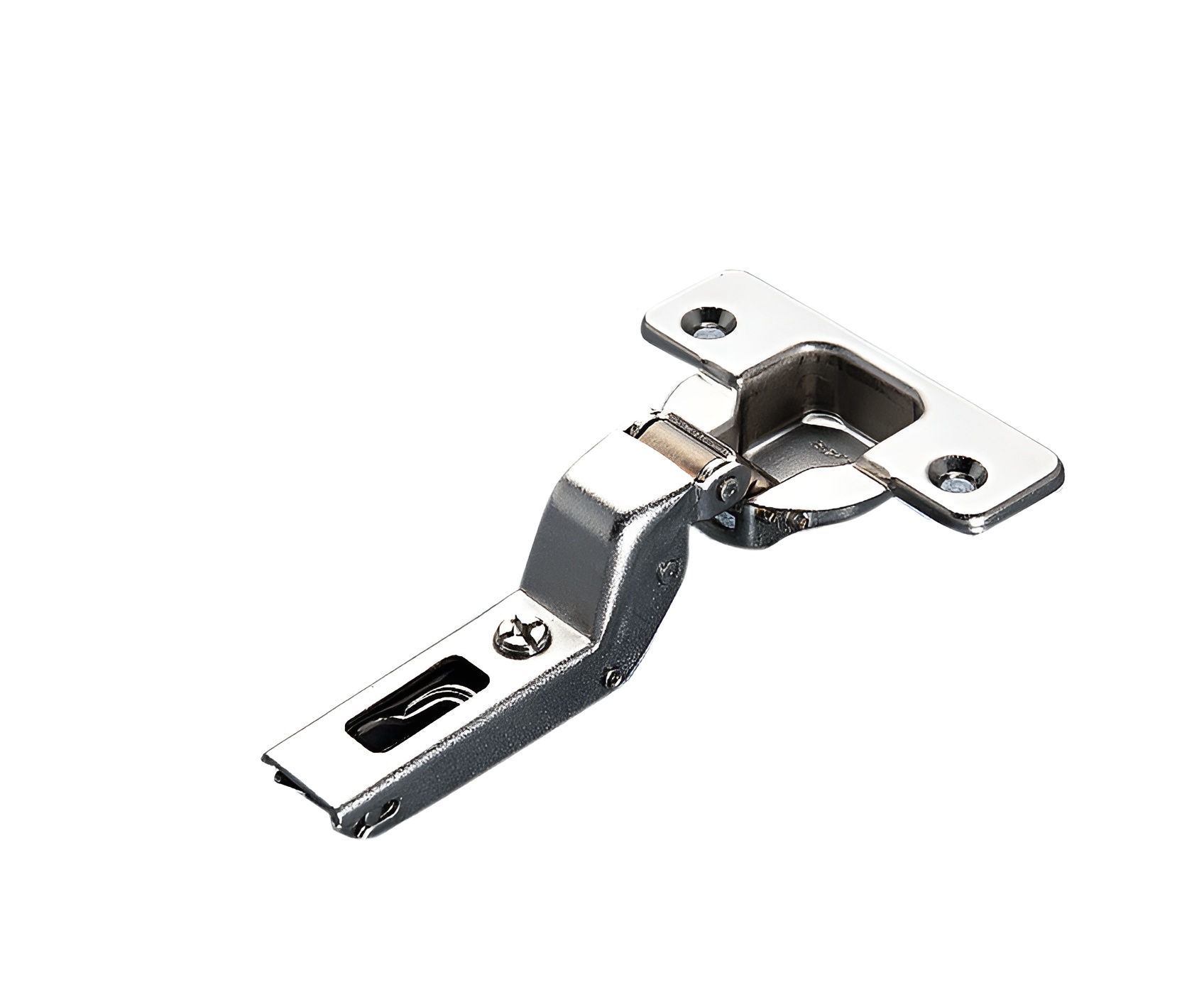

Richelieu H110C2P6P99 Series 200 Concealed Hinges - 110 offer a reliable solution for applications requiring concealed hinges. Designed by Salice, this integrated hinge system provides independent and compensation adjustment, ensuring a perfect fit for various door styles. With a hinge opening angle of +110°, these hinges allow for smooth operation while maintaining a clean aesthetic. Constructed with a safety stop device, these hinges can accommodate both symmetrical and asymmetrical doors, adding versatility to your project. The snap-on mounting feature simplifies installation, making it easier for professionals and DIY enthusiasts alike. The H110C2P6P99 hinges are adaptable to all Domi series quick-release mounting plates, enhancing compatibility across different setups. These hinges are suitable for inset doors with a thickness range of 5/8 to 1 1/32 inches and feature a milling diameter of 1 3/8 inches with a milling depth of 7/16 inches. The overlay is measured at 21/32 inches, while the screws-on fixing type ensures a secure attachment. Finished in a sleek nickel, these hinges not only perform well but also blend seamlessly with modern cabinetry and furniture designs. Ideal for standard door applications, the Richelieu H110C2P6P99 series is a smart choice for any professional project.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H110C2P6P99
Product number: H110C2P6P99
Product №: H110C2P6P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
