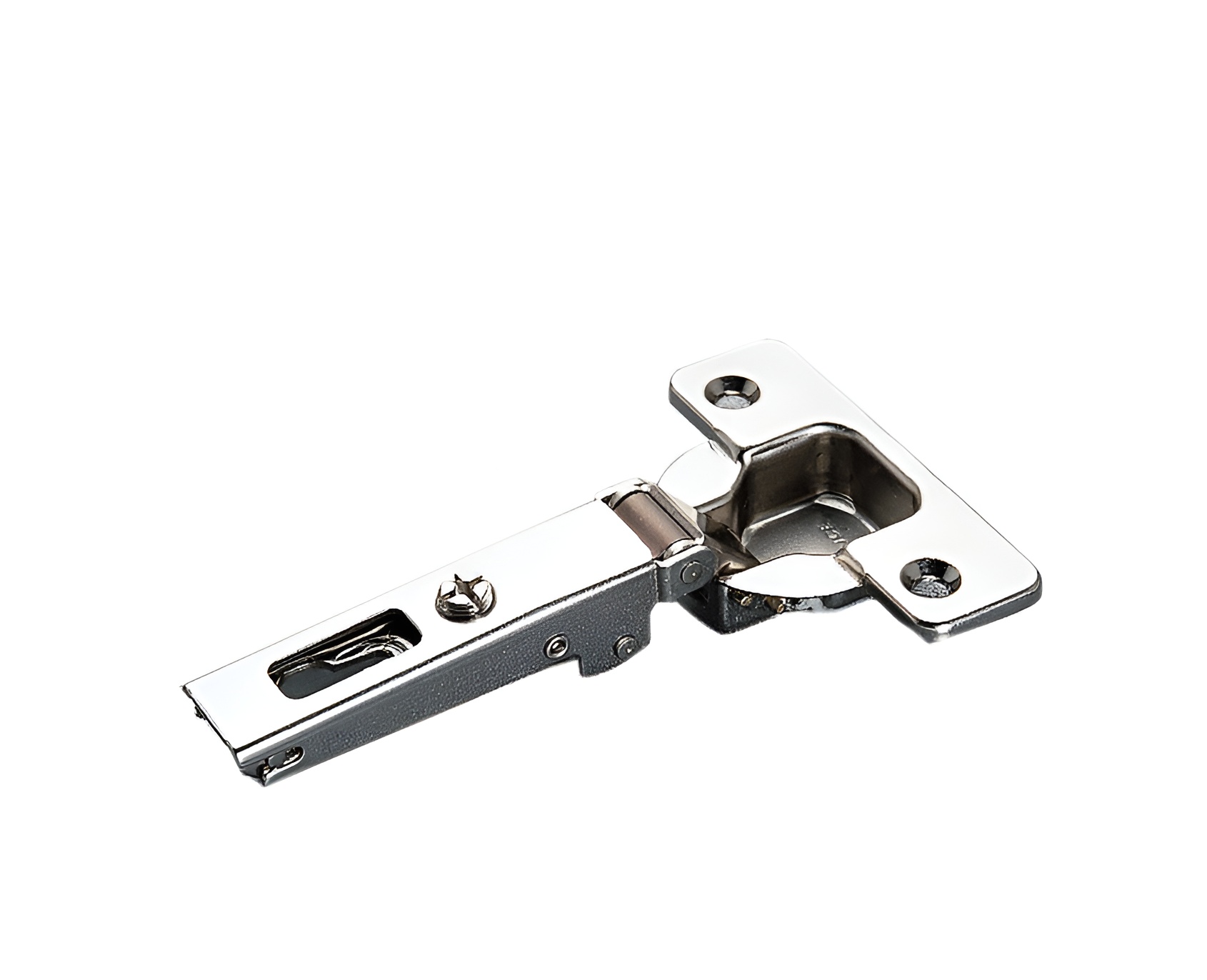

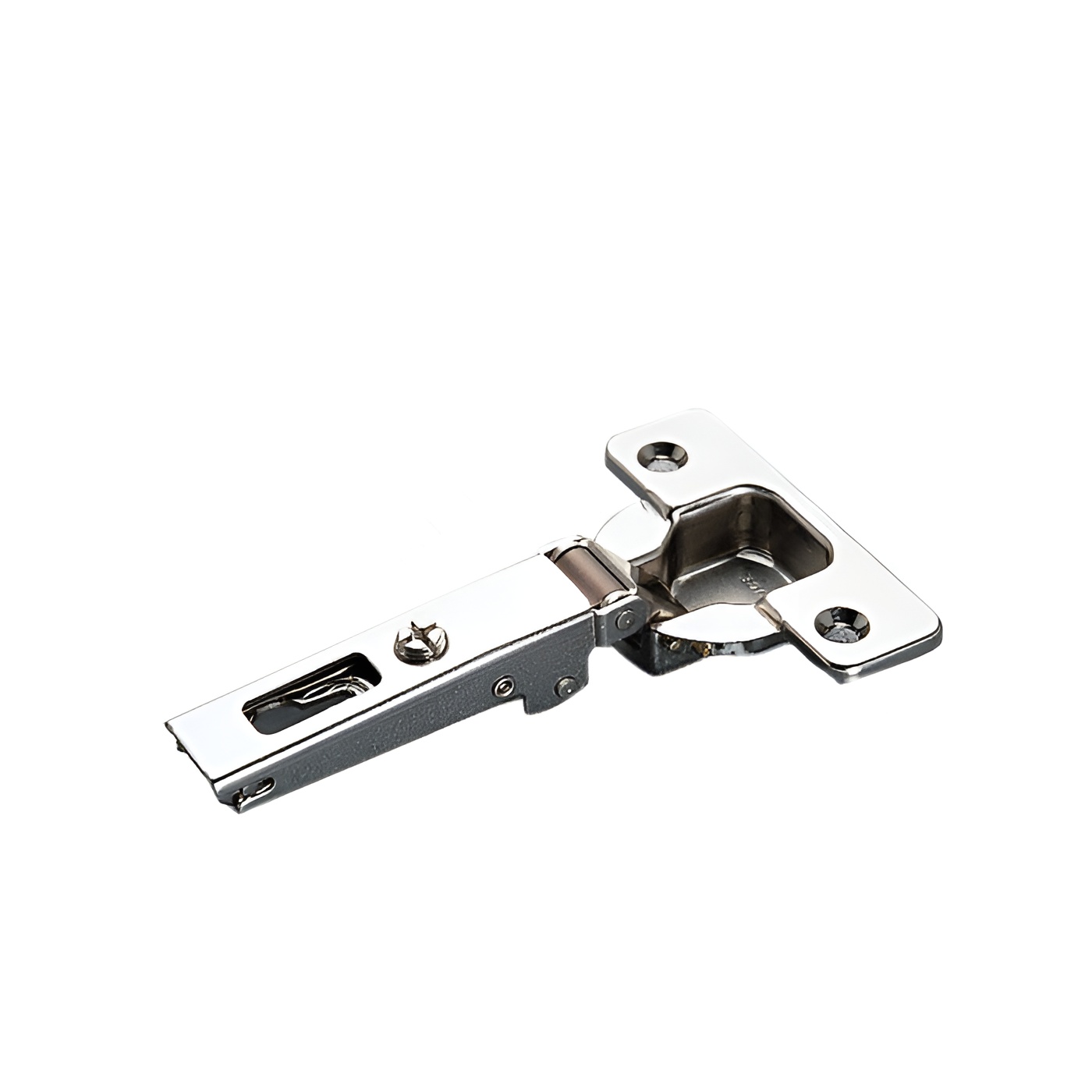

Richelieu H110C2R4A99 Series 200 Concealed Hinges - 110 offer an innovative solution for applications requiring concealed hinges. This integrated system by Salice is designed for full overlay doors, accommodating a thickness range of 5/8 to 1 1/32 inches. With the ability to open at +110°, these hinges ensure a smooth and unobtrusive operation. One of the standout features of the H110C2R4A99 is its independent and compensation adjustment, making installation straightforward and adaptable to various door configurations. The snap-on mounting system further enhances ease of use, allowing for quick adjustments without the need for additional tools. The hinges also come equipped with a safety stop device, providing both symmetrical and asymmetrical options for customizable functionality. Constructed with a sleek nickel finish, these hinges maintain a professional aesthetic while delivering reliable performance. They are compatible with all Domi series quick-release mounting plates and are ideal for standard door applications. With a milling depth of 7/16 inches and a diameter of 1 3/8 inches, the H110C2R4A99 hinges are engineered for durability and efficiency. Choose Richelieu's concealed hinges for a seamless integration in your next project, ensuring both style and functionality.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H110C2R4A99
Product number: H110C2R4A99
Product №: H110C2R4A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
