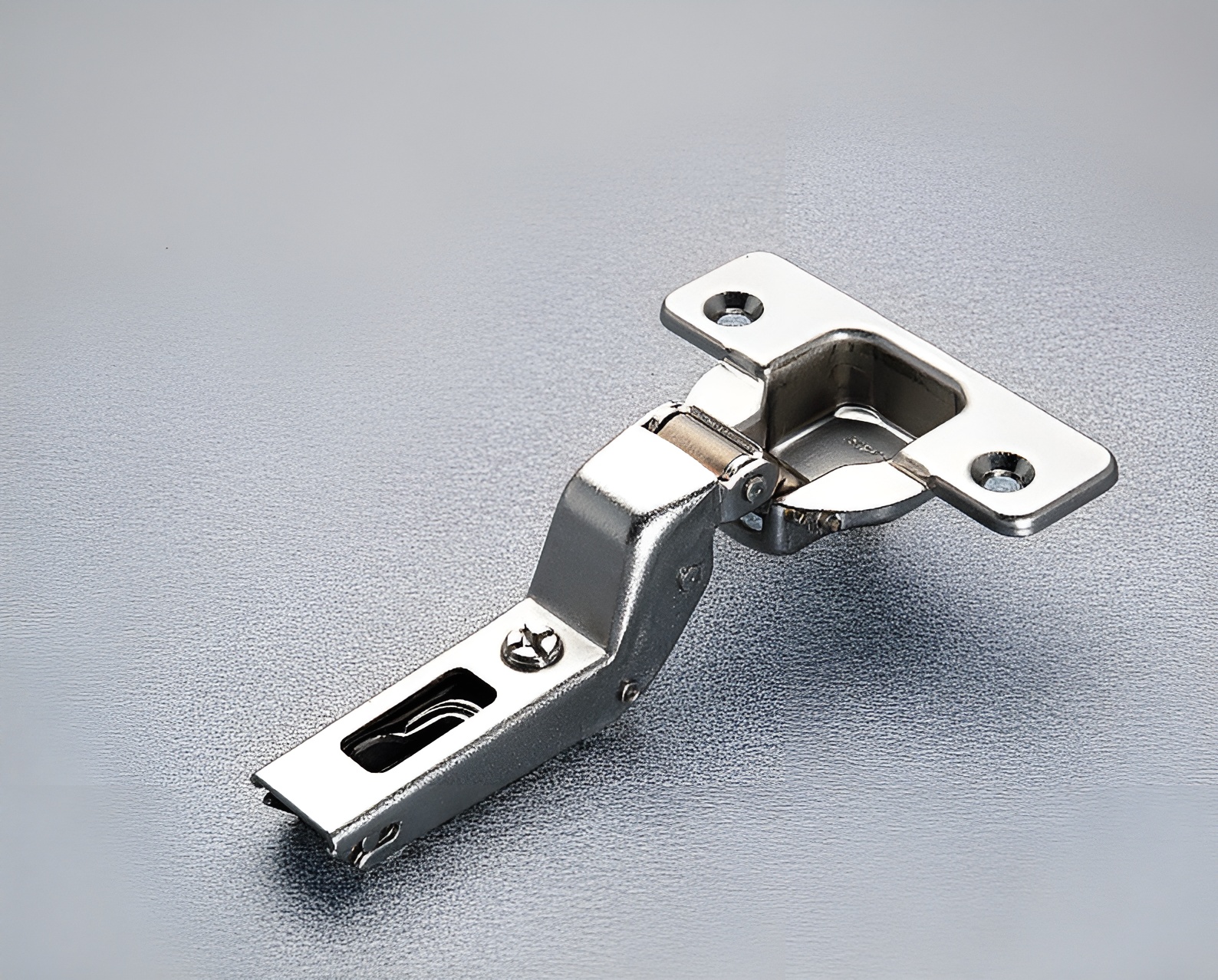

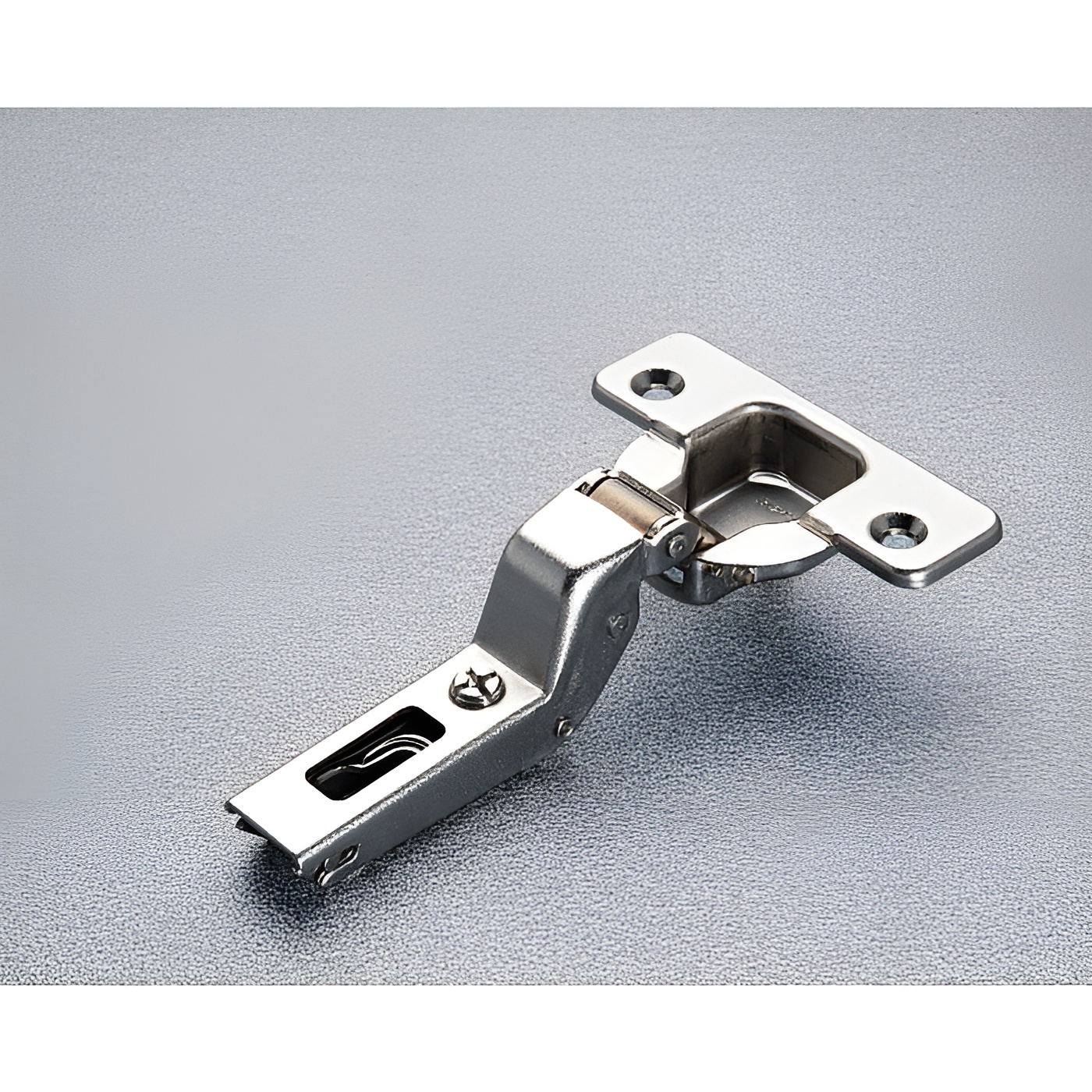

Richelieu H110C2R4P99 Series 200 Concealed Hinges - 110 offer an innovative solution for projects requiring discreet and efficient hinge systems. Designed by Salice, these hinges feature independent and compensation adjustments, making them ideal for precise alignment in various applications. The safety stop device enhances functionality by accommodating both symmetrical and asymmetrical door styles, ensuring reliable operation. With a hinge opening angle of +110°, these hinges provide ample access while maintaining a sleek appearance. Their snap-on mounting feature simplifies installation, allowing for quick and easy setup. The H110C2R4P99 is adaptable to all Domi series quick-release mounting plates, making it versatile for different projects. These concealed hinges are suitable for inset doors with a thickness range of 5/8 to 1 1/32 inches and require a milling depth of 7/16 inches with a milling diameter of 1 3/8 inches. With a stylish nickel finish and dowel fixing type, they blend seamlessly into modern interiors. The overlay measures 21/32 inches, further enhancing their discreet nature. Richelieu H110C2R4P99 Series 200 hinges are in stock and ready to ship via UPS, making them an excellent choice for building professionals and discerning homeowners alike.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.0781 in
Product #: H110C2R4P99
Product number: H110C2R4P99
Product №: H110C2R4P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
