Richelieu H110C2R6P99 Series 200 Concealed Hinges - 110 provides an exceptional solution for applications requiring concealed hinges. This integrated system by Salice is designed to enhance both aesthetic appeal and functionality in your projects. With independent and compensation adjustments, these hinges ensure precision alignment, making them ideal for a variety of installations. The H110C2R6P99 model features a safety stop device, accommodating both symmetrical and asymmetrical door configurations. Its snap-on mounting system allows for quick and easy installation, while its compatibility with all Domi series quick-release mounting plates offers versatility in design. Designed specifically for inset doors, this hinge supports door thicknesses ranging from 5/8 to 1 1/32 inches and provides an impressive hinge opening angle of +110°. The nickel finish not only adds a sleek look but also ensures durability, making it suitable for standard door use. With a milling depth of 7/16 inches and a milling diameter of 1 3/8 inches, this hinge is engineered for optimal performance. Whether you're a building professional or an informed homeowner, the Richelieu H110C2R6P99 Series 200 Concealed Hinges deliver quality and reliability for your next project.

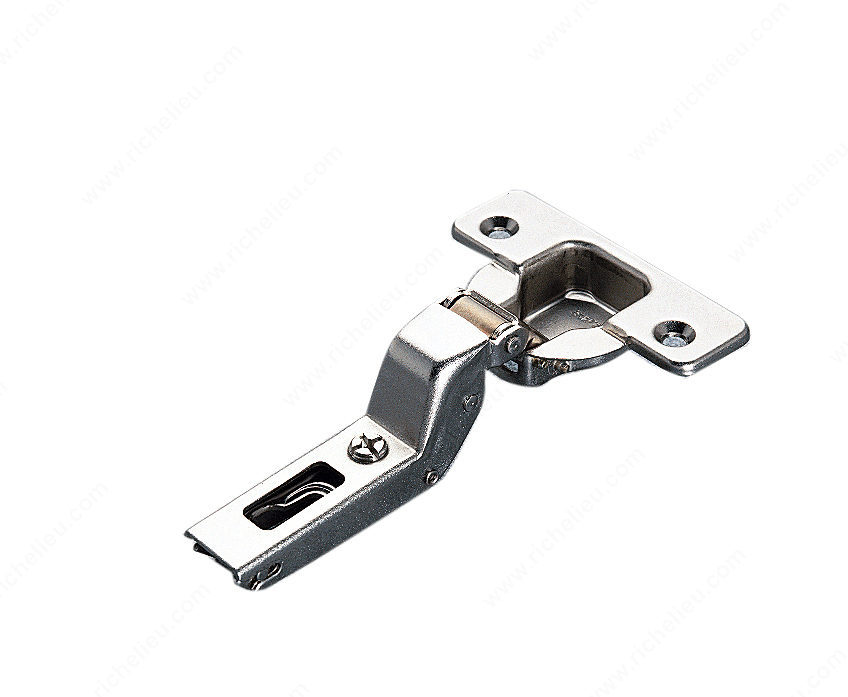

200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.0781 in
Product #: H110C2R6P99
Product number: H110C2R6P99
Product №: H110C2R6P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
