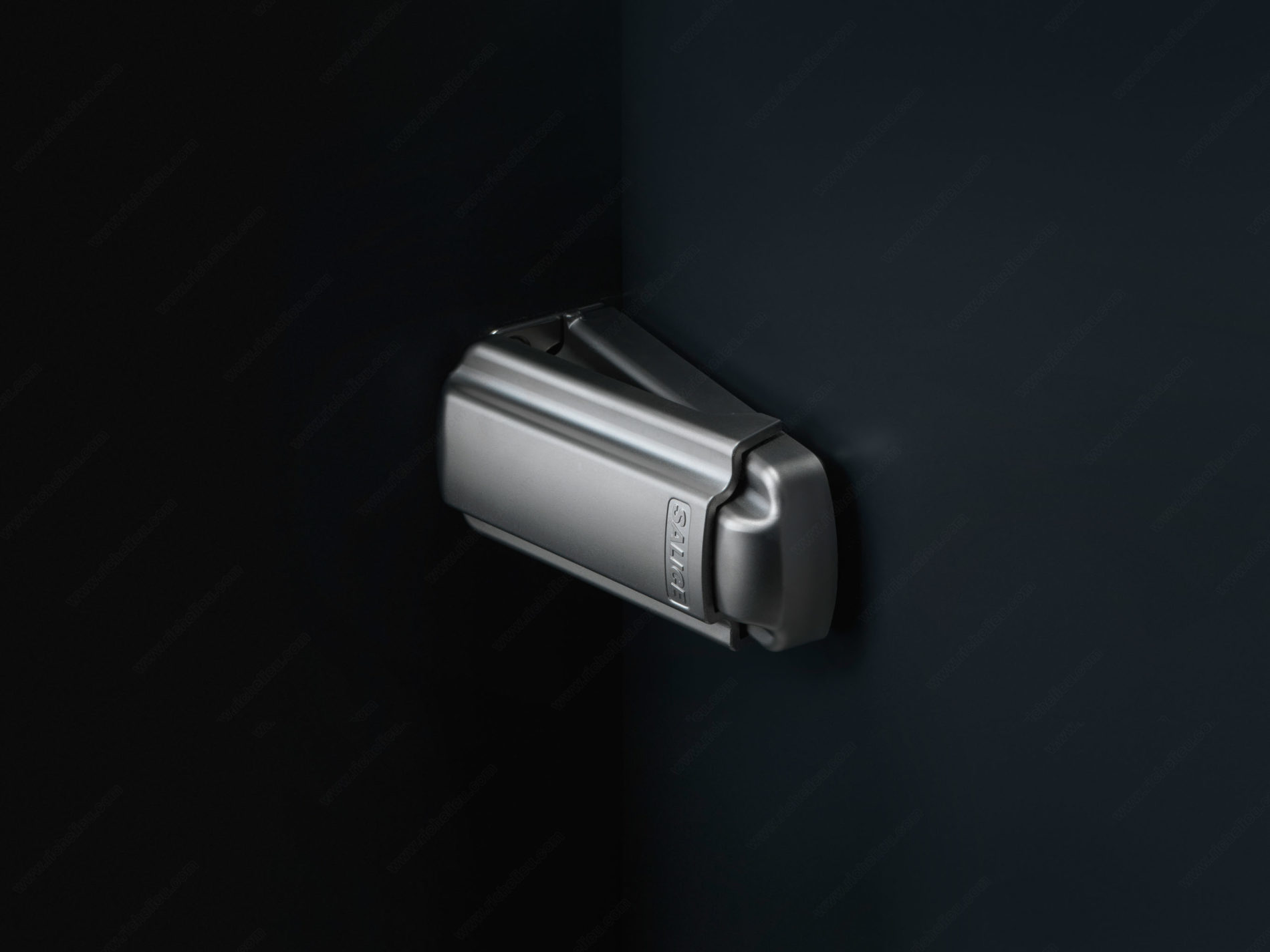

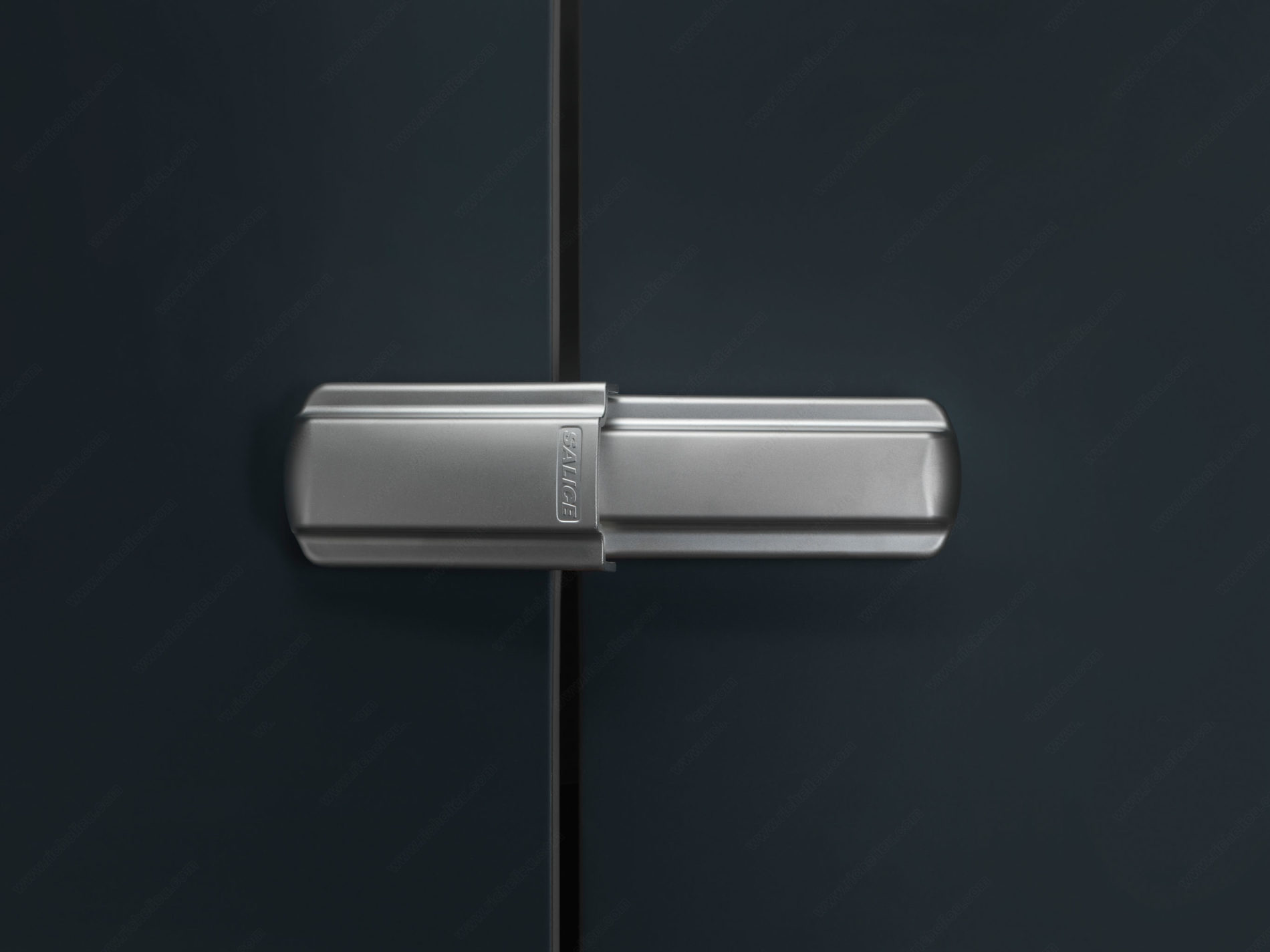

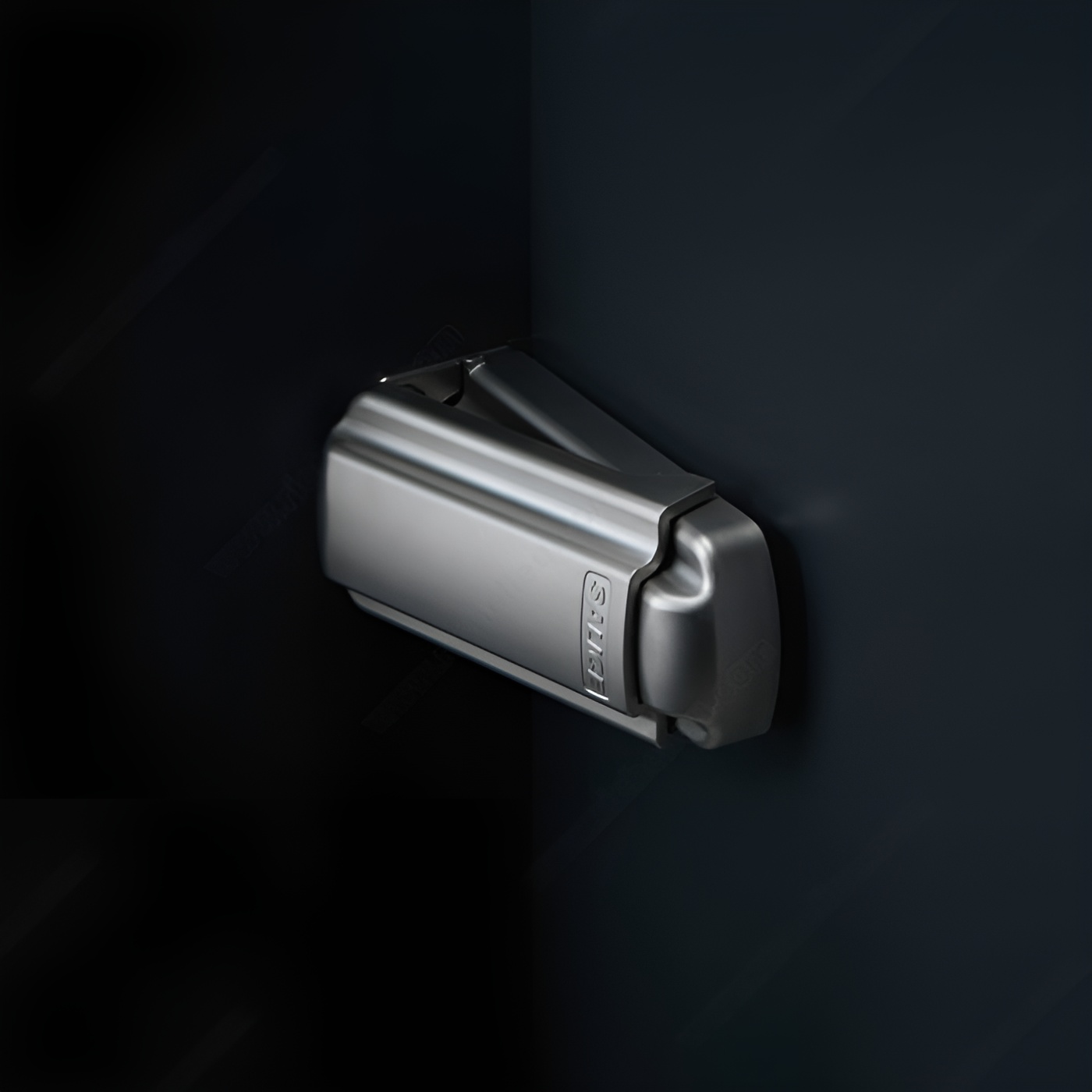

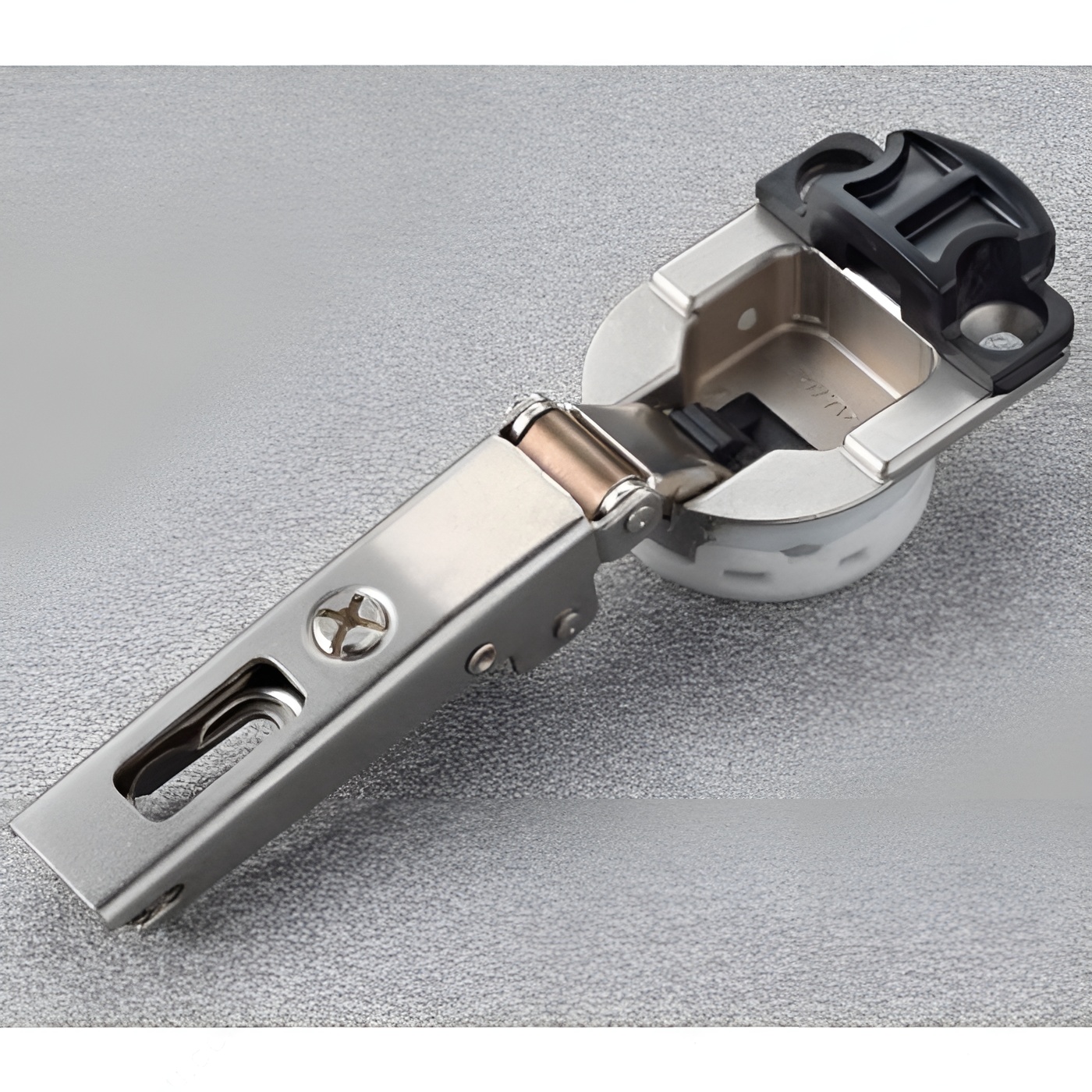

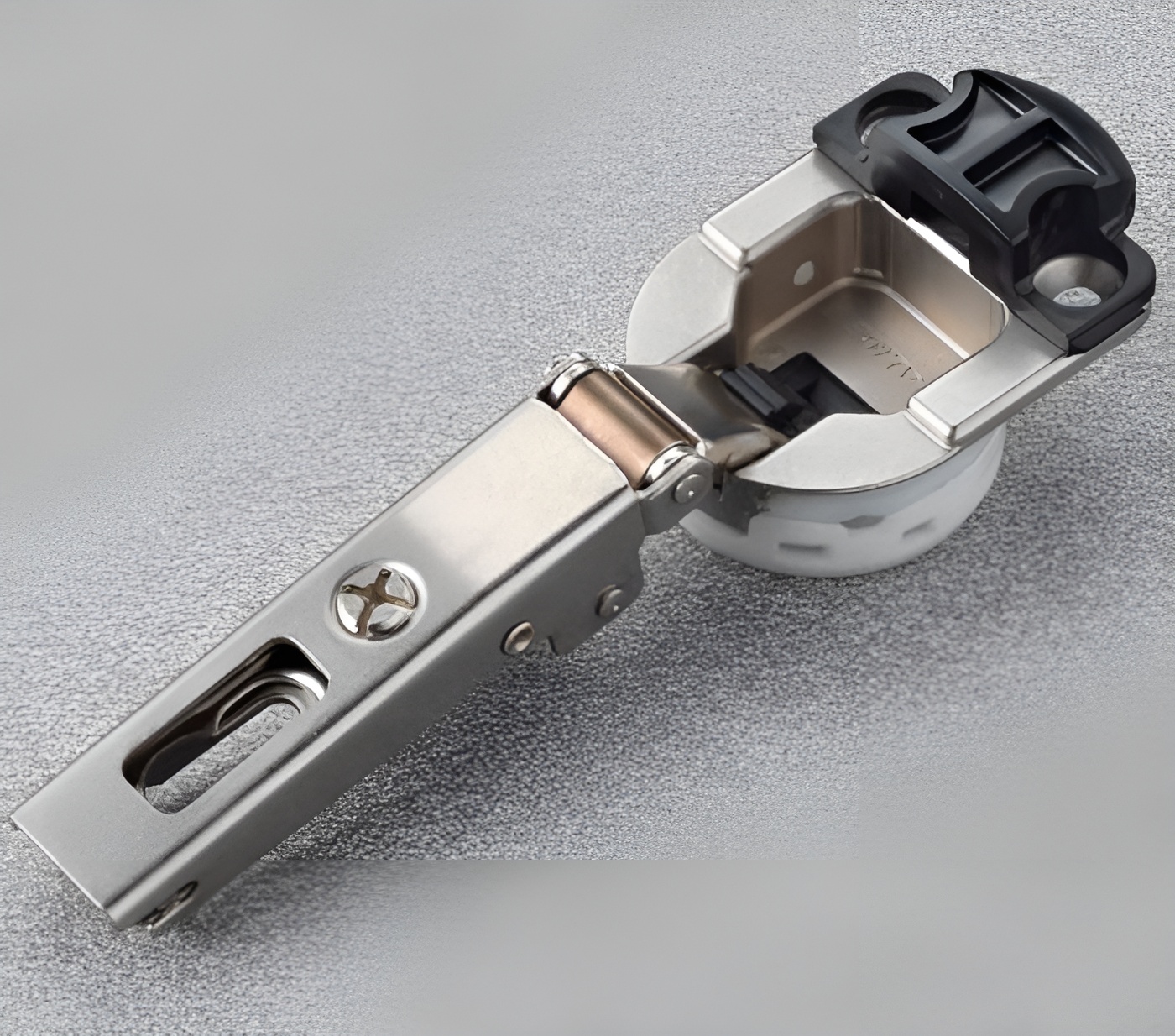

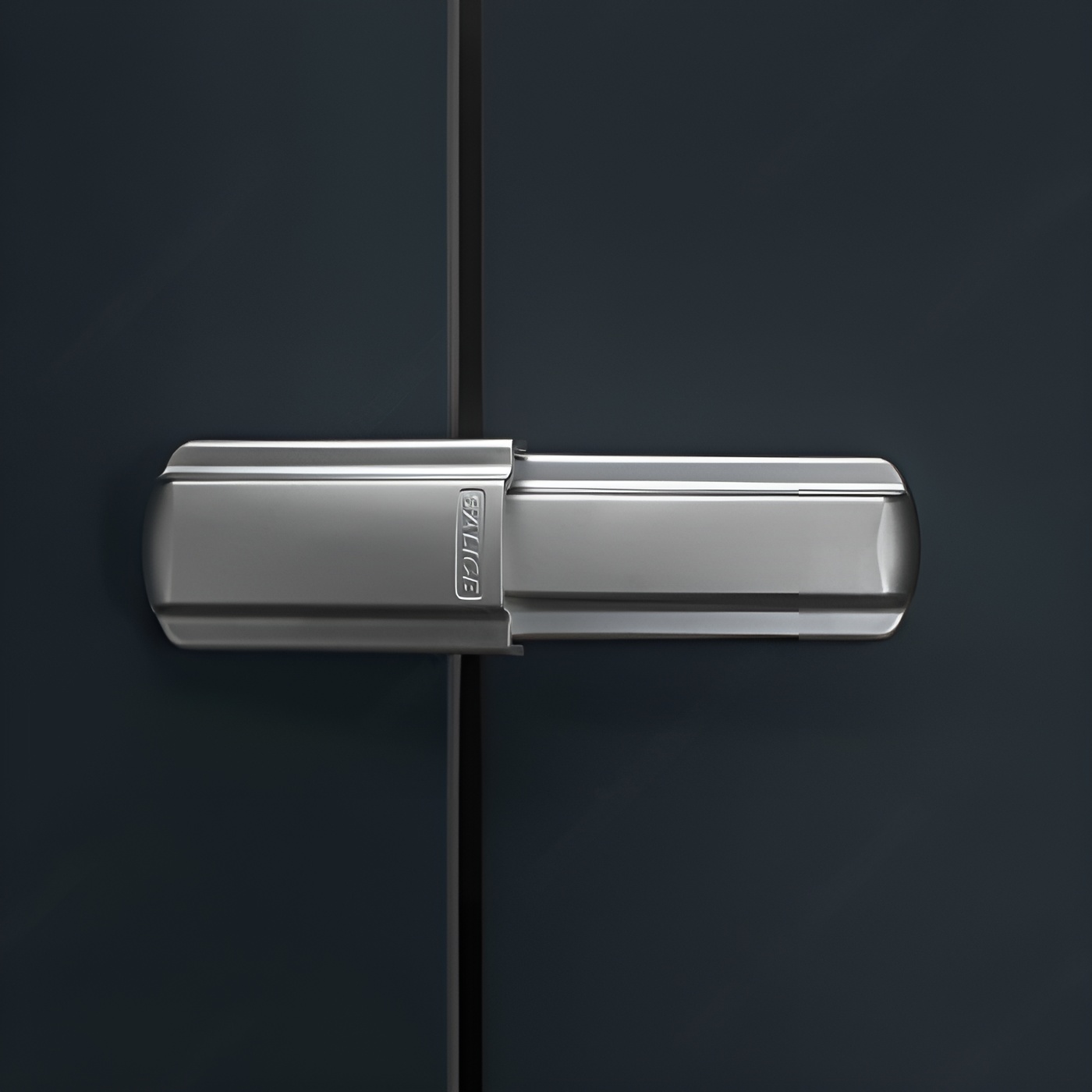

Richelieu H110C716AD9 700 Series Lapis Hinge - 110 stands out as a premier choice for those seeking a combination of functionality and aesthetic appeal in concealed hinges. Renowned for its exquisite Italian design, the Lapis hinge offers a sophisticated touch that enhances any high-end project. Designed for full overlay doors, this hinge accommodates door thicknesses ranging from 23/32 to 25/32 inches, making it versatile for various applications. With a remarkable opening angle of +110°, it ensures easy access while maintaining a sleek appearance. The soft-closing mechanism adds a layer of convenience, preventing slamming and enhancing durability. Installation is straightforward, with a drilling distance of 1/8 to 1/4 inches and specific milling dimensions of 1 3/8 inches in diameter and 17/32 inches in depth. Finished in a sleek nickel, the hinge complements modern décor while standing up to the rigors of daily use. Richelieu's H110C716AD9 hinge is ideal for standard door applications, making it an essential component for detail-oriented projects. With its combination of style and practicality, this hinge is an investment in quality that will elevate the overall look and function of any space.
700 Series - Lapis Hinges 110
Brand: Salice
Closing Mechanism: Soft-Closing

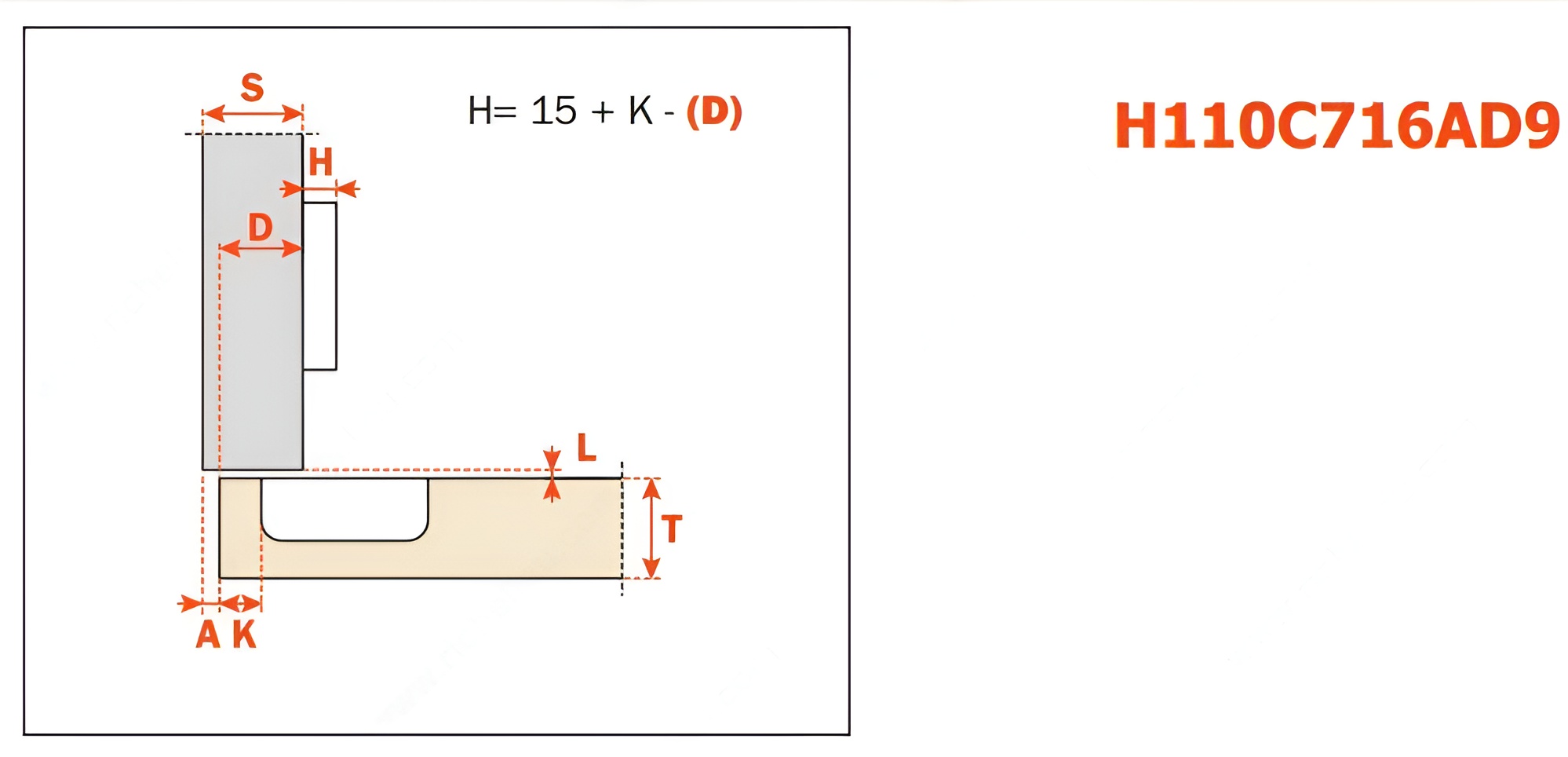

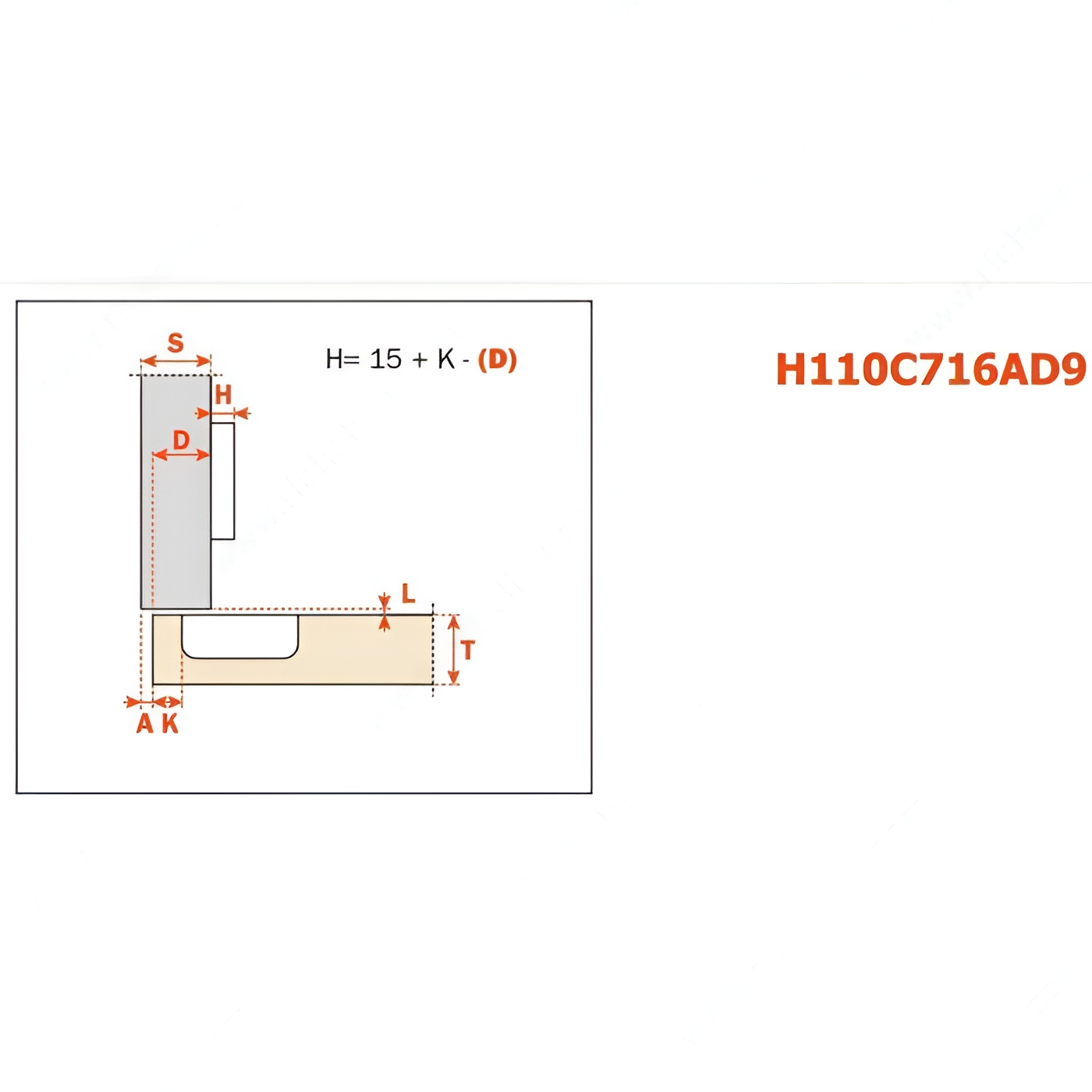

Door Position: Full Overlay
Door Thickness: 16 to 26 mm
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Mechanism: Soft-Closing

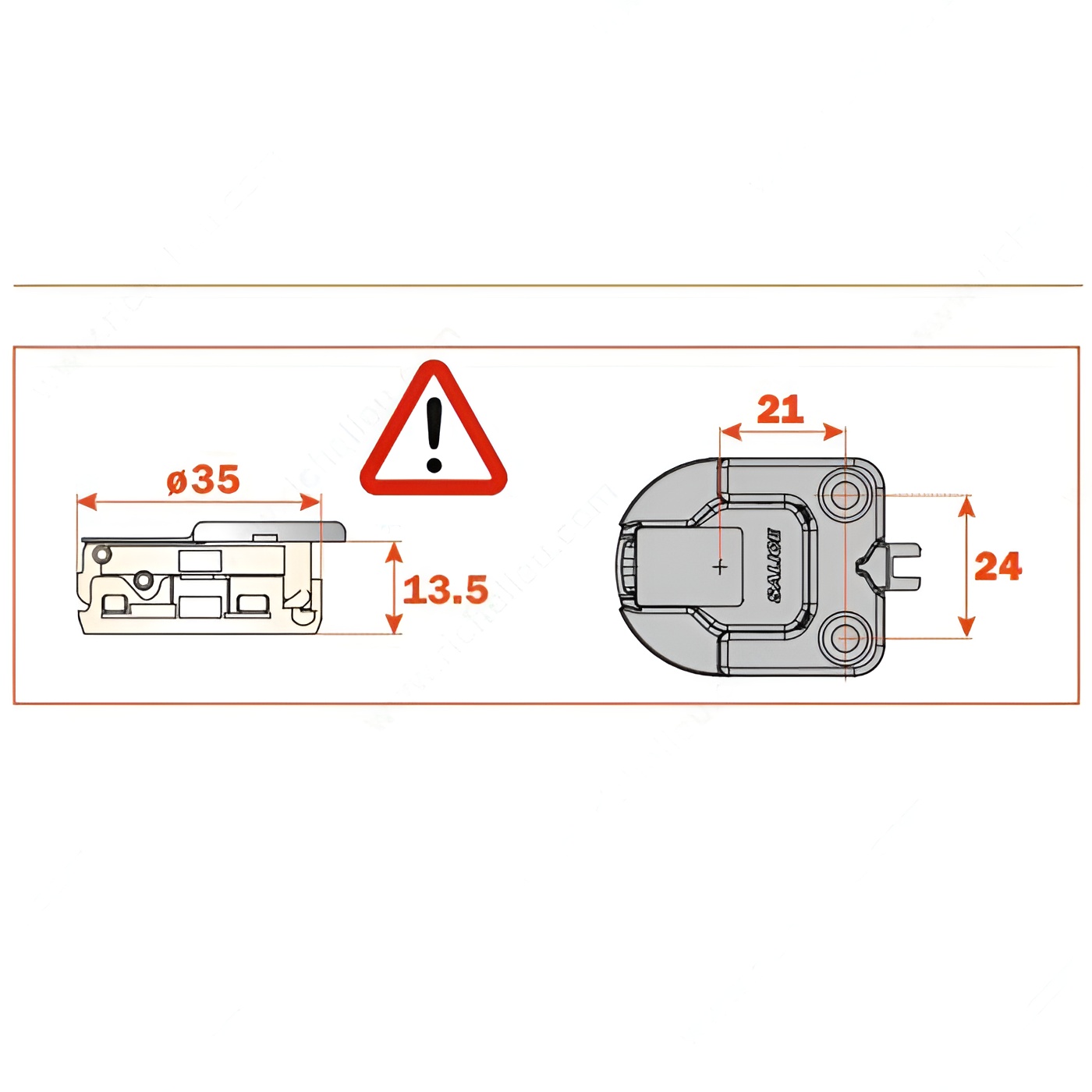

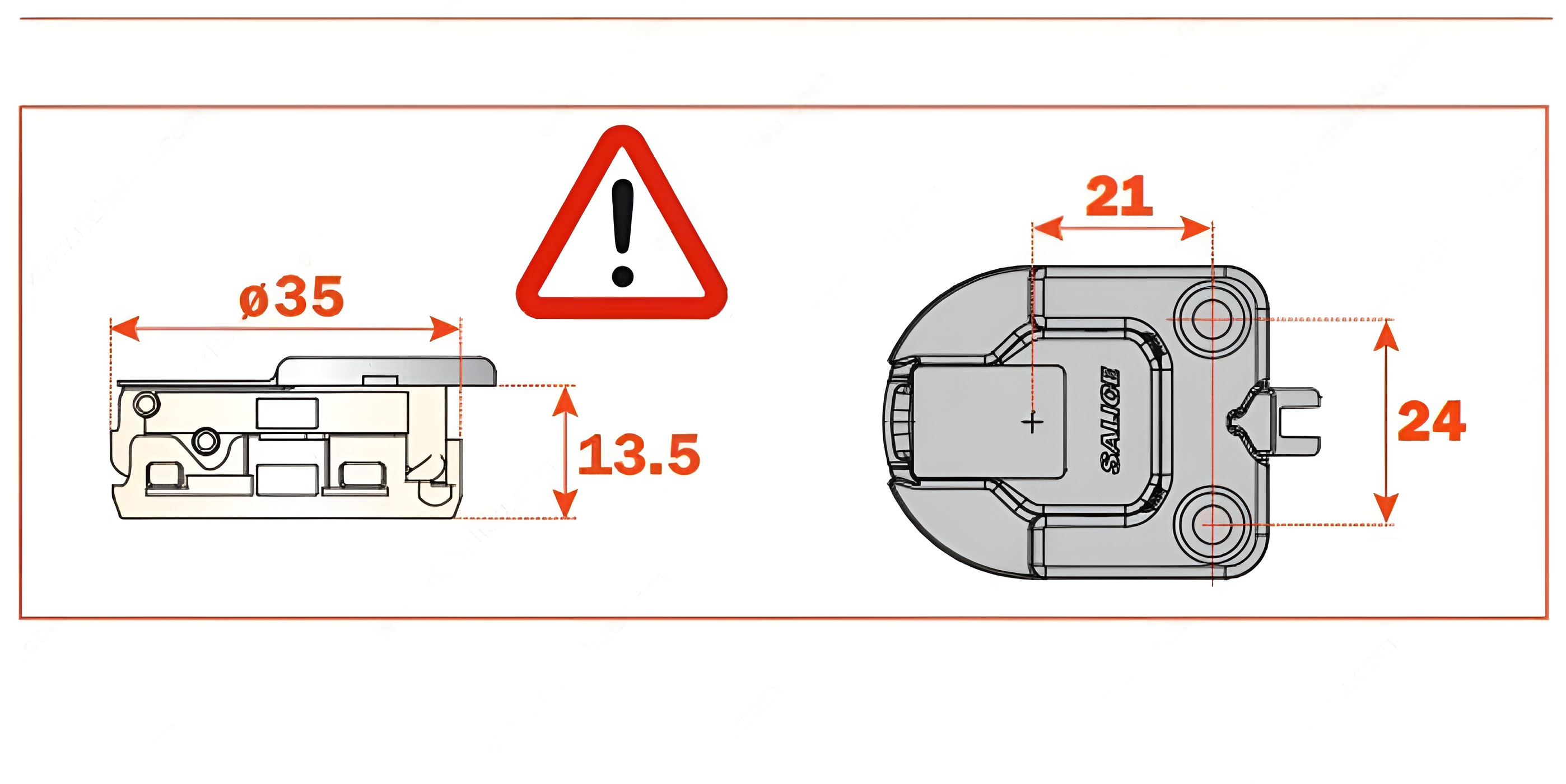

Milling Depth: 13.5 mm
Milling Diameter: 35 mm
Overlay: 0 in
Product #: H110C716AD9
Product number: H110C716AD9
Product №: H110C716AD9
Production Time: Stock
Unit 1: case - 300
Use Type: Standard Door
