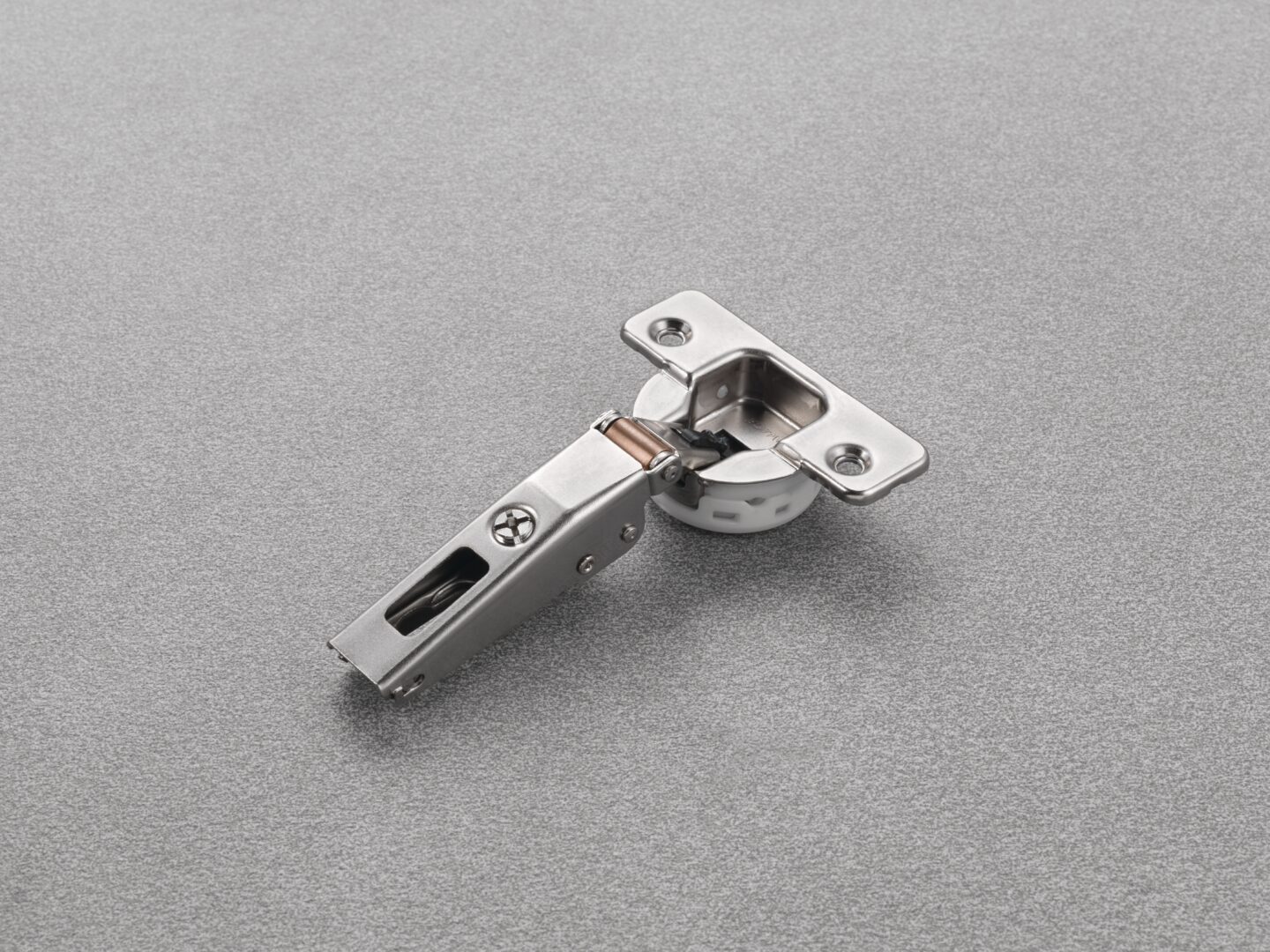

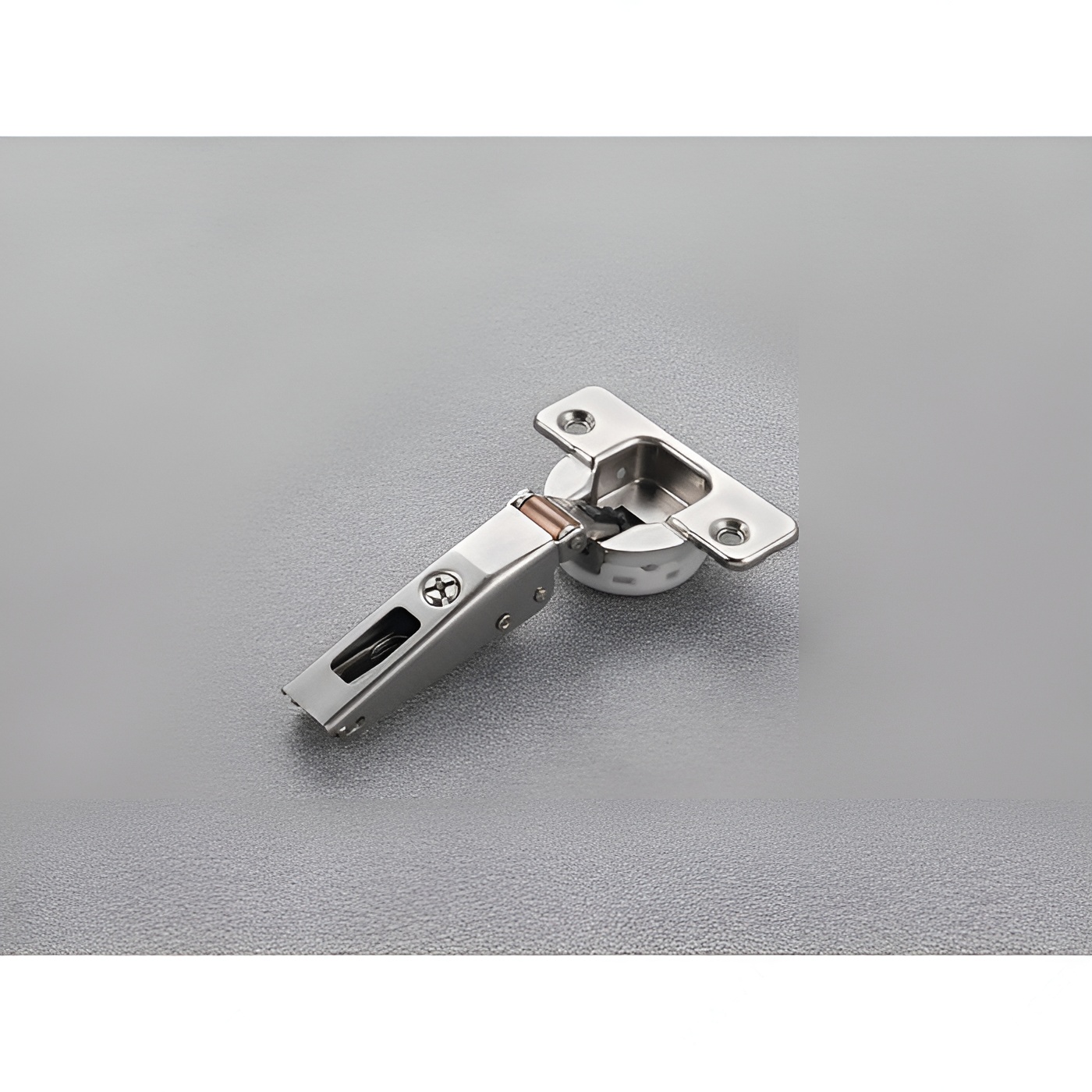

Richelieu H110C7J6DG9 Series 700 Concealed Hinge 110 offers a modern design solution that enhances both functionality and aesthetics in any space. Crafted with a sleek nickel finish, this hinge seamlessly integrates into cabinetry, providing a polished look while ensuring durability. Designed for a 1/2 inch (12.7 mm) overlay door, the hinge features a soft-closing mechanism that provides a gentle, controlled closure, preventing slamming and extending the lifespan of your doors. With an impressive hinge opening angle of +110°, it allows for easy access to cabinet interiors, making it an ideal choice for kitchen and bathroom installations. The toolless fixing type simplifies installation, offering a hassle-free setup that saves time and effort. Additionally, the hinge accommodates drilling distances between 1/8 to 1/4 inches and requires a milling depth of 17/32 inches, ensuring compatibility with various cabinetry designs. Richelieu’s commitment to quality is evident in the H110C7J6DG9 hinge, which is designed for standard doors and is readily available from stock. Elevate your cabinetry with this high-performance concealed hinge that combines style, convenience, and reliability.
700 Series - Silentia+ Concealed Hinges 110
Brand: Salice
Closing Mechanism: Soft-Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +110°
Mechanism: Soft-Closing
Milling Depth: 13.5 mm
Milling Diameter: 1 3/8 in*
Overlay: 0.5 in
Product #: H110C7J6DG9
Product number: H110C7J6DG9
Product №: H110C7J6DG9
Production Time: Stock
Silentia+ Series: 700 Series
Unit 1: case - 300
Use Type: Standard Door
