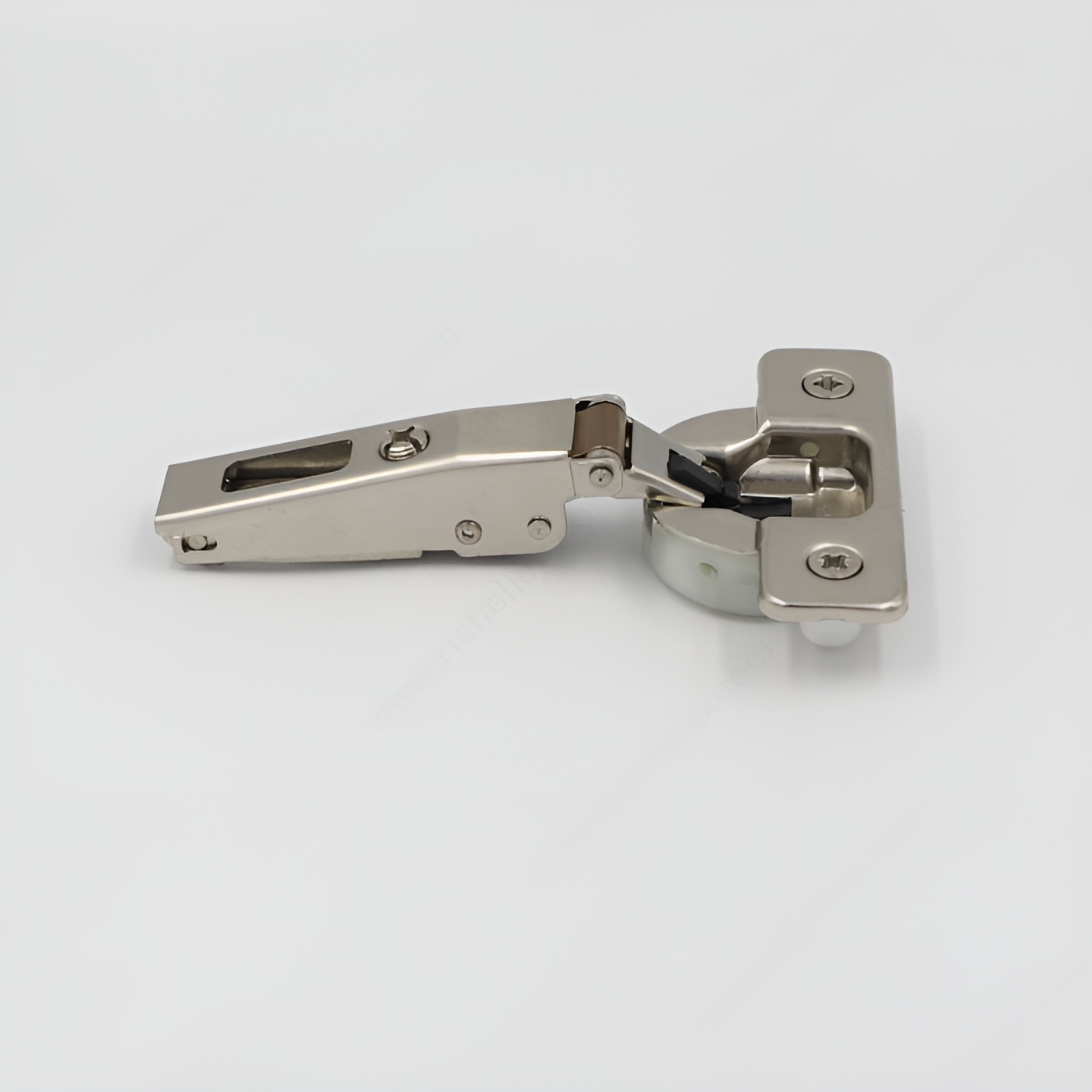

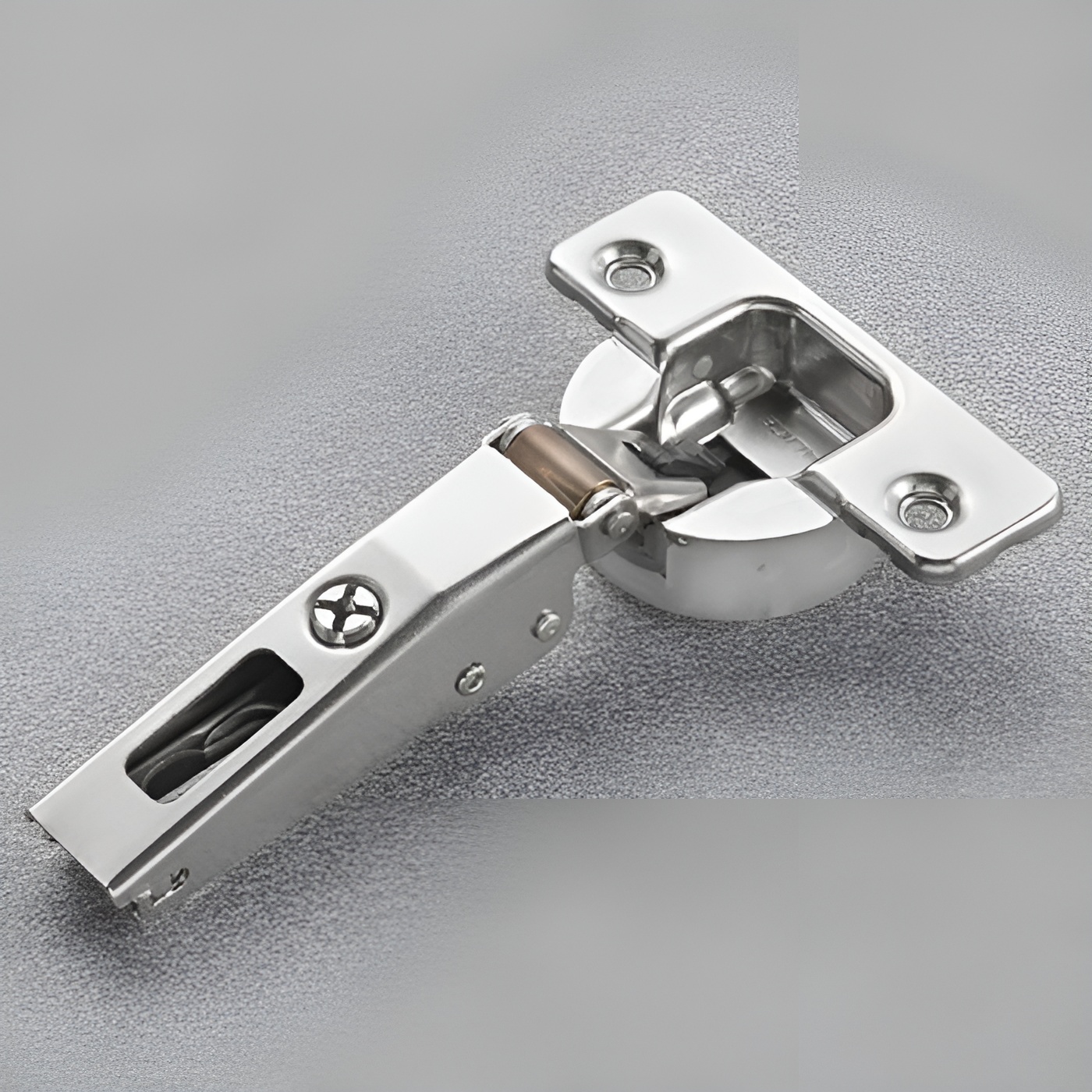

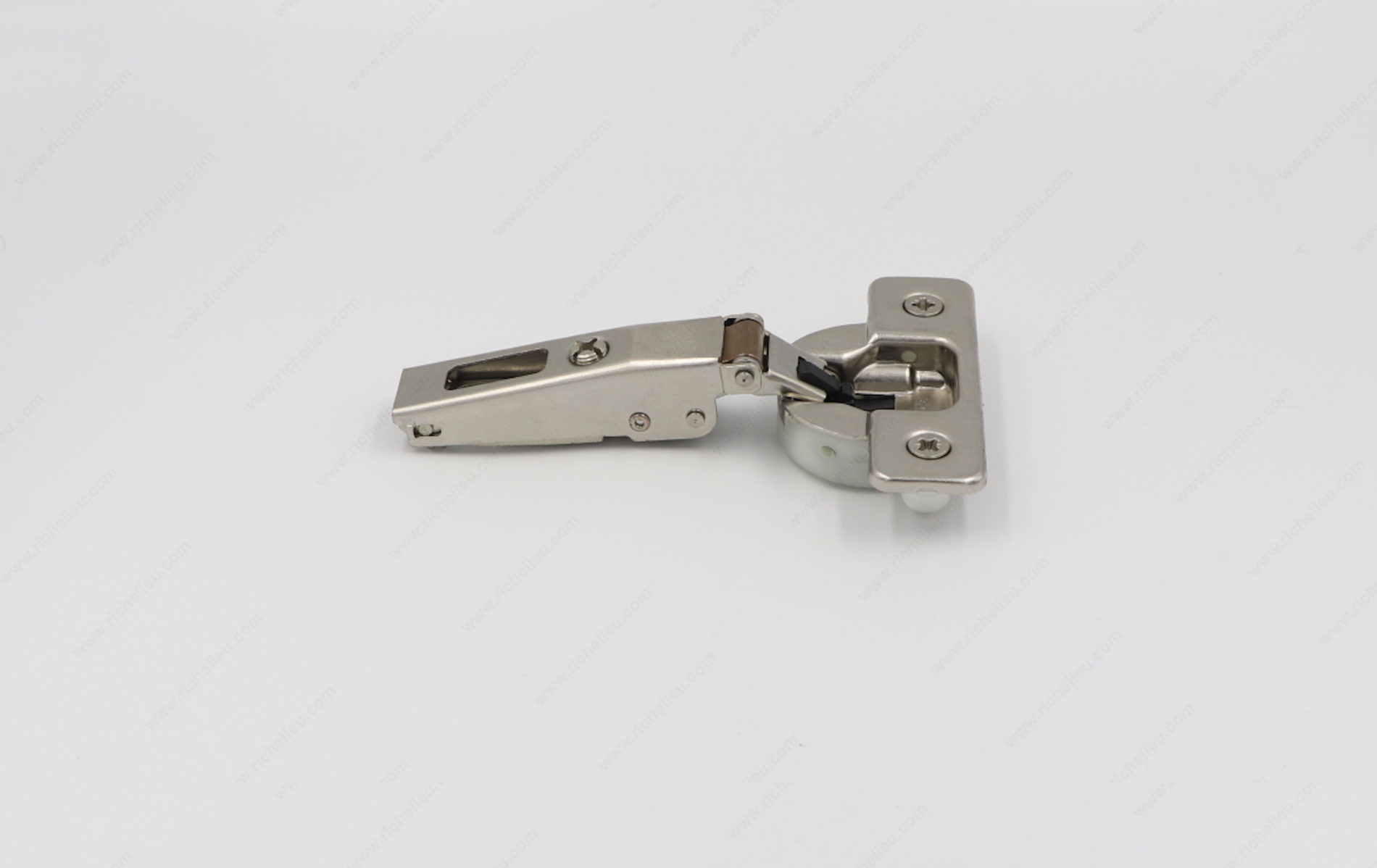

Richelieu H110C7R6DG9 Series 700 Concealed Hinge 110 offers a modern design solution that elevates the aesthetic and functional aspects of any space. Crafted with precision, this hinge is ideal for standard doors and features a sleek nickel finish that complements contemporary interiors while ensuring durability. Designed for a 1/2 inch (12.7 mm) overlay, the hinge accommodates various door styles with ease. The soft-closing mechanism enhances user experience by providing a gentle, controlled closure, reducing noise and wear over time. With an impressive hinge opening angle of +110°, it allows for easy access and movement, making it a practical choice for high-traffic areas. This hinge requires a drilling distance of 1/8 to 1/4 inch and a milling depth of 17/32 inch, ensuring compatibility with a wide range of door thicknesses. The dowel fixing type simplifies installation, allowing for a secure fit that stands the test of time. Richelieu's commitment to quality means this product is stocked for quick shipping via UPS, making it a reliable option for professionals and homeowners alike. Enhance your project with the Richelieu H110C7R6DG9 Series 700 Concealed Hinge, where style meets functionality.
700 Series - Silentia+ Concealed Hinges 110
Brand: Salice
Closing Mechanism: Soft-Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Mechanism: Soft-Closing
Milling Depth: 13.5 mm
Milling Diameter: 1 3/8 in*
Overlay: 0.5 in
Product #: H110C7R6DG9
Product number: H110C7R6DG9
Product №: H110C7R6DG9
Production Time: Stock
Silentia+ Series: 700 Series
Unit 1: case - 300
Use Type: Standard Door
