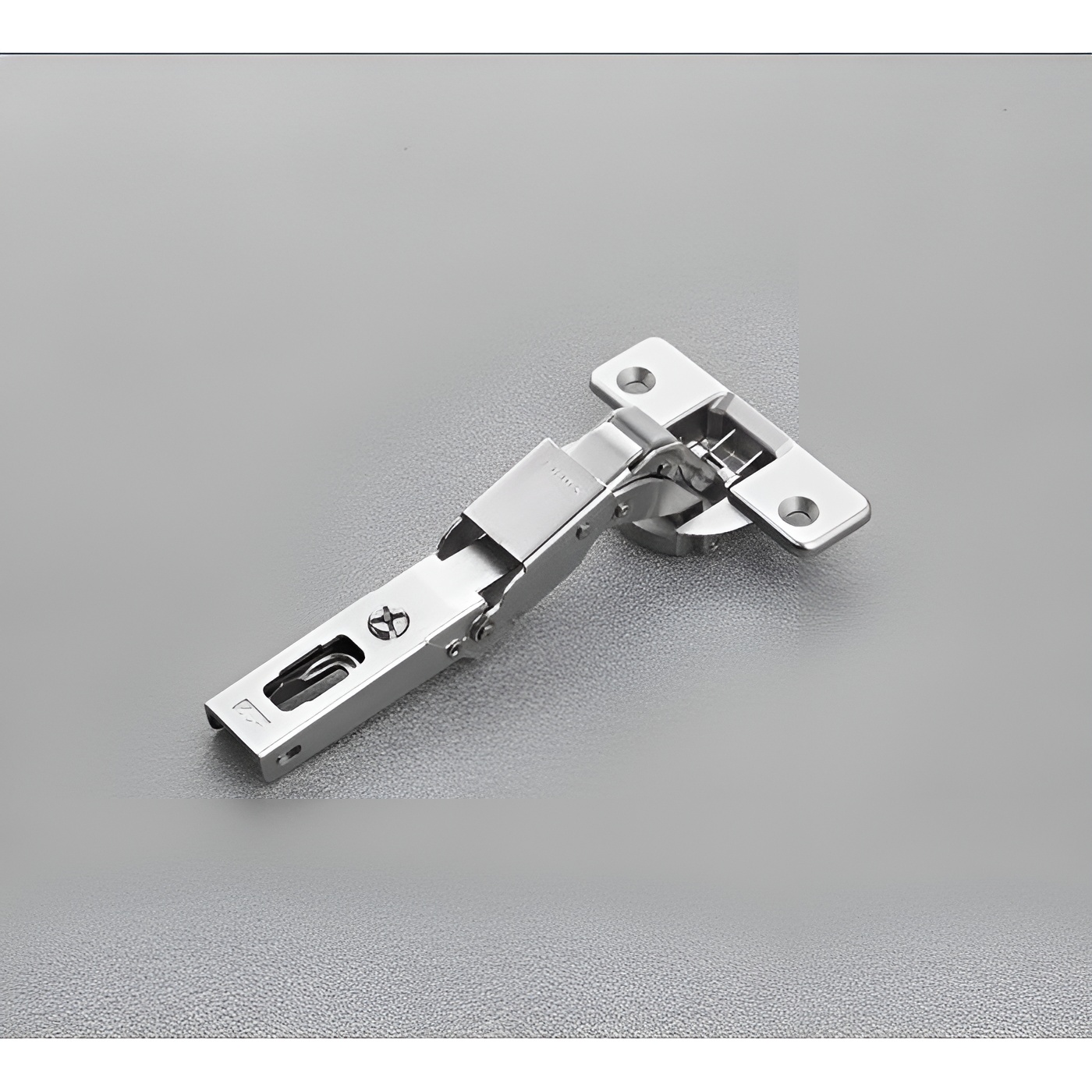

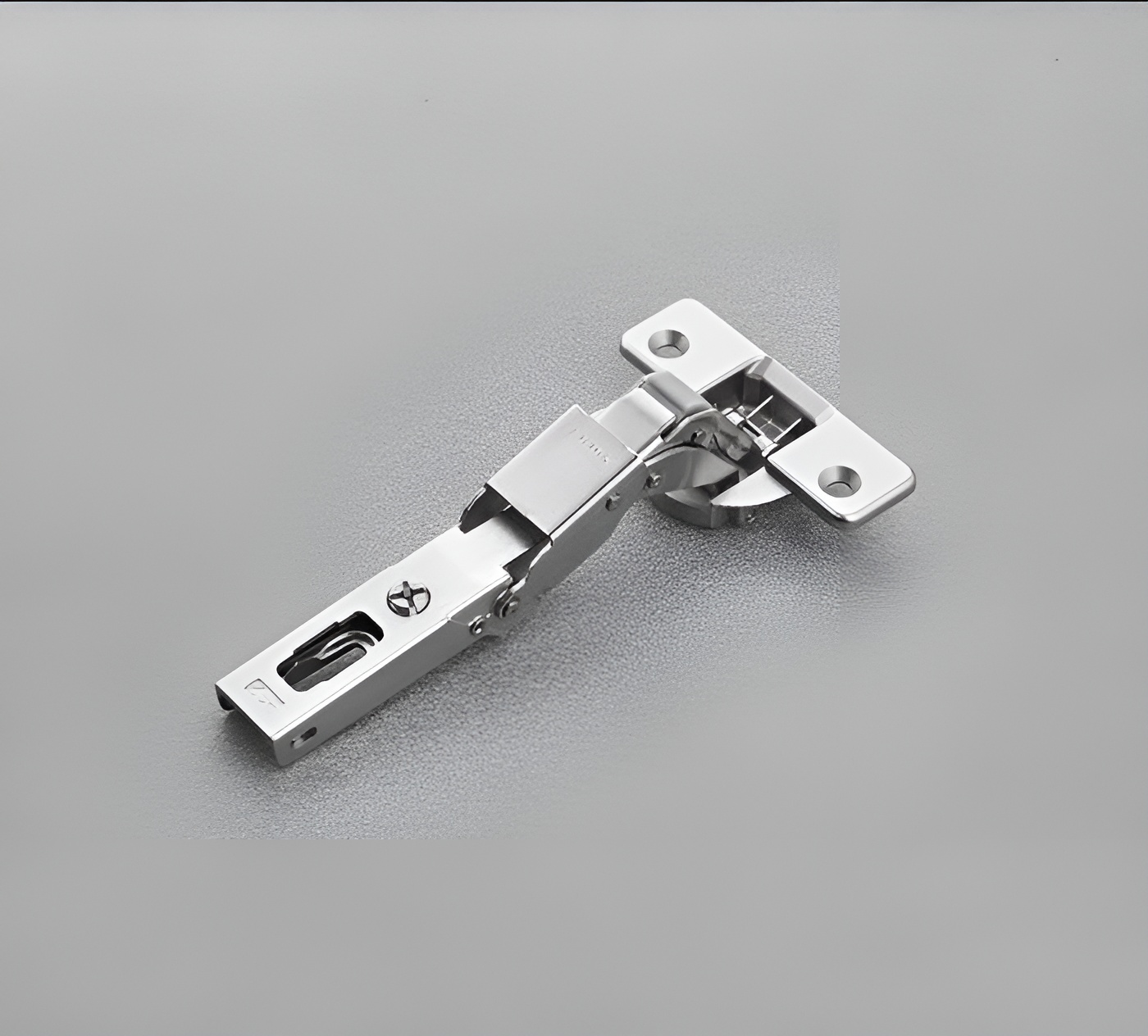

Richelieu H110CBP2A99 Series B Concealed Hinges offer a sophisticated solution for frameless cabinetry, ensuring a seamless and polished look. Designed for full overlay doors, these hinges provide a clean aesthetic while maximizing accessibility and functionality. With a hinge opening angle of +110°, they allow for easy access to cabinet interiors, making them ideal for both standard and special door applications. Crafted from durable materials with a sleek nickel finish, these hinges not only enhance the visual appeal of your cabinetry but also offer long-lasting performance. They feature a spring closing mechanism, ensuring that doors close smoothly and securely every time, while the impressive load capacity of 10 lbs makes them suitable for various cabinet types. Installation is straightforward with the screw-on fixing type and included wood screws, allowing for a hassle-free setup. The drilling distance ranges from 1/8 to 23/32 inches, accommodating a variety of door thicknesses. With an overlay of 3/4 inches, these hinges blend effortlessly into your design, maintaining a streamlined appearance. Whether you're a building professional or a knowledgeable homeowner, Richelieu H110CBP2A99 Series B Concealed Hinges are a reliable choice for enhancing your cabinetry's functionality and elegance.
Universal Hinges 110
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 3 to 18 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 11/32 in*
Milling Diameter: 1 3/8 in*
Overlay: 3/4 in
Product #: H110CBP2A99
Product number: H110CBP2A99
Product №: H110CBP2A99
Production Time: Stock
Screw/ Nail: Wood Screw (Included)
Unit 1: case - 150
Use Type: Standard Door, Special
