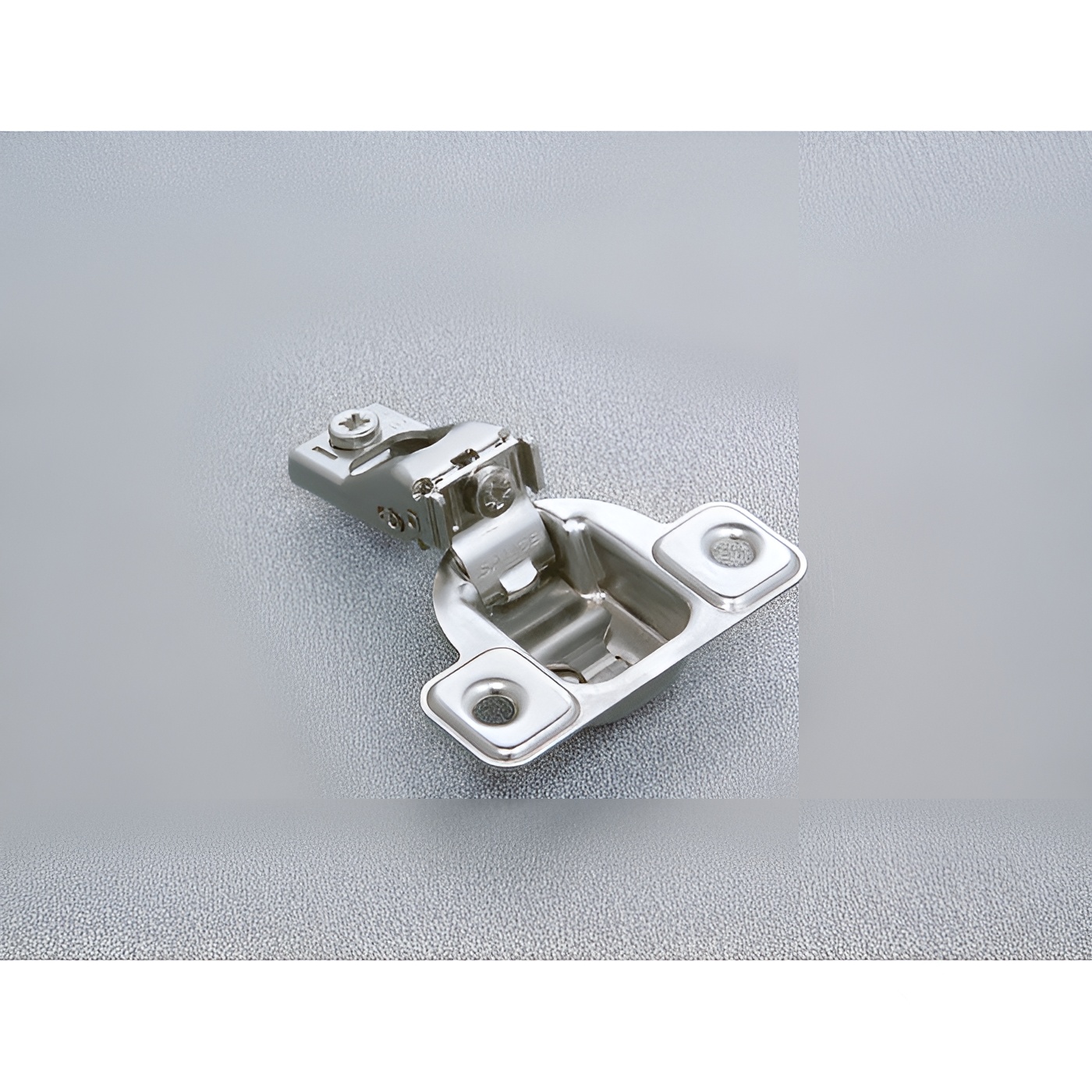

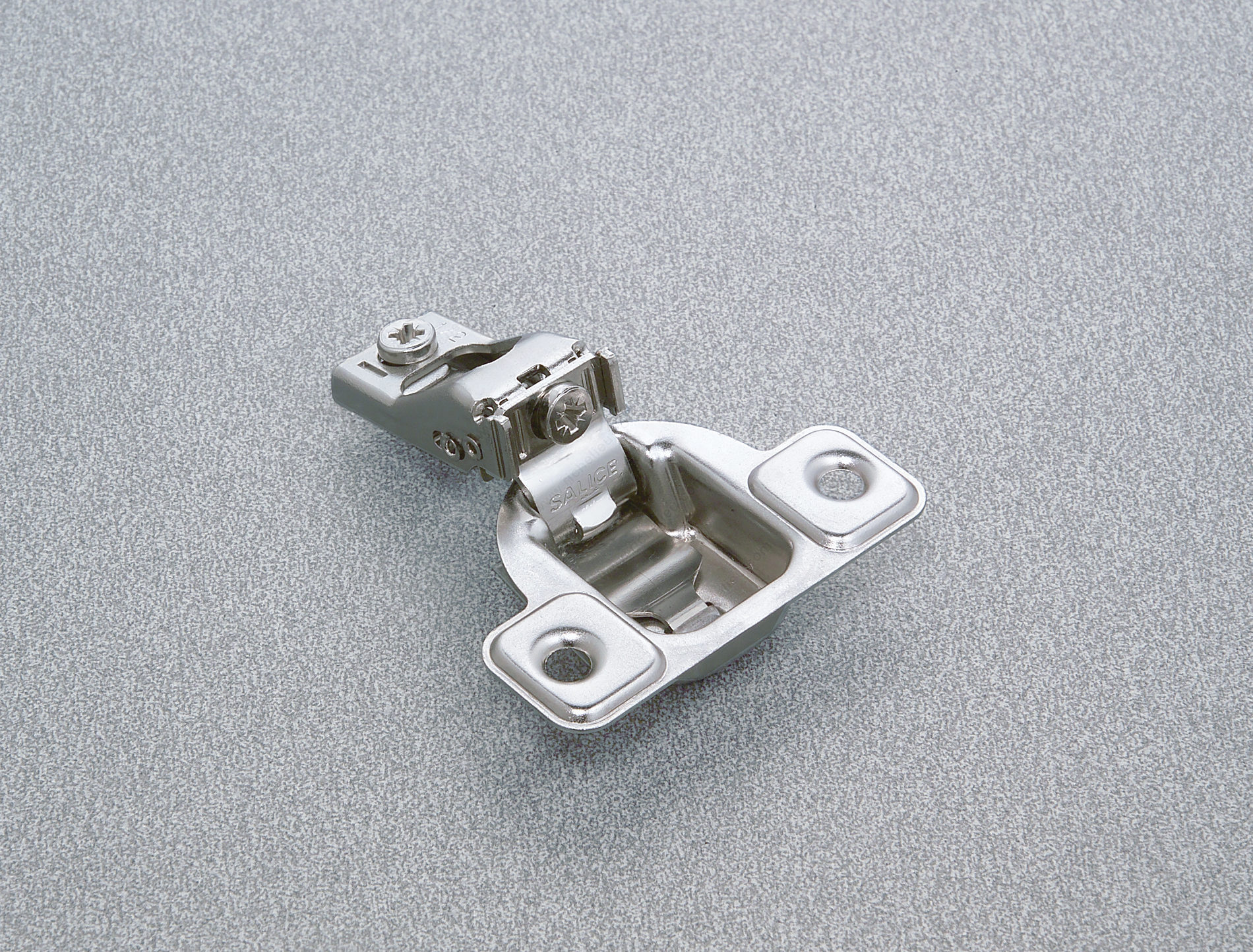

Richelieu H110CSP3799 Excentra Face Frame 2 Cams Hinges provide a reliable solution for closing all types of doors with ease and precision. Designed for face frame cabinets, these hinges allow for full overlay installations, ensuring a seamless appearance in any setting. The hinges feature a generous hinge opening angle of +106°, which enhances accessibility and functionality. Equipped with side, height, and depth adjustments, the H110CSP3799 hinges offer exceptional customization to meet your specific installation needs. With a load capacity of 10 lbs, they are robust enough for standard doors while maintaining a sleek nickel finish that complements various design aesthetics. The screw-on fixing type ensures straightforward installation, while the face mount configuration simplifies the overall setup process. Additionally, the spring closing mechanism ensures that doors close smoothly and securely, enhancing the longevity of your cabinetry. The drilling distance of 3/32 in and milling depth of 7/16 in make them versatile for various applications. Ideal for professionals and discerning homeowners alike, the Richelieu H110CSP3799 Excentra Hinges are stocked and ready to ship via UPS, making them a convenient choice for your next project. Choose Richelieu for quality and reliability in functional hardware.

S Series - Excentra Face Frame 2 Cam Hinges

Resources

• Line art
• Line art
