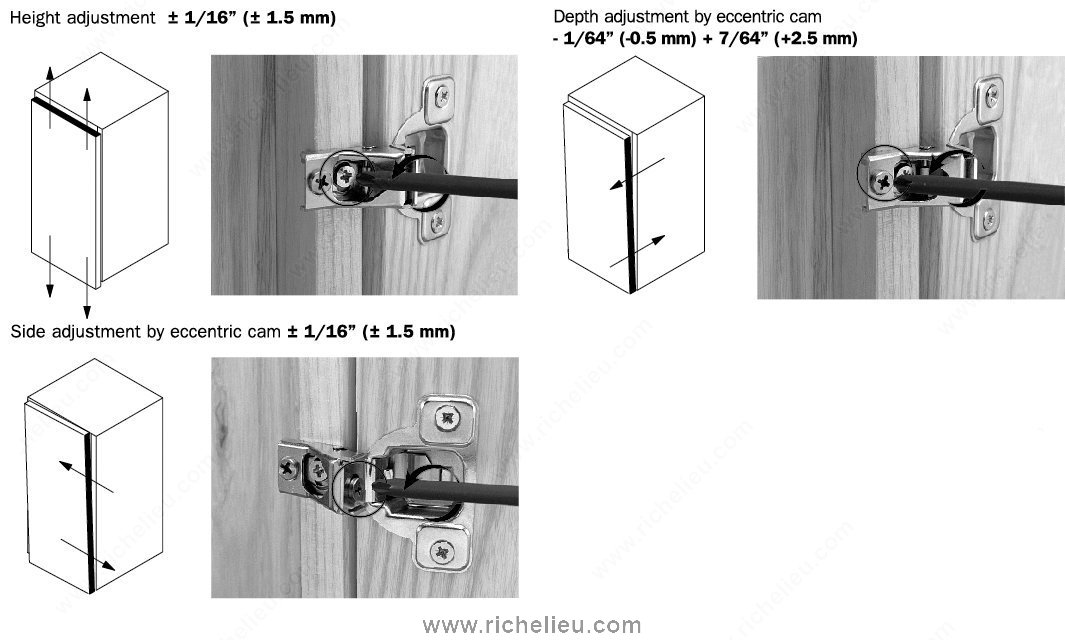

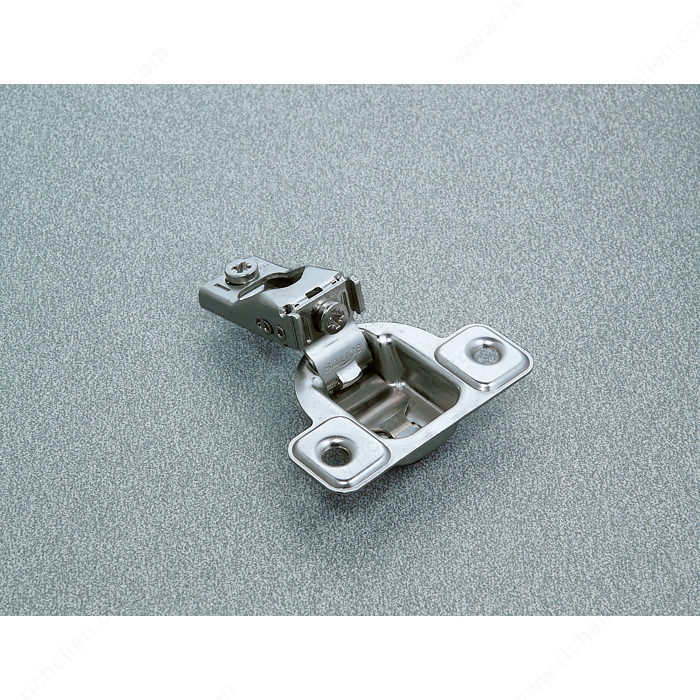

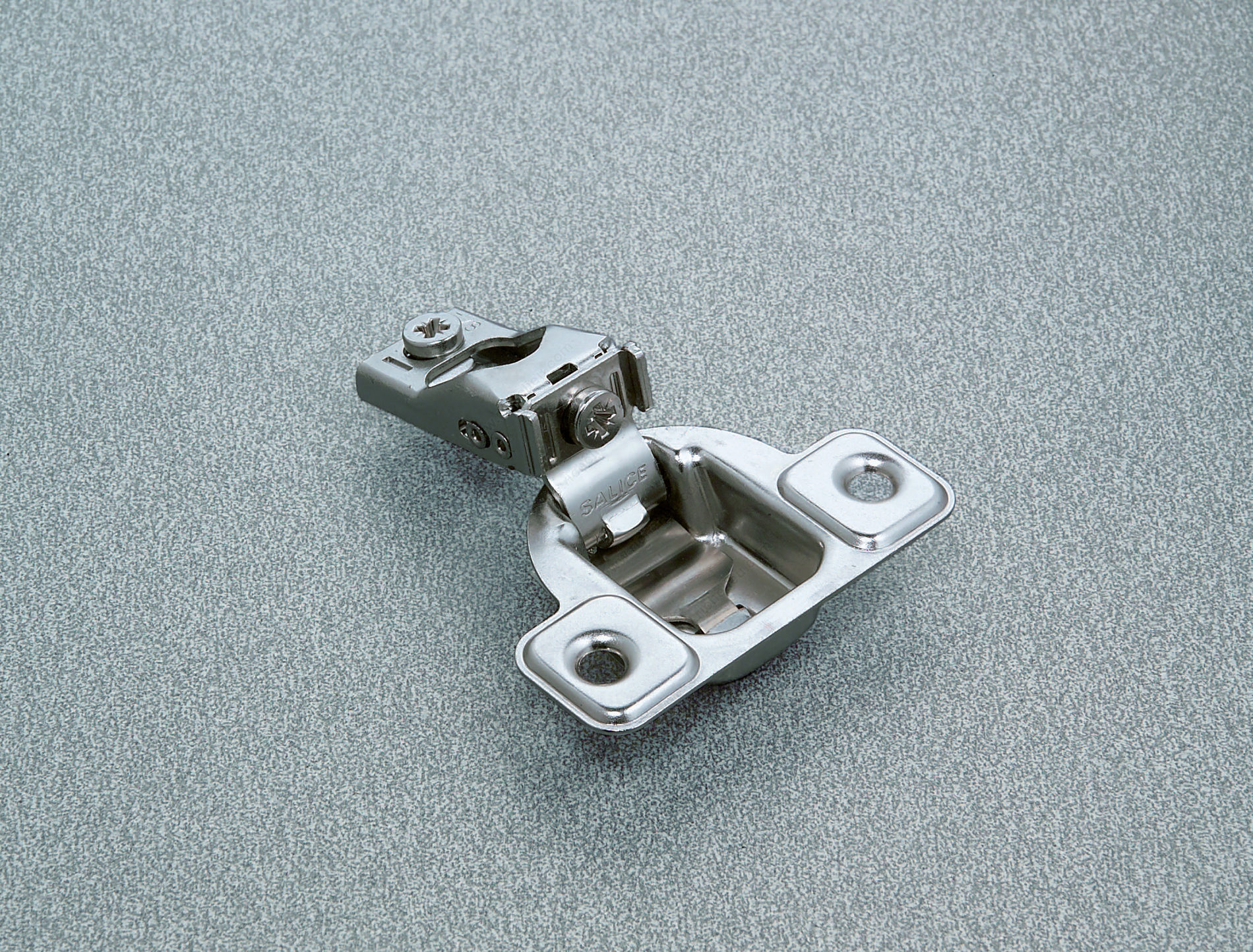

Richelieu H110CSR3599 Excentra Face Frame 2 Cams Hinges are expertly designed to ensure smooth and reliable door operation in a variety of applications. Ideal for face frame cabinets, these hinges provide a full overlay door position, making them perfect for modern cabinetry solutions. With a hinge opening angle of +106°, they allow for easy access and functionality. These hinges feature side, height, and depth adjustments, ensuring a precise fit and alignment for your doors. With a load capacity of 10 lb, they are suitable for standard doors, providing durability without compromising style. The spring-closing mechanism adds convenience, allowing doors to close securely with minimal effort. Finished in a sleek nickel, the H110CSR3599 hinges not only offer functionality but also enhance the aesthetic of your cabinetry. They are designed for face mount installation and require a drilling distance of 3/32 in*, with a milling depth of 7/16 in*. The overlay measurement of 5/8 in further ensures a seamless look. Additionally, these hinges ship via UPS and are readily available in stock, making them a practical choice for building professionals and savvy homeowners alike. Choose Richelieu for quality and innovation in your cabinetry hardware.
S Series - Excentra Face Frame 2 Cam Hinges
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 5/8 in
Product #: H110CSR3599
Product number: H110CSR3599
Product №: H110CSR3599
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
