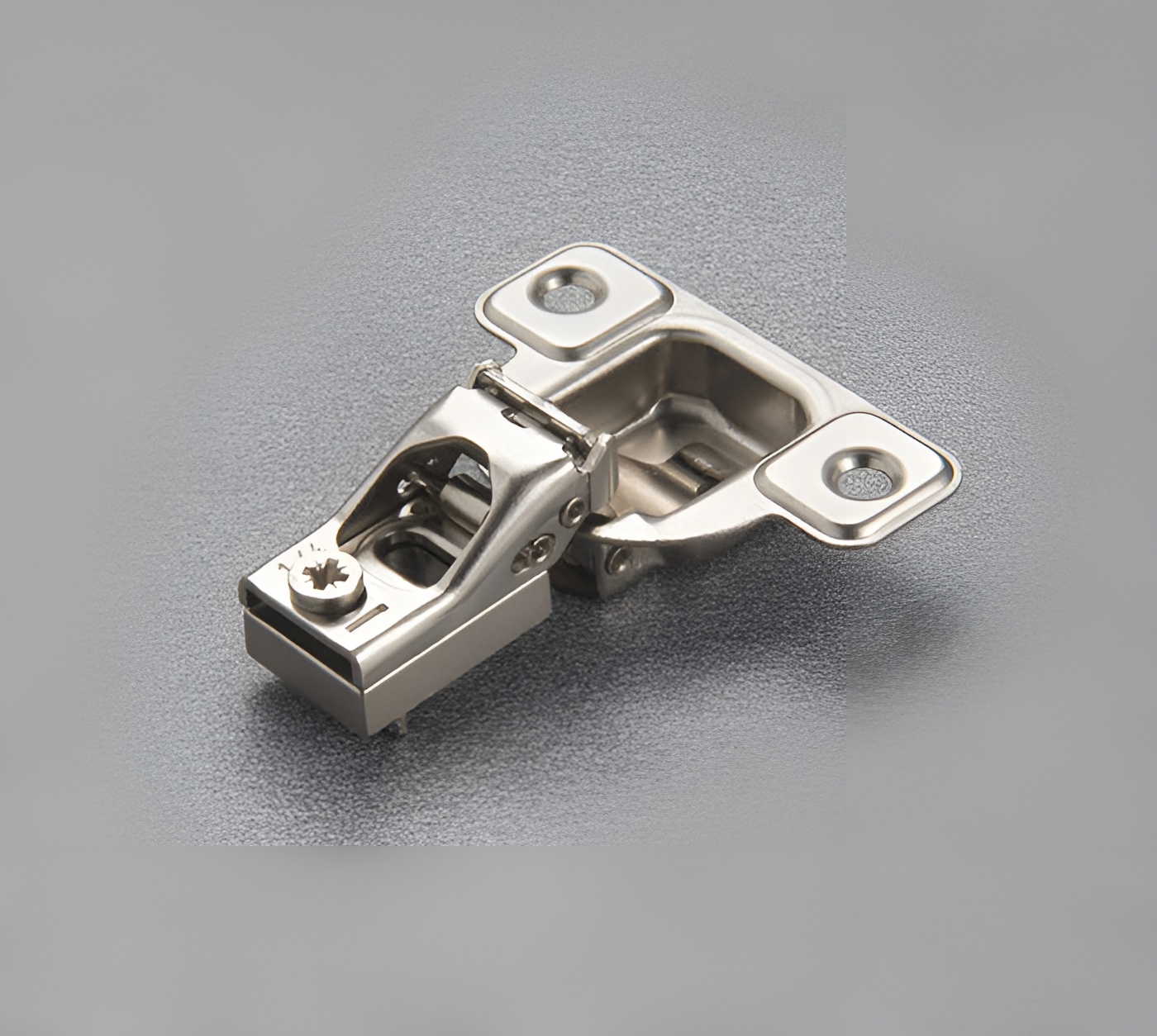

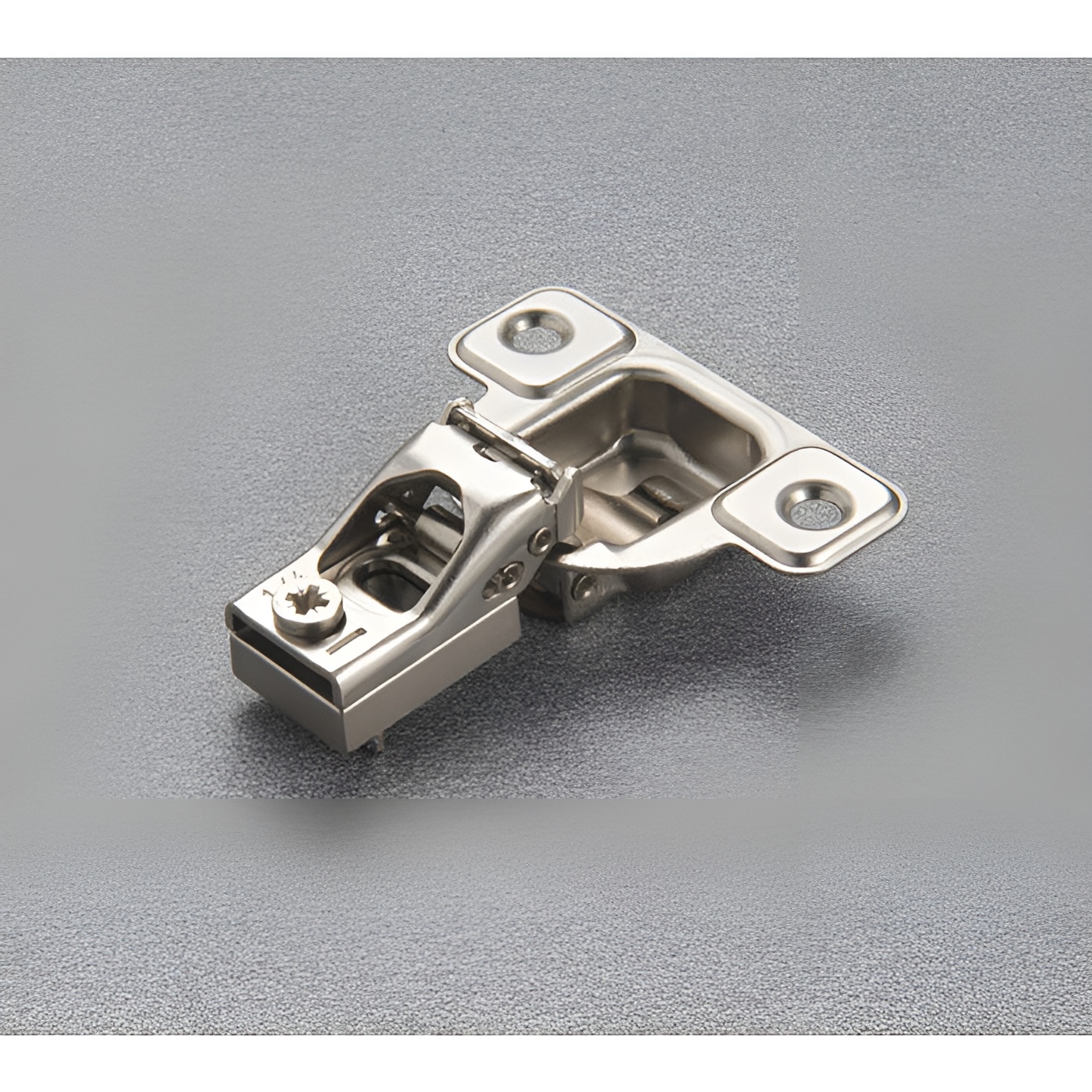

Richelieu H110CSR3Y99 Excentra Face Frame 2 Cams Hinges are expertly designed to provide reliable performance for closing a variety of doors. Ideal for face frame cabinetry, these hinges offer full overlay functionality, ensuring a seamless look that enhances any space. The innovative design allows for side, height, and depth adjustments, making installation straightforward and customizable to fit your specific needs. Constructed with a durable nickel finish, these hinges not only boast aesthetic appeal but also ensure long-lasting performance. With a hinge opening angle of +106°, they provide easy access while maintaining a load capacity of 10 lb, making them suitable for standard doors. The spring closing mechanism enhances convenience, ensuring doors close smoothly every time. Installation is straightforward, utilizing a dowel fixing type and face mount design, with a milling depth of 7/16 in and a drilling distance of 3/32 in. The overlay measures 1/4 in, further adding to their versatility. Richelieu's H110CSR3Y99 hinges are in stock and ready to ship via UPS, making them a practical choice for both professionals and knowledgeable homeowners seeking reliable and stylish hardware solutions.
S Series - Excentra Face Frame 2 Cam Hinges
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount

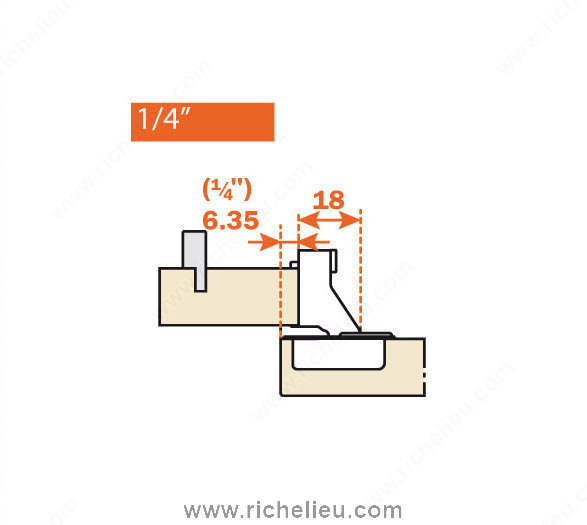

Overlay: 1/4 in
Product #: H110CSR3Y99
Product number: H110CSR3Y99
Product №: H110CSR3Y99
Production Time: Stock
Series: Excentra
Unit 1: case - 300
Use Type: Standard Door
