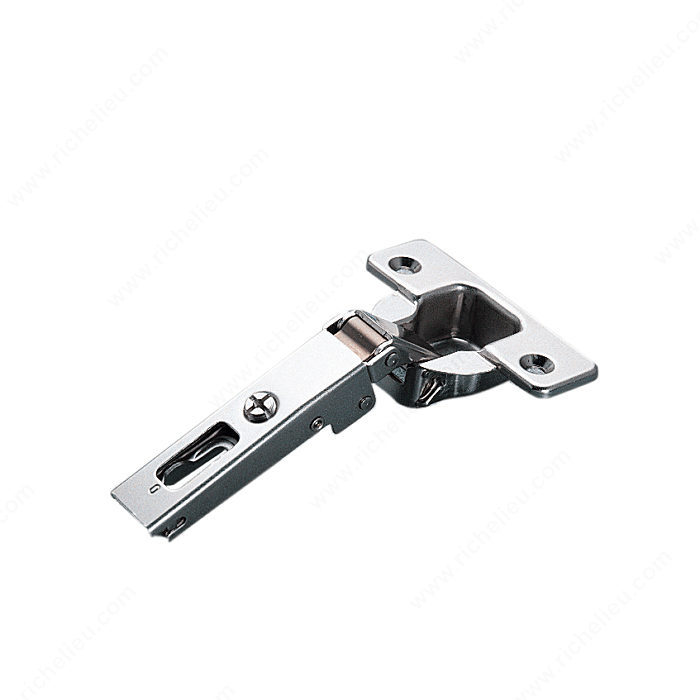

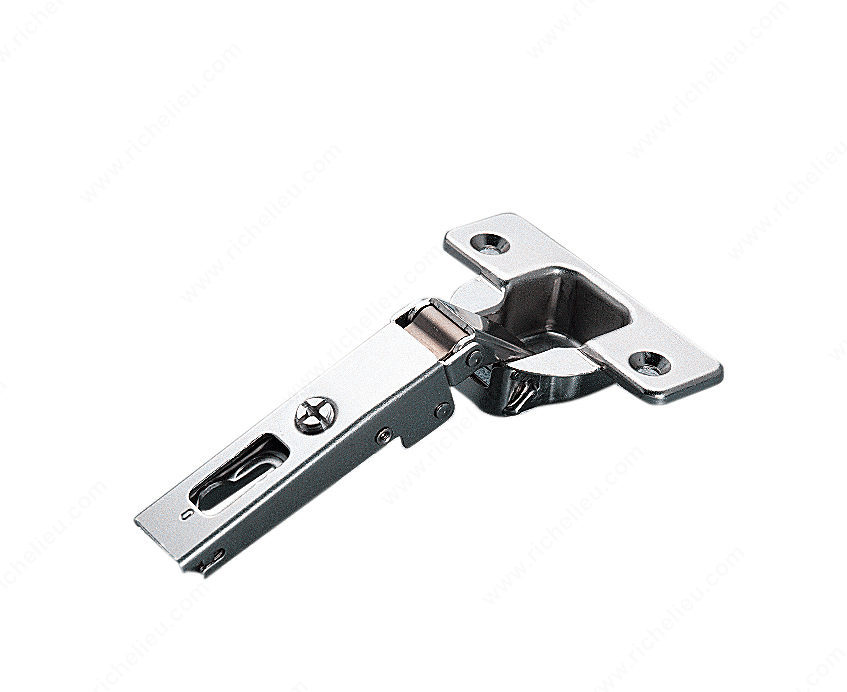

Richelieu H120C2P8A99 Series 200 Concealed Hinge 120 offers a sophisticated solution for frameless cabinetry, ensuring seamless integration and functionality. This hinge features independent and compensation adjustment, allowing for precise alignment and effortless installation. Designed with versatility in mind, it accommodates both symmetrical and asymmetrical door applications, making it an ideal choice for various projects. The hinge includes a safety stop device, enhancing its reliability and functionality. With a hinge opening angle of +120°, the H120C2P8A99 provides ample access while maintaining a sleek appearance. Its snap-on mounting system simplifies installation, and it is fully adaptable to all Domi series quick-release mounting plates, ensuring compatibility across different setups. Constructed with a durable nickel finish, this hinge not only promises longevity but also adds a touch of elegance to your cabinetry. It is designed for standard doors with a load capacity of 10 lbs, and a 0.75 in overlay, making it suitable for a wide range of applications. The drilling distance of 1/8 to 1/4 in* allows for flexibility during installation, ensuring that the hinge meets your specific needs. Elevate your cabinetry with Richelieu’s H120C2P8A99 concealed hinge, a perfect blend of functionality and design.
200 Series - Concealed Hinges 120
Brand: Salice
Cabinet Thickness: 5/8 to 1 1/32 in*
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +120°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H120C2P8A99
Product number: H120C2P8A99
Product №: H120C2P8A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
