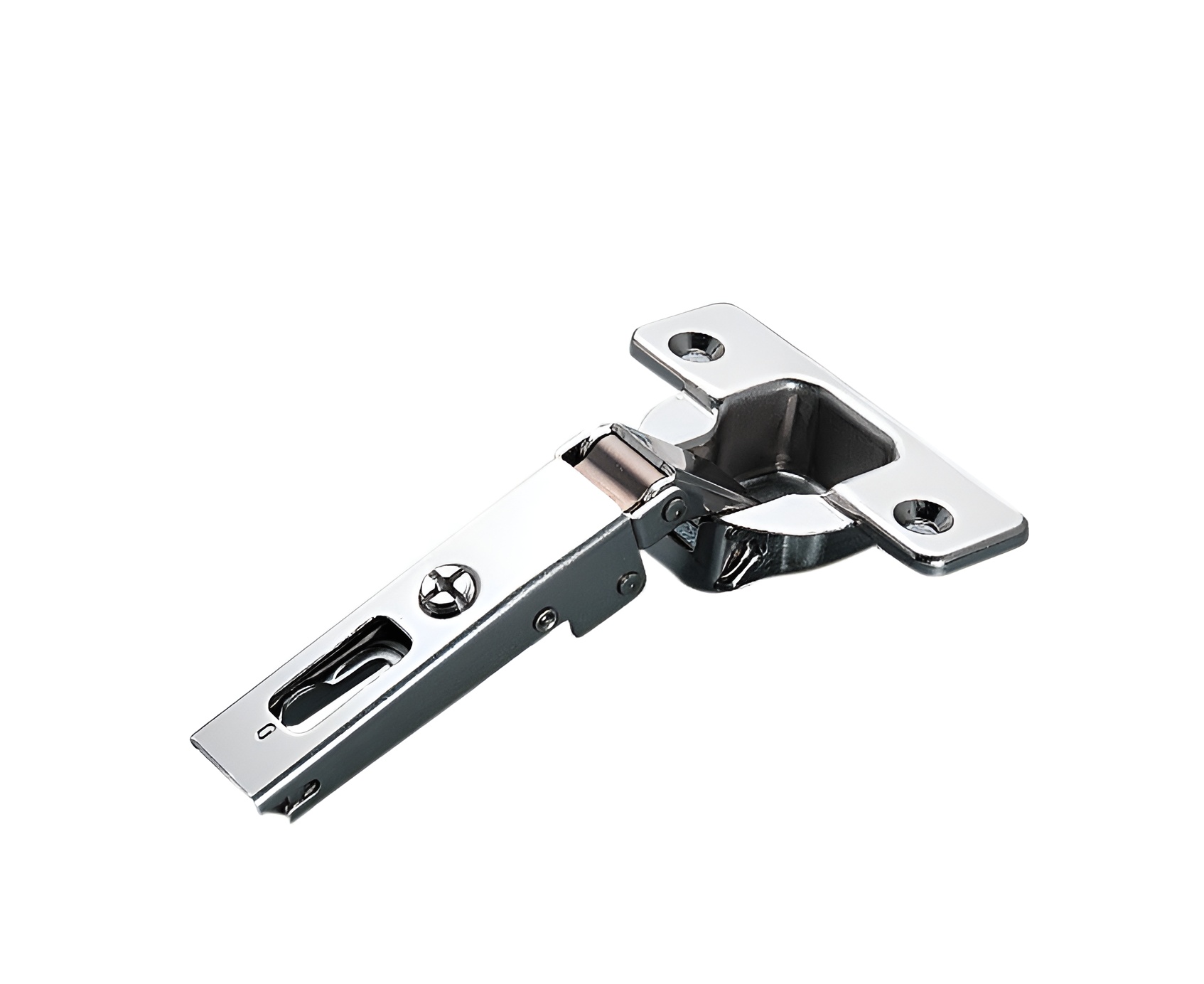

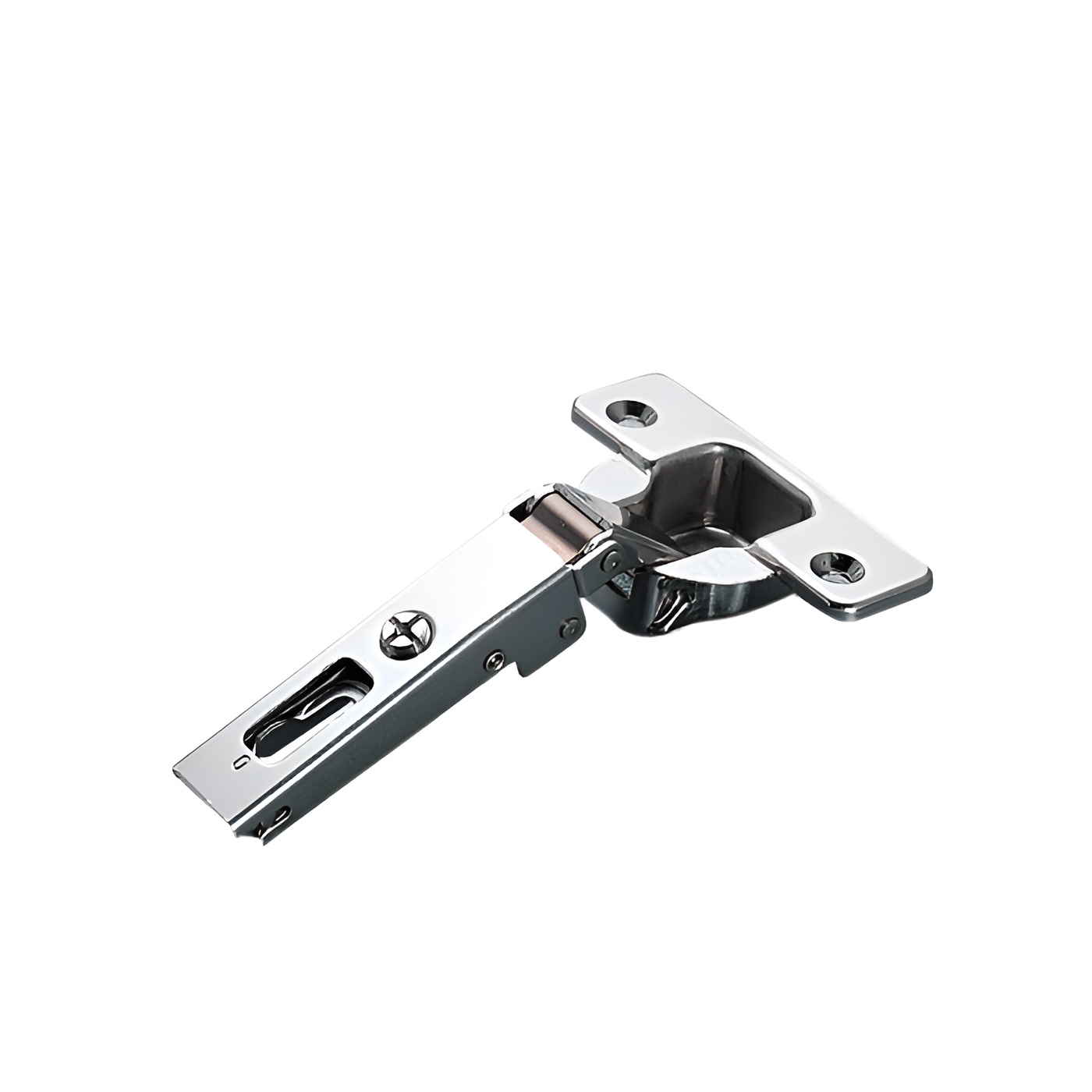

Richelieu H120C2P9A99 Series 200 Concealed Hinge 120 is an exemplary choice for modern cabinetry, offering a reliable solution for frameless cabinet designs. This hinge features independent and compensation adjustments that ensure a precise fit, accommodating full overlay doors with ease. With a generous opening angle of +120°, it provides ample access to cabinet interiors, enhancing functionality without sacrificing aesthetics. Constructed with a durable nickel finish, the H120C2P9A99 not only delivers a sleek appearance but also withstands the rigors of daily use. The snap-on mounting system simplifies installation, while the screw-on fixing type guarantees a secure attachment. This hinge is compatible with all Domi series quick-release mounting plates, making it versatile for various applications. Designed with a safety stop device, it ensures both symmetrical and asymmetrical door movements, providing added peace of mind. With a load capacity of 10 lb, it is suitable for standard doors, making it a dependable choice for residential and commercial projects alike. The H120C2P9A99 hinge is readily available for shipment via UPS, with a production time categorized as stock, ensuring quick access for your next project. For those seeking functionality and style, this concealed hinge stands out in any setting.
200 Series - Concealed Hinges 120
Brand: Salice
Cabinet Thickness: 5/8 to 1 1/32 in*
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +120°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H120C2P9A99
Product number: H120C2P9A99
Product №: H120C2P9A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 600
Use Type: Standard Door
