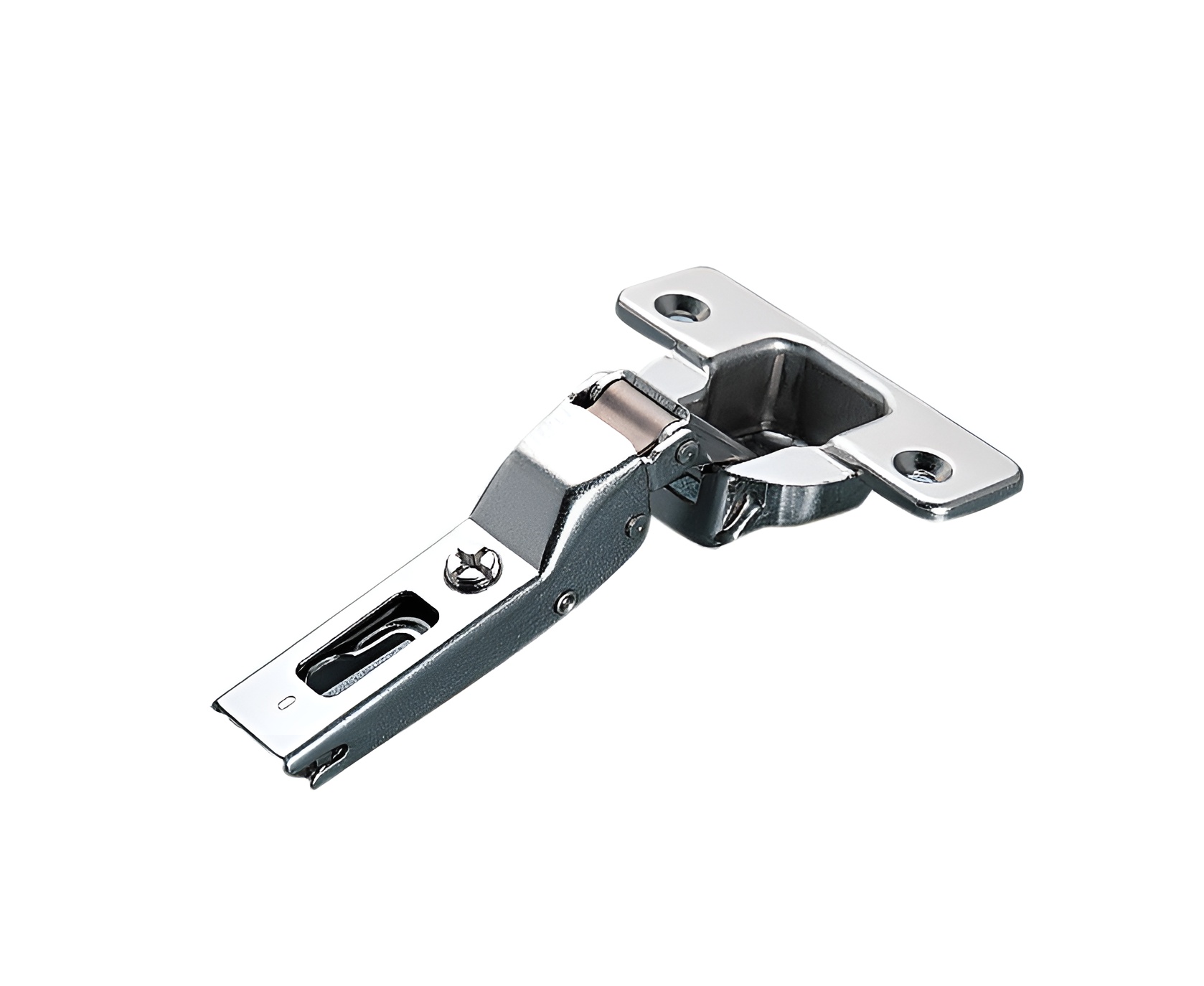

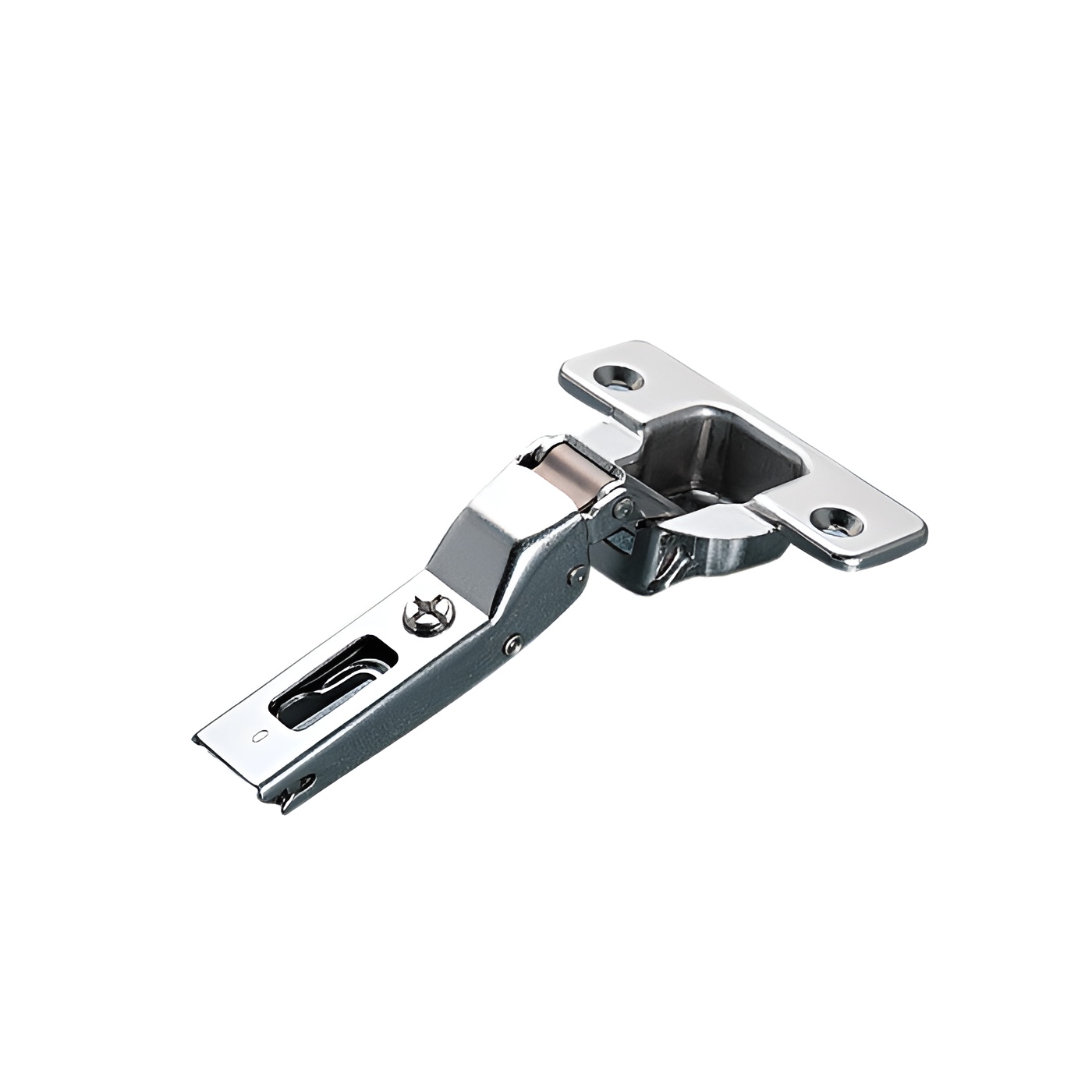

Richelieu H120C2R9G99 Series 200 Concealed Hinge 120 offers an innovative solution for frameless cabinets requiring concealed hinges. This hinge features independent and compensation adjustment, allowing for precise alignment during installation. With a maximum hinge opening angle of +120°, it provides excellent access while ensuring smooth operation with its spring closing mechanism. Designed for half overlay doors, the H120C2R9G99 is adaptable to all Domi series quick-release mounting plates, making it a versatile choice for various applications. The snap-on mounting feature simplifies installation, saving valuable time on the job site. Additionally, this hinge includes a safety stop device, accommodating both symmetrical and asymmetrical door setups, enhancing its functionality and safety. With a load capacity of 10 lb and a drilling distance of 1/8 to 1/4 in, the hinge is robust enough for standard door uses. Finished in nickel, it not only provides durability but also complements modern cabinetry aesthetics. The fixing type is dowel, ensuring secure attachment. For building professionals and knowledgeable homeowners looking for reliable and stylish hardware solutions, the Richelieu H120C2R9G99 Series 200 Concealed Hinge is an excellent choice that combines quality, adaptability, and ease of use.
200 Series - Concealed Hinges 120
Brand: Salice
Cabinet Thickness: 5/8 to 1 1/32 in*
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay

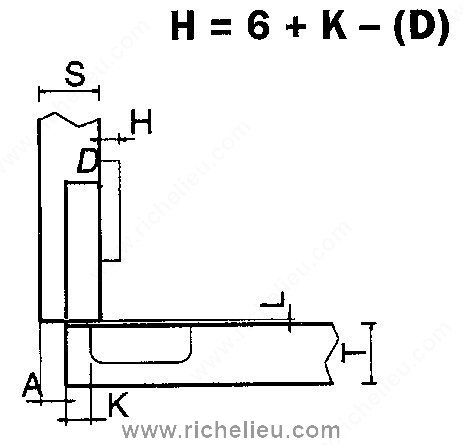

Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +120°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H120C2R9G99
Product number: H120C2R9G99
Product №: H120C2R9G99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
