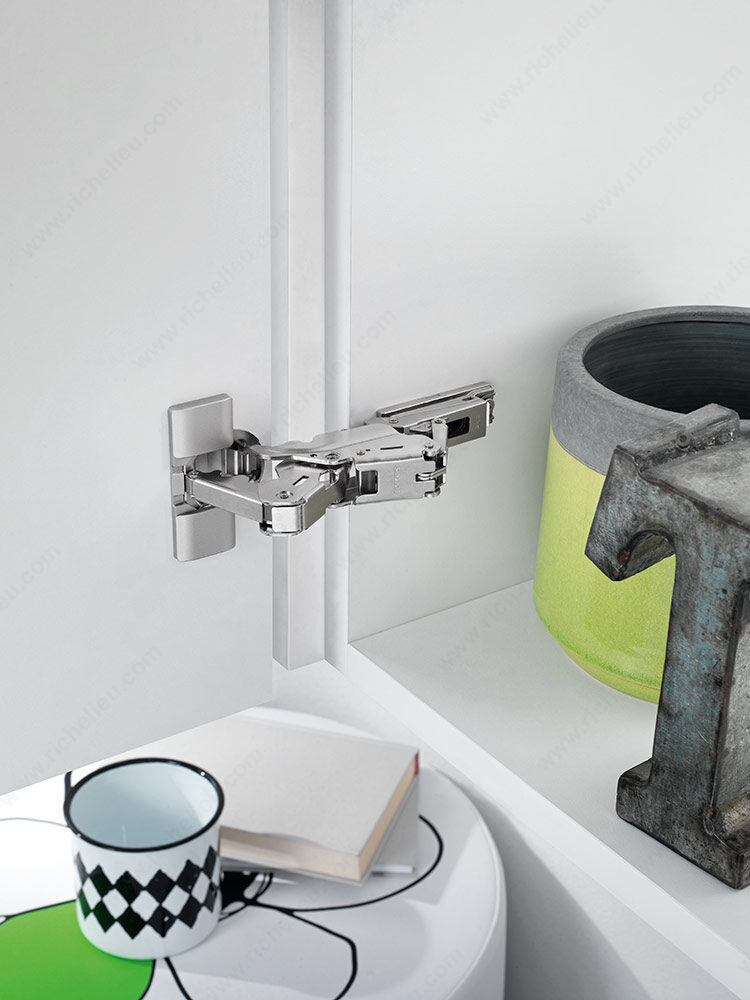

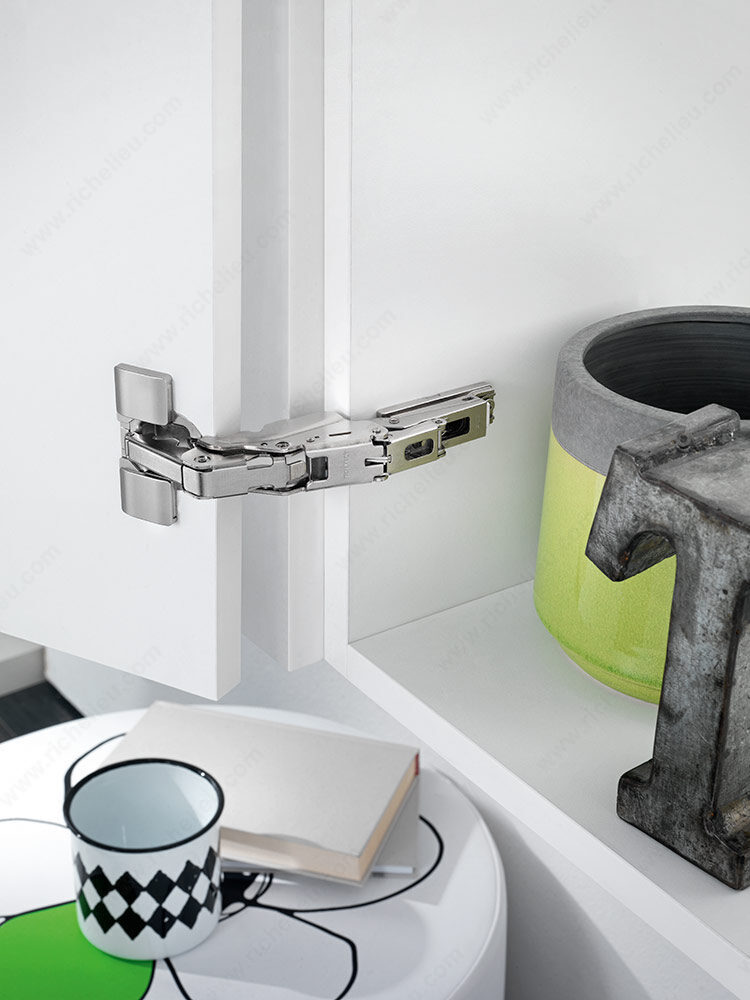

Richelieu H155C2RKA99 Series 200 Concealed Hinge 155 is expertly designed for frameless cabinetry, offering a seamless and stylish solution for modern interiors. This hinge features a full overlay design, allowing doors to cover the cabinet edges fully, enhancing aesthetic appeal while maintaining functionality. With a remarkable hinge opening angle of +155°, accessing your cabinet contents is effortless. Constructed with a durable nickel finish, this hinge not only ensures longevity but also adds a touch of sophistication to your cabinetry. It accommodates a load capacity of up to 10 lb, making it suitable for a variety of standard and thick doors. The spring-closing mechanism provides added convenience, ensuring doors close smoothly and securely. Installation is simplified with a dowel fixing type and specific drilling distances between 1/8 to 11/32 inches. The hinge is designed for a milling depth of 17/32 inches and a milling diameter of 1 3/8 inches, making it easy to integrate into your cabinetry. With an overlay of 0.75 inches, the Richelieu H155C2RKA99 is an ideal choice for those seeking both functionality and elegance in their kitchen or cabinetry projects. This product is available for quick shipping via UPS, ensuring you can start your project without delay.
200 Series - Concealed Hinges 155
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 3/32 in*

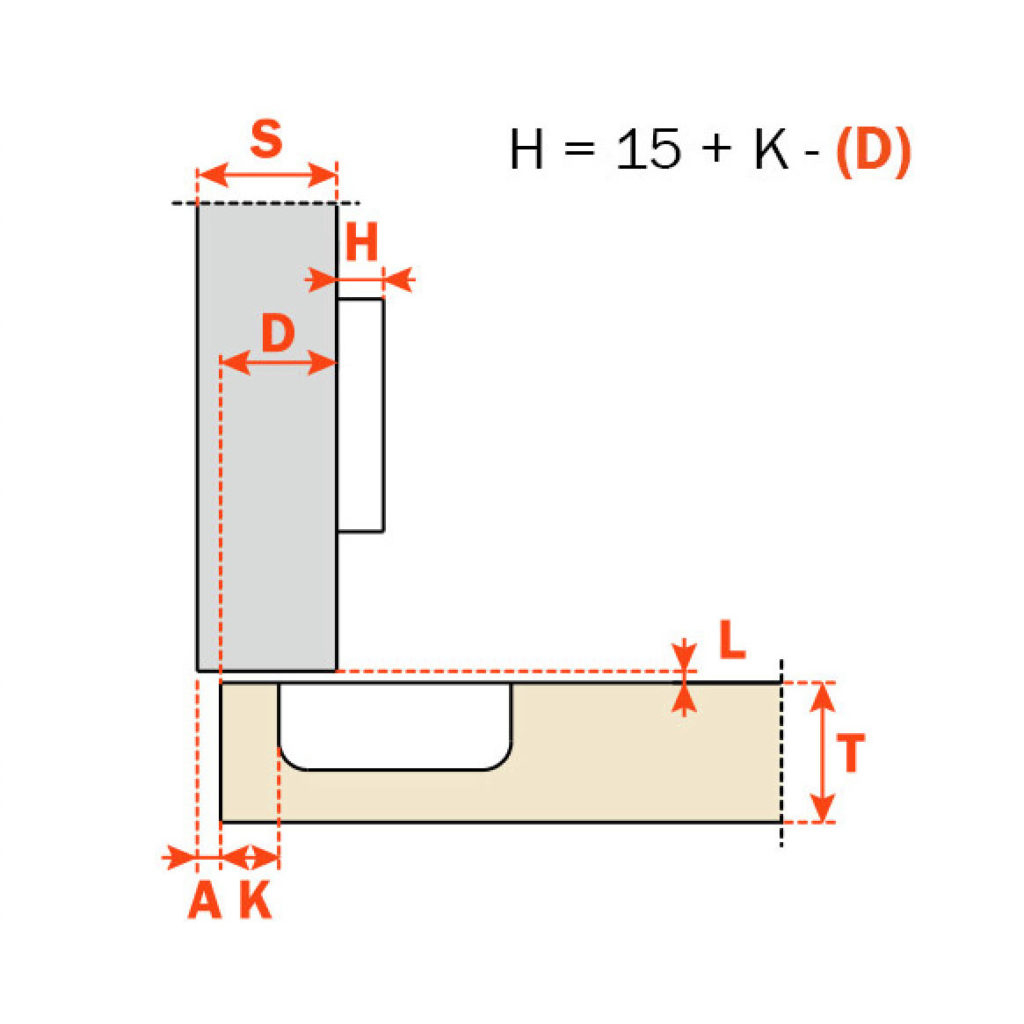

Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Dowels
Hinge Opening Angle: +155°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 13.5 mm
Milling Diameter: 35 mm
Mounting Type: Frameless
Overlay: 0.75 in
Product #: H155C2RKA99
Product number: H155C2RKA99
Product №: H155C2RKA99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door, Zero Protrusion Door, Thick Door
