Richelieu H155C2RKAE9 Series 200 Concealed Hinge 155 offers a perfect blend of functionality and style for frameless cabinets. Designed for full overlay applications, this hinge features a soft-closing mechanism that ensures doors close smoothly and quietly, enhancing user experience and prolonging the life of your cabinetry. With a generous hinge opening angle of +155°, it provides excellent accessibility to cabinet interiors, making it ideal for both standard and thick doors. This hinge accommodates a drilling distance ranging from 1/8 to 11/32 inches, ensuring compatibility with various installation needs. It is constructed for ease of use, employing a dowel fixing type for secure attachment. The hinge supports a load capacity of up to 10 pounds, making it suitable for a range of cabinet door styles. Finished in a sleek nickel tone, the H155C2RKAE9 enhances the overall aesthetic of your cabinetry while maintaining a minimal profile. The milling depth of 17/32 inches and a milling diameter of 1 3/8 inches provide precise installation dimensions. With a 0.75-inch overlay, this hinge seamlessly integrates into your cabinet design. Choose the Richelieu H155C2RKAE9 for a reliable and stylish hardware solution that meets your professional and aesthetic needs.
200 Series - Silentia+ Concealed Hinges 155
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 9 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +155°
Load Capacity: 10 lb
Mechanism: Soft-Closing

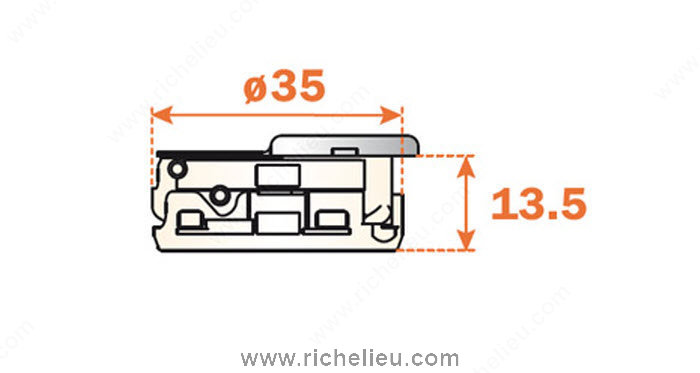

Milling Depth: 13.5 mm
Milling Diameter: 35 mm
Mounting Type: Frameless
Overlay: 0.75 in
Product #: H155C2RKAE9
Product number: H155C2RKAE9
Product №: H155C2RKAE9
Production Time: Stock
Silentia+ Series: 200 Series
Unit 1: case - 100
Use Type: Zero Protrusion Door, Thick Door
