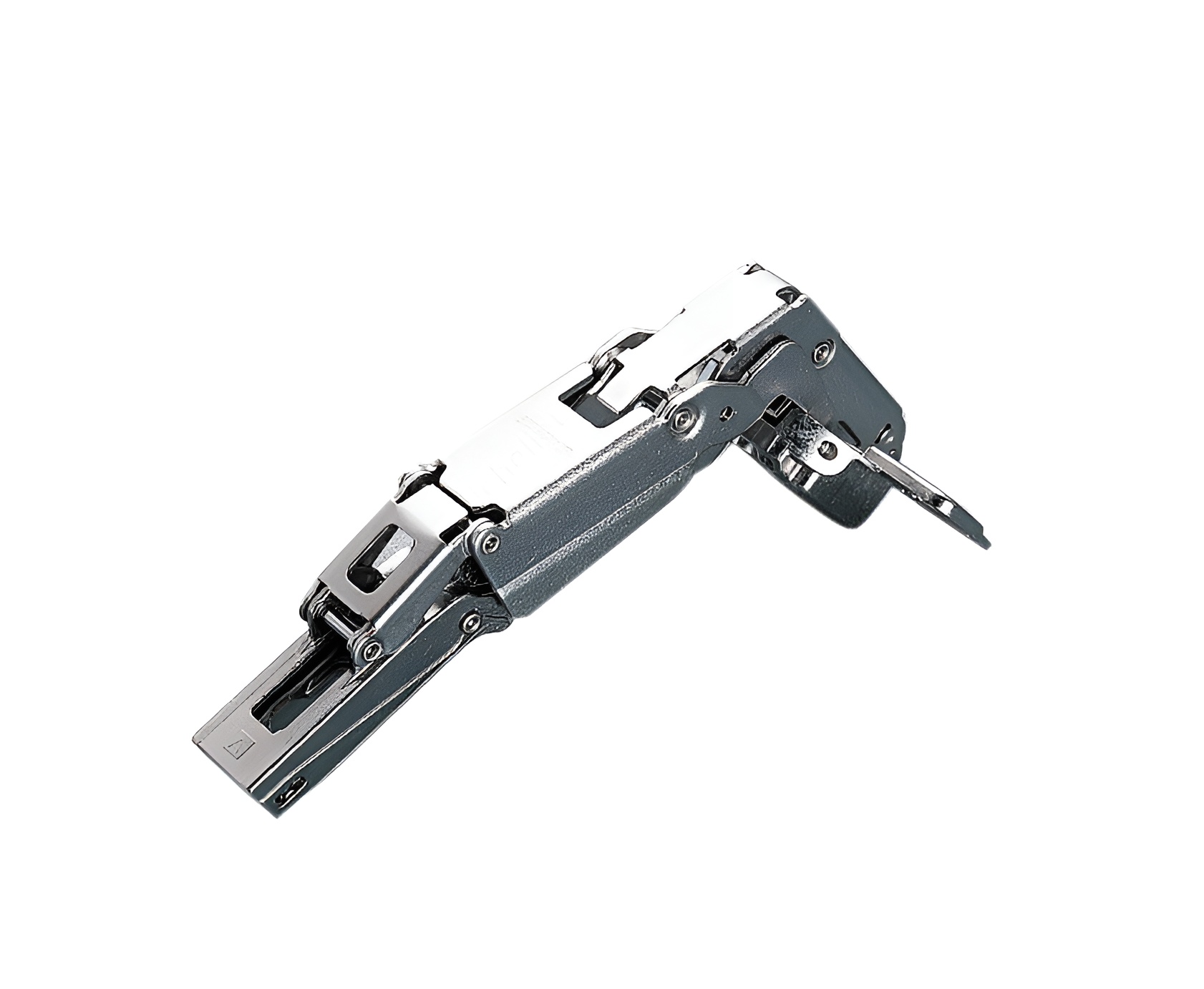

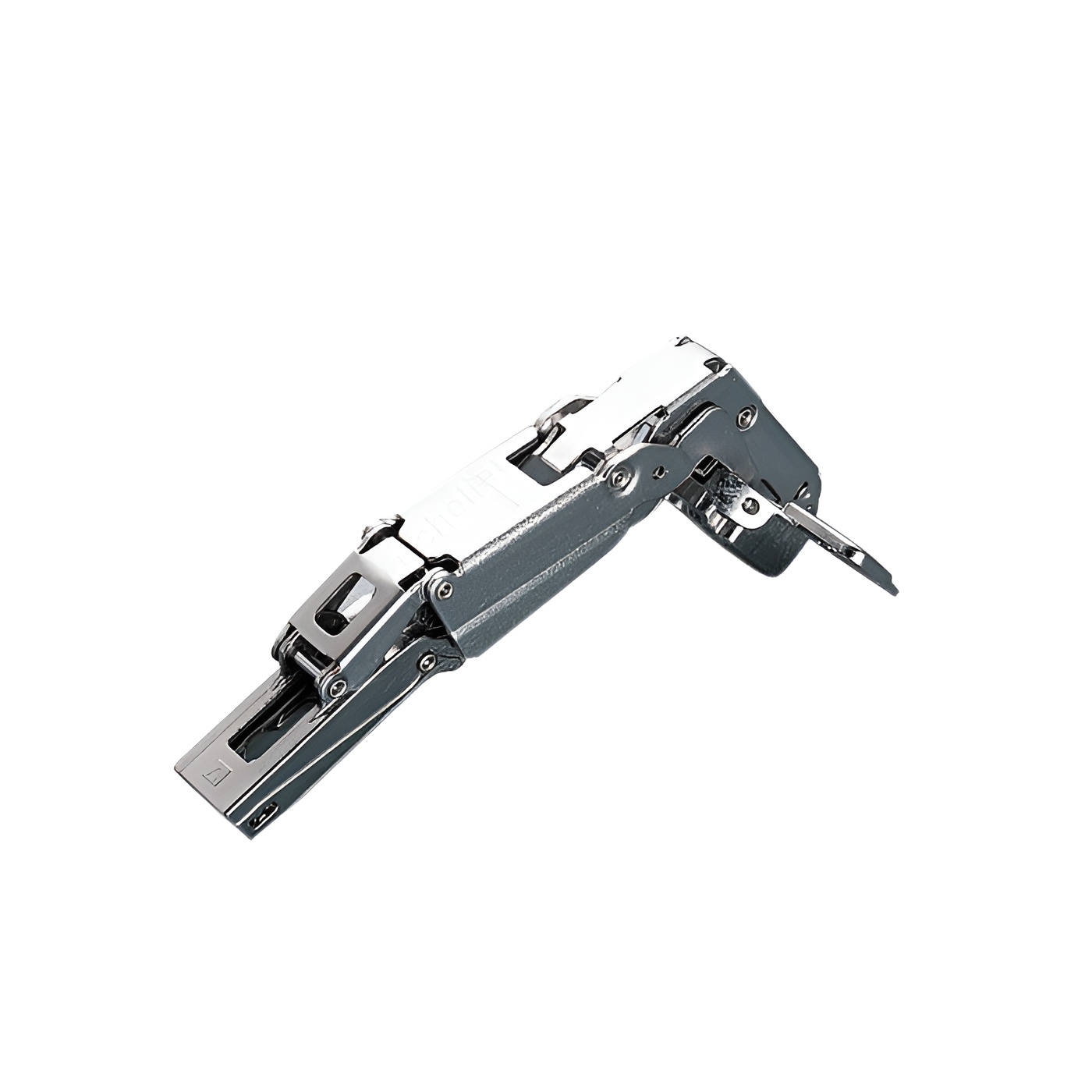

Richelieu H165C27FA99 Serie 200 Concealed Hinges - 165 offer a seamless solution for frameless cabinetry, providing both functionality and aesthetic appeal. Designed for full overlay doors, these hinges feature an 11 mm die-cast cup, ensuring a robust and reliable installation. With a hinge opening angle of +165°, they allow for maximum accessibility while maintaining a sleek look. The H165C27FA99 hinges accommodate a drilling distance of 1/8 to 5/16 inches, making them versatile for various cabinet designs. They are equipped with a spring closing mechanism, enhancing user convenience by ensuring doors close smoothly and securely. With a load capacity of 10 lbs, these hinges are perfect for standard doors, providing dependable support without compromising on style. For optimal performance, base plates should be ordered separately, and these hinges can be easily mounted using a quick assembly fixing type. Packaged in cases of 100, Richelieu's concealed hinges are a practical choice for professionals seeking efficiency and quality in their projects. Finished in nickel, they not only perform well but also complement modern cabinetry aesthetics, making them an essential addition to any kitchen or furniture design.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Quick Assembly
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C27FA99
Product number: H165C27FA99
Product №: H165C27FA99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
