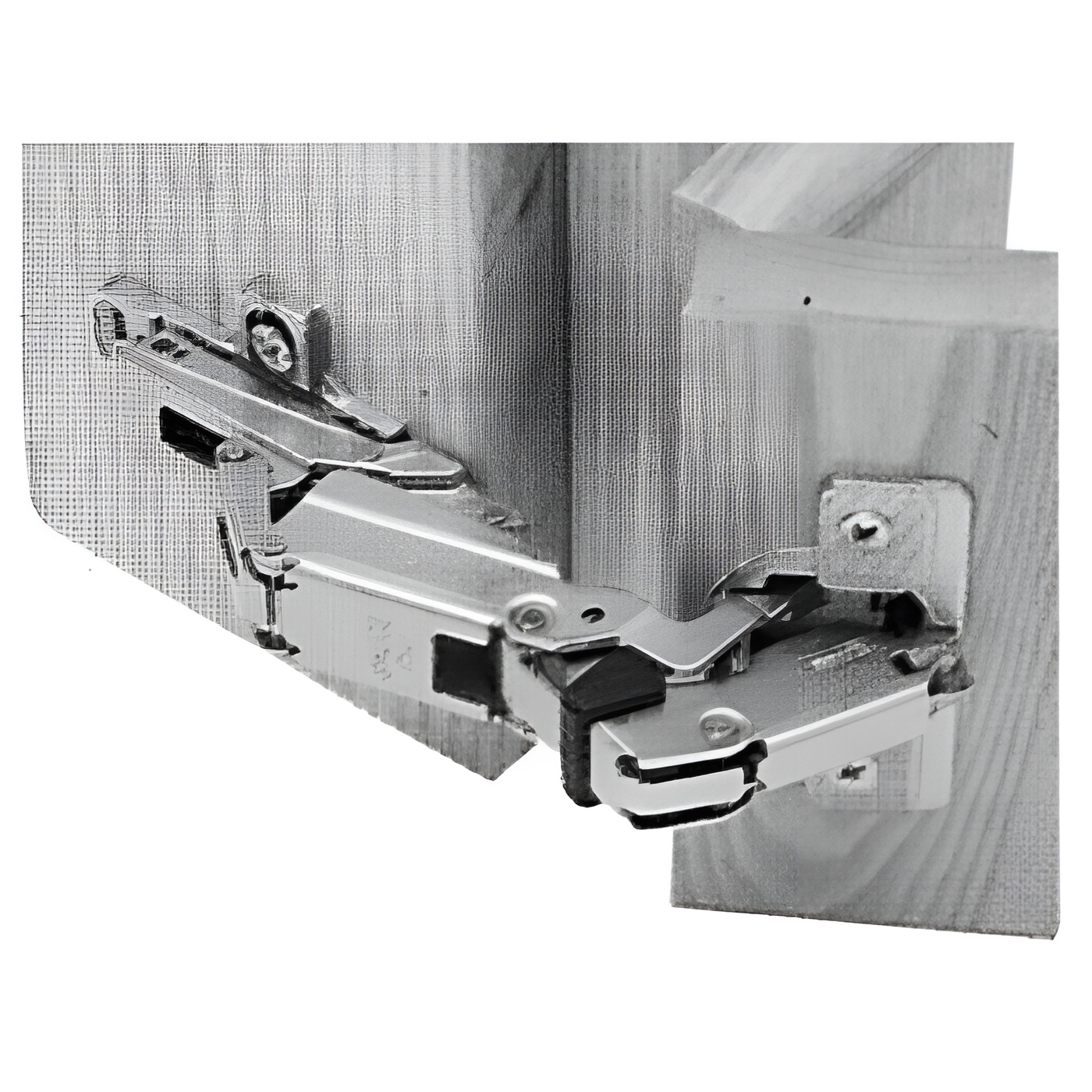

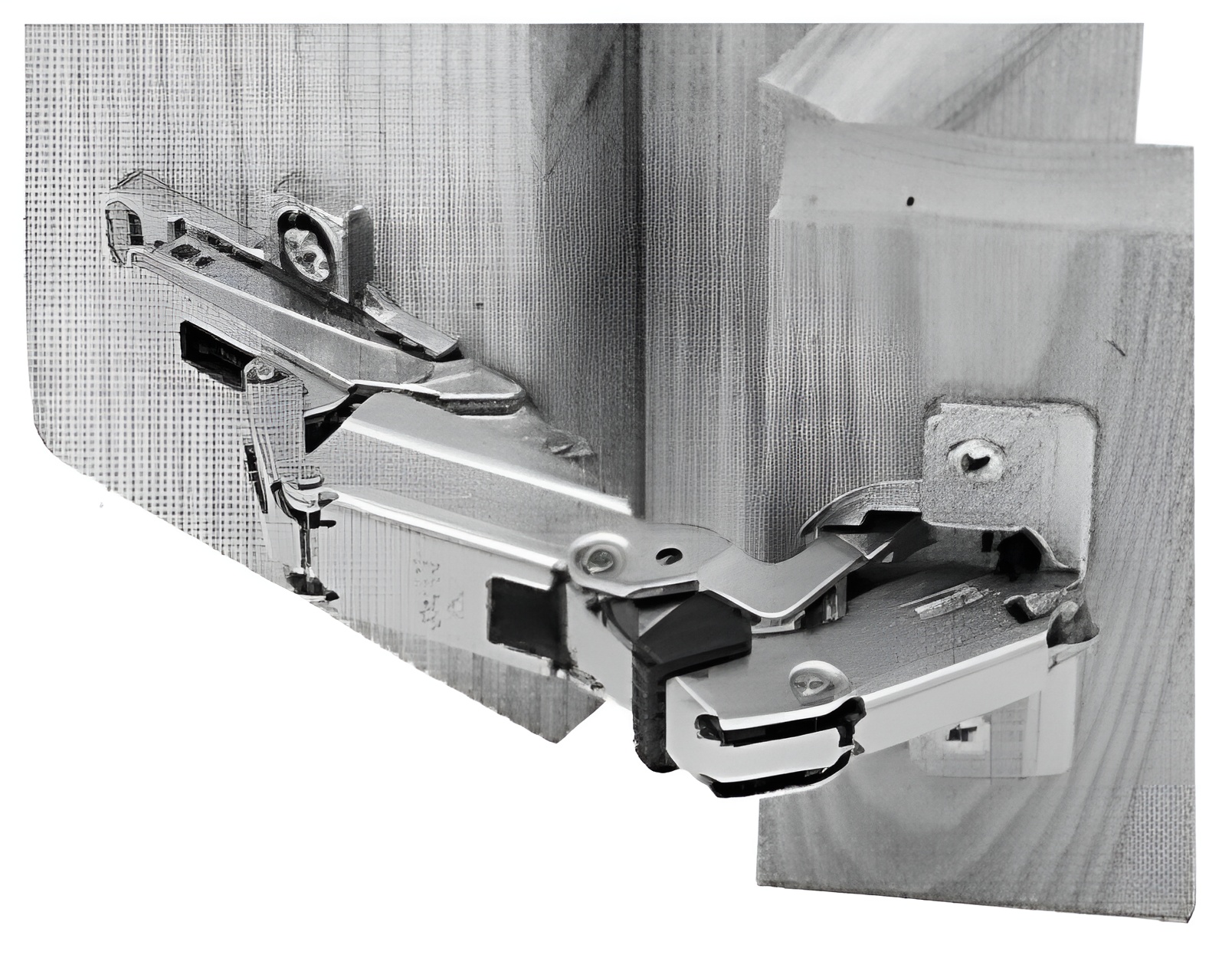

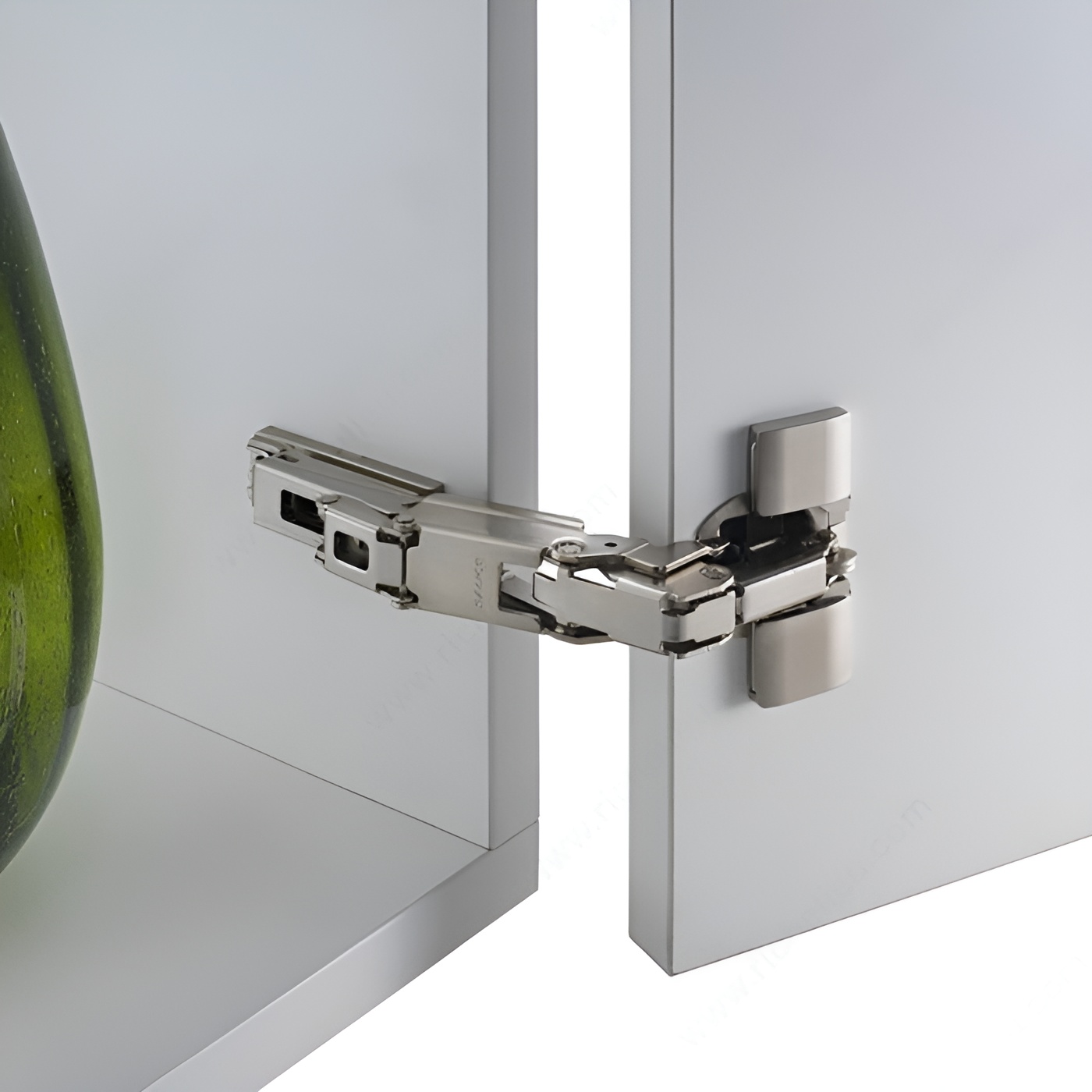

Richelieu H165C27FD99 Serie 200 Concealed Hinges - 165 offer a robust solution for frameless cabinet installations. Designed with a 11 mm die-cast cup, these hinges ensure durability and reliable performance. With a hinge opening angle of +165°, they allow for easy access while maintaining a sleek and concealed appearance. The drilling distance is adjustable between 1/8 to 5/16 inches, accommodating a range of cabinet designs. Notably, these hinges utilize the same formulas as the 94°, 110°, and 120° hinges for base plates, ensuring compatibility and ease of installation. Base plates are ordered separately, allowing for customizable setups based on specific requirements. Constructed with a nickel finish, these hinges not only provide a modern aesthetic but also offer corrosion resistance. The quick assembly fixing type simplifies the installation process, making them ideal for both professionals and knowledgeable homeowners. With a load capacity of 10 lbs, they are suitable for standard doors, ensuring reliable performance in everyday use. Packaged in cases of 100, the Richelieu H165C27FD99 hinges are a practical choice for anyone looking to enhance their cabinetry with quality hardware. Whether you’re working on a new project or a renovation, these concealed hinges deliver functionality and style.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Quick Assembly
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C27FD99
Product number: H165C27FD99
Product №: H165C27FD99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
