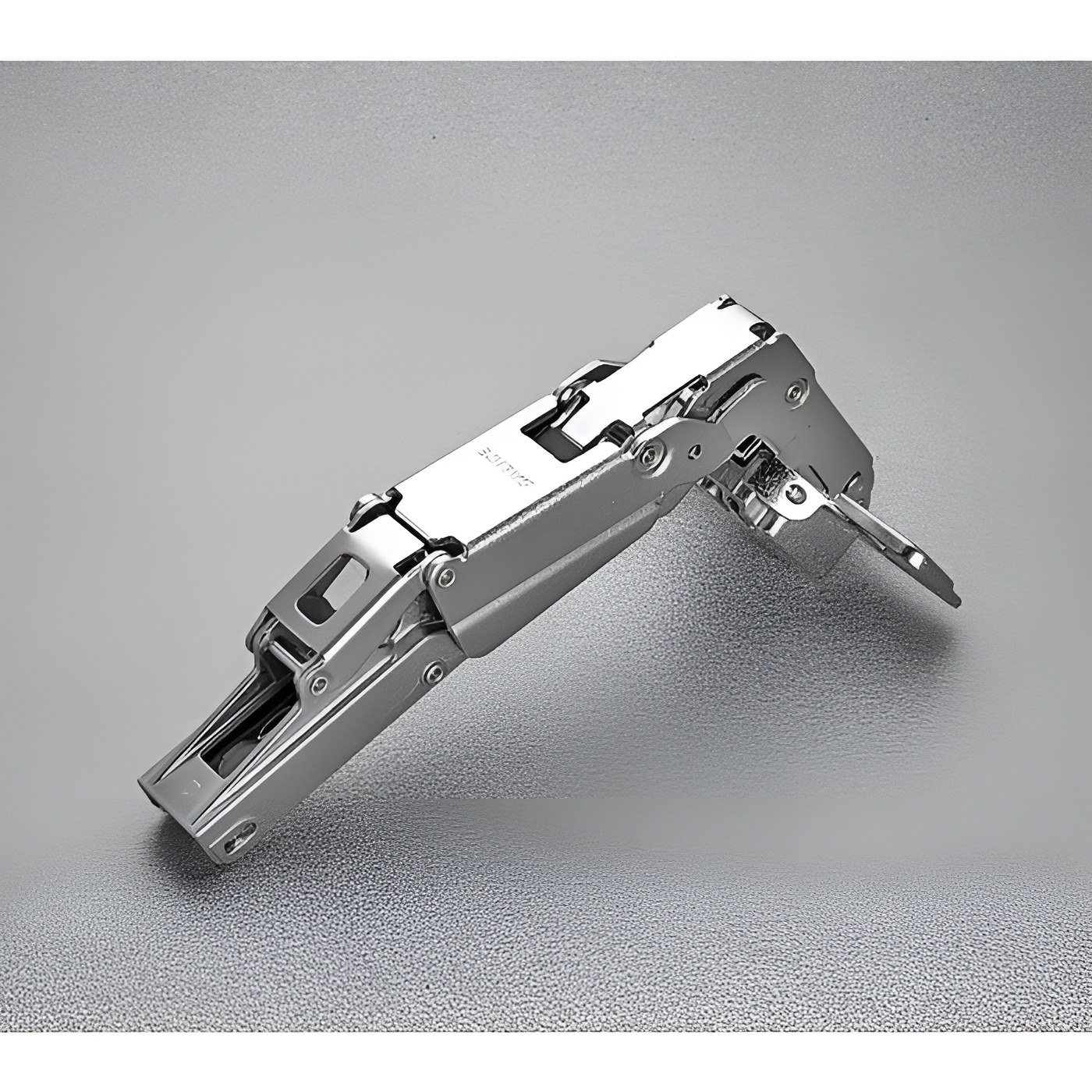

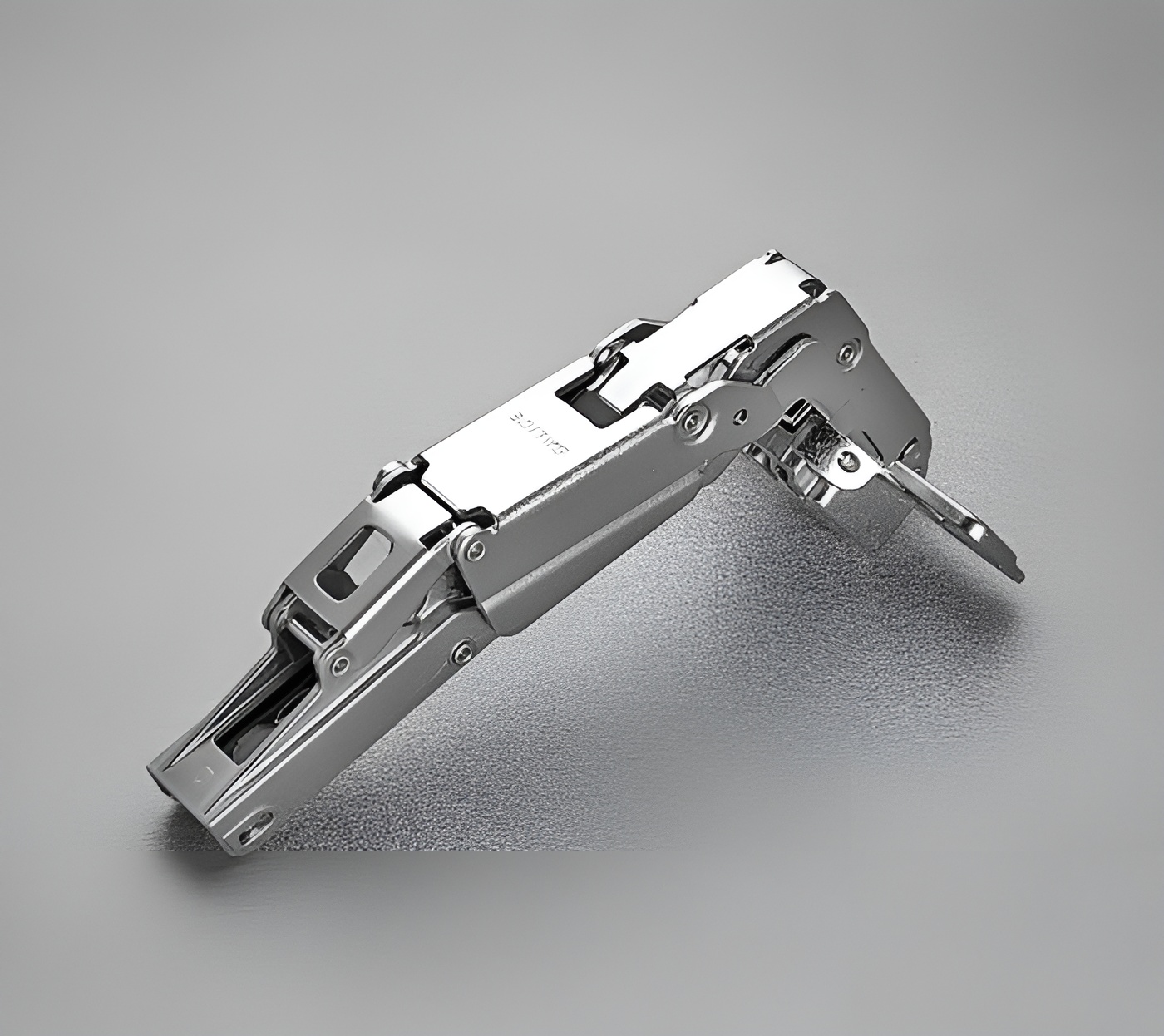

Richelieu H165C2PFD99 Serie 200 Concealed Hinges - 165 offer a seamless blend of functionality and elegance, perfect for frameless cabinets. Designed for a ½ inch (12.7 mm) overlay, these hinges provide a generous opening angle of +165°, ensuring easy access to your cabinet interiors. With an 11 mm die-cast cup and a load capacity of 10 lb, they are robust enough to support your standard doors while maintaining a sleek appearance. The hinges feature a spring closing mechanism, enhancing convenience and ensuring doors close smoothly after use. Installation is straightforward, utilizing a screw-on fixing type, and you can customize the drilling distance between 3 to 8 mm to suit your specific needs. Note that base plates are ordered separately, allowing for flexibility in your projects. Packaged in cases of 100, these hinges are ideal for both large-scale renovations and smaller projects. Finished in a modern nickel tone, they complement a wide range of cabinet styles. With a production time listed as stock, these hinges are readily available for your next build. Richelieu’s commitment to quality and performance makes the H165C2PFD99 an excellent choice for building professionals and discerning homeowners alike.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2PFD99
Product number: H165C2PFD99
Product №: H165C2PFD99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
