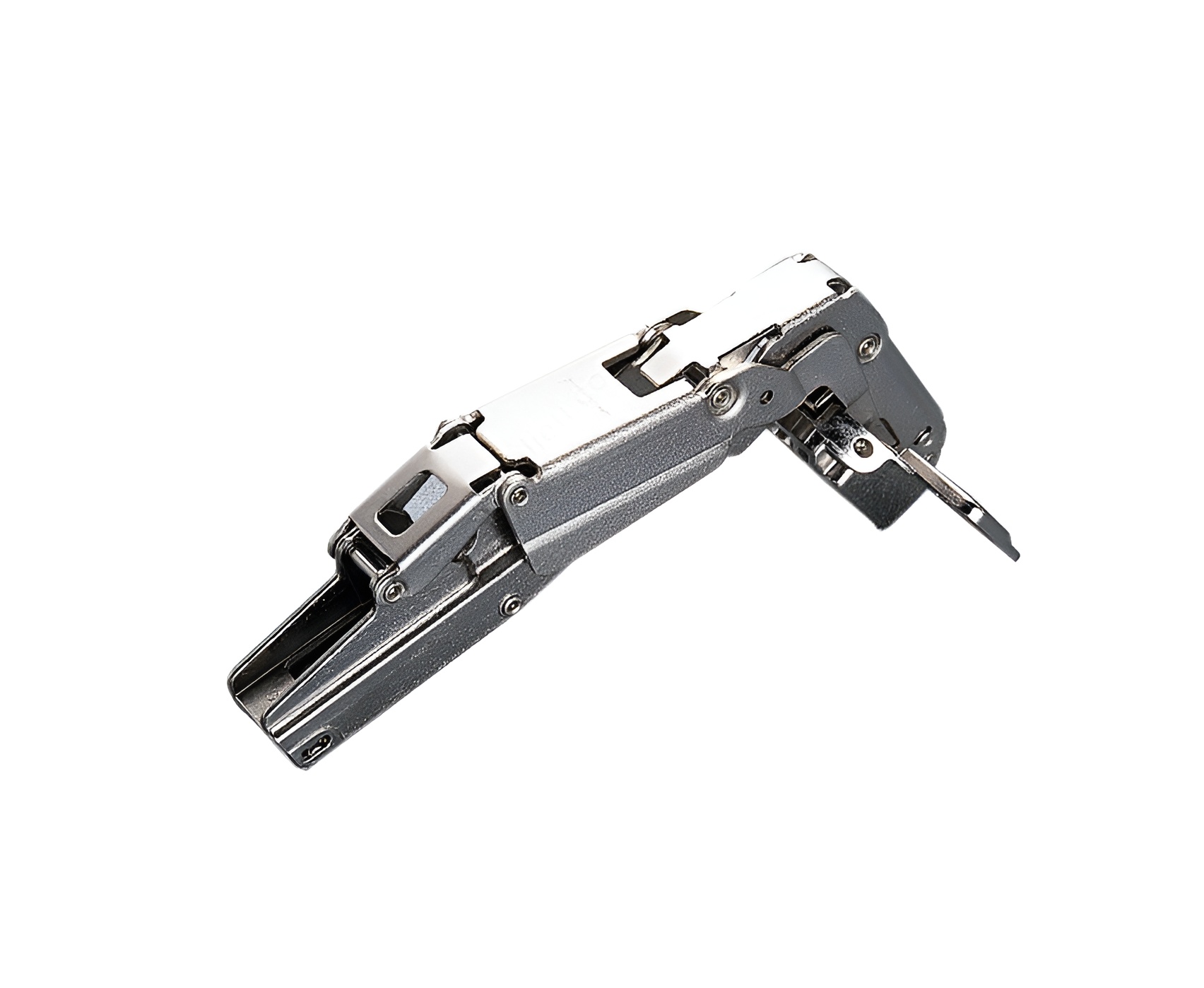

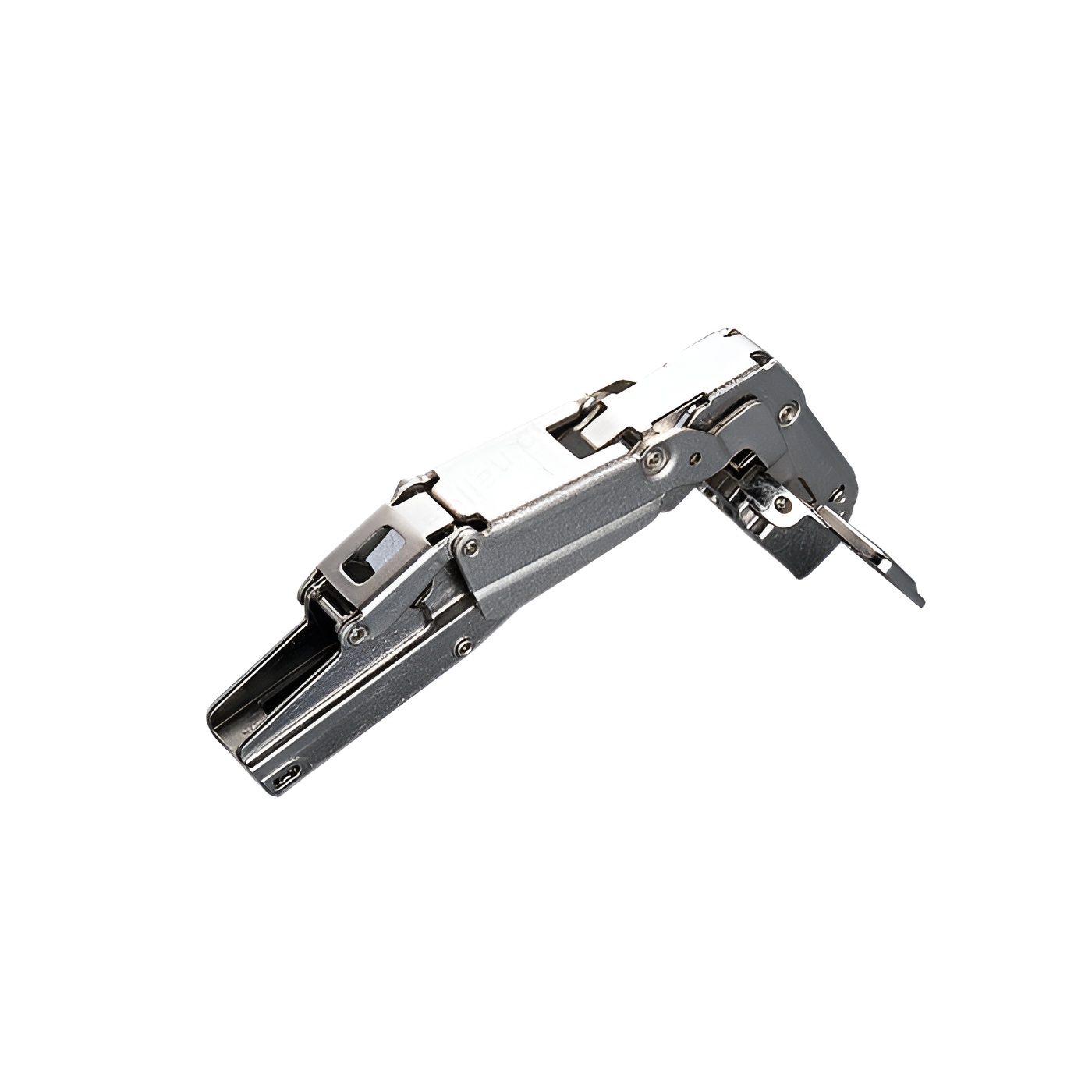

Richelieu H165C2PFG99 Serie 200 Concealed Hinges - 165 provide a sleek and efficient solution for frameless cabinetry. Designed with a robust 11 mm die-cast cup, these hinges ensure durability and a seamless appearance. The hinges feature a remarkable opening angle of +165°, maximizing accessibility while maintaining a clean, modern look. With a load capacity of 10 lb, they are ideal for standard doors, combining strength and functionality. The drilling distance is adjustable between 3 to 8 mm, allowing for versatile installation options tailored to your specific project needs. Utilizing the same formulas as the 94°/110°/120° hinges for base plates, these hinges offer compatibility with various mounting configurations. Please note that base plates must be ordered separately to complete your hinge assembly. Packaged conveniently with 100 hinges per case, the H165C2PFG99 is designed for efficiency in both storage and installation. Finished in a contemporary nickel, these hinges not only perform well but also contribute to the overall aesthetic of your cabinets. For professionals seeking a reliable and stylish hinge solution, the Richelieu H165C2PFG99 Serie 200 is an excellent choice for frameless cabinetry projects.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2PFG99
Product number: H165C2PFG99
Product №: H165C2PFG99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
