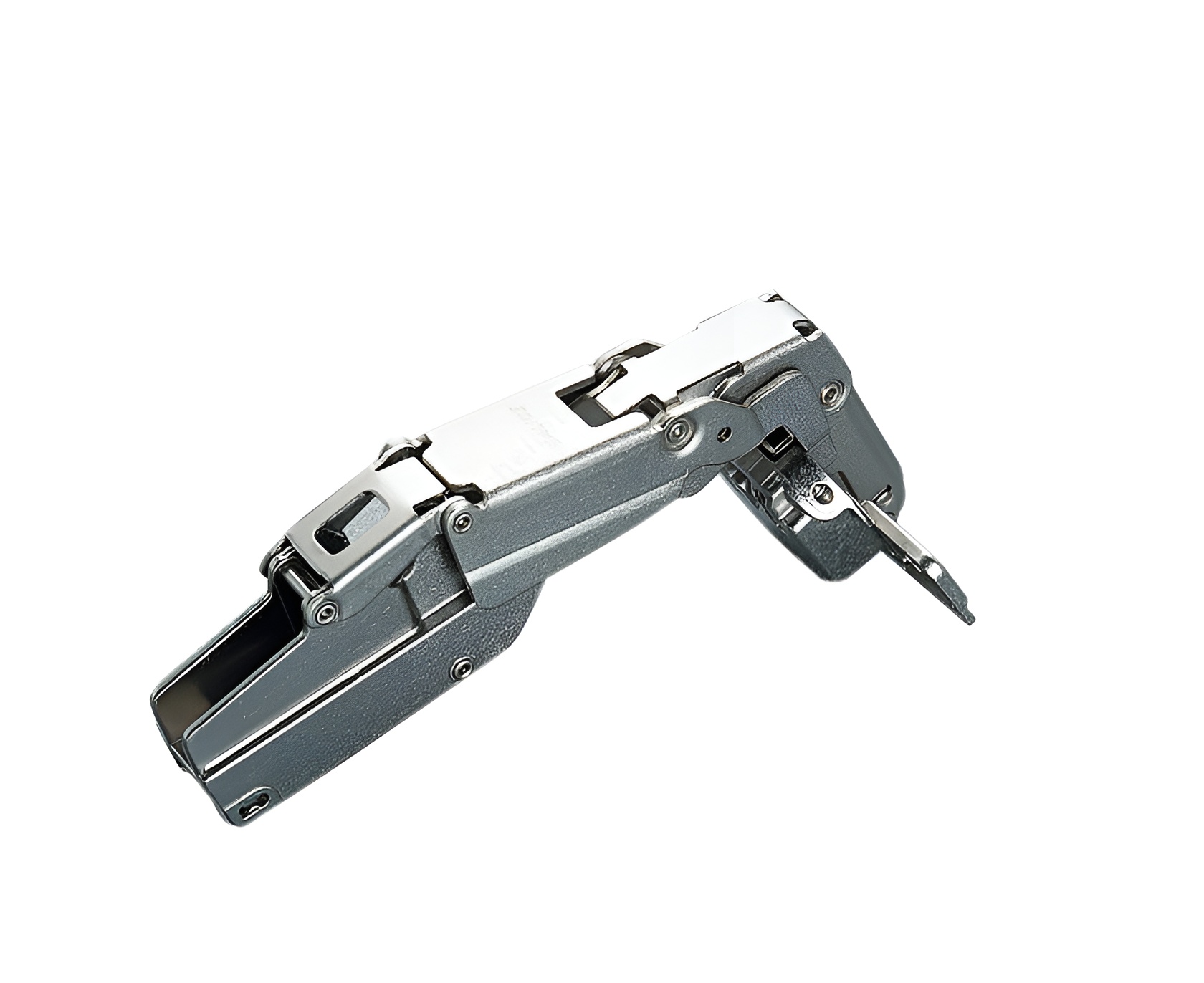

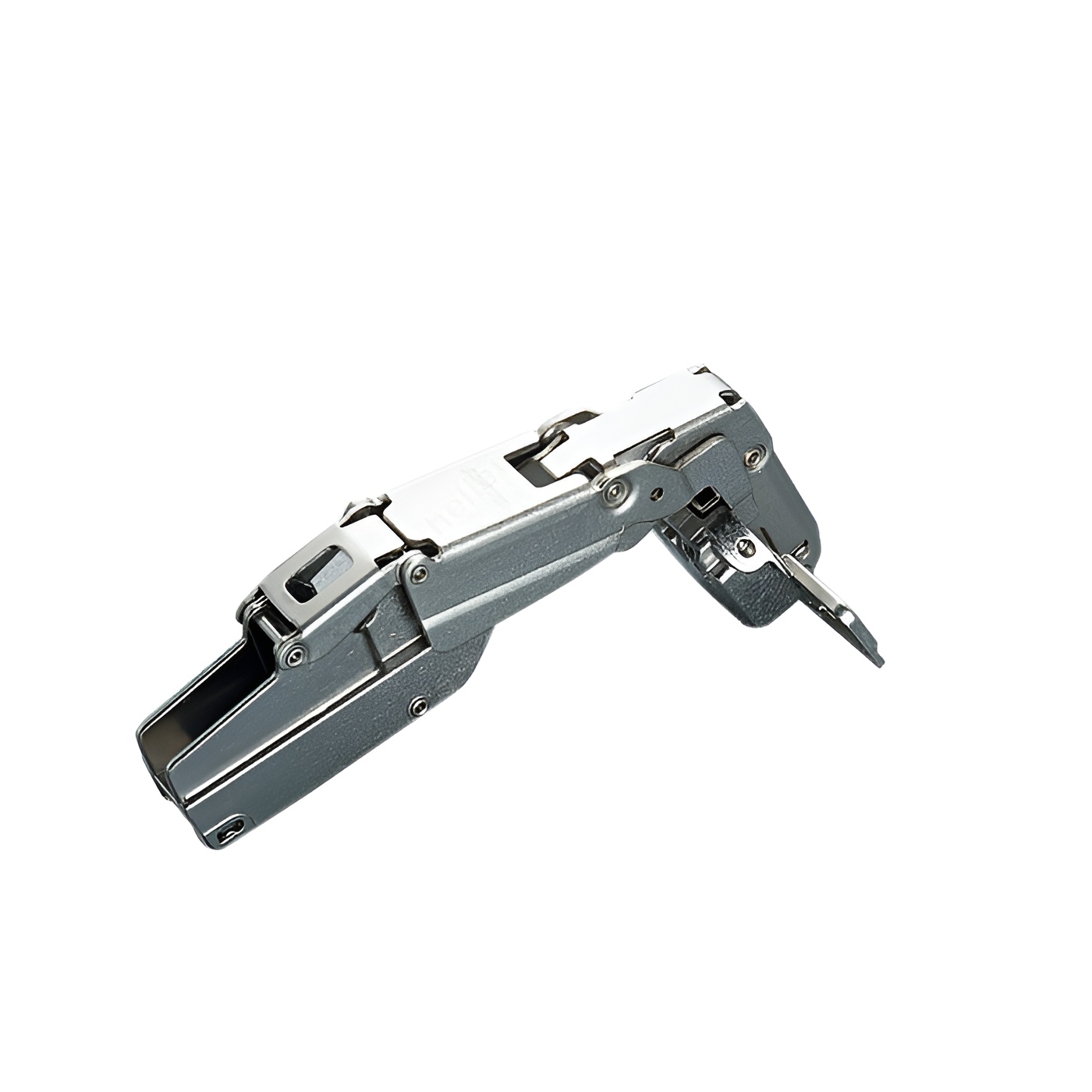

Richelieu H165C2PFP99 Serie 200 Concealed Hinges - 165 are expertly designed for frameless cabinet applications, providing a seamless and elegant solution for inset doors. Featuring an 11 mm die-cast cup, these hinges ensure durability and a clean aesthetic that complements modern cabinetry. With a hinge opening angle of +165°, they allow for maximum accessibility while maintaining a compact and unobtrusive profile. The H165C2PFP99 hinges require a drilling distance of 3 to 8 mm, making installation straightforward for various cabinet configurations. For optimal performance, it is important to order base plates separately. These hinges accommodate a load capacity of up to 10 lbs and utilize a spring closing mechanism, ensuring that doors close securely and smoothly. Packaged in cases of 100, these nickel-finished hinges offer a professional touch and are suitable for standard door applications. Their overlay is designed to be 0 inches, facilitating a flush fit that enhances the overall appearance of your cabinetry. The screw-on fixing type guarantees reliable installation, making these hinges a dependable choice for building professionals and discerning homeowners alike. With Richelieu's commitment to quality, the H165C2PFP99 hinges are an excellent addition to any cabinetry project.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2PFP99
Product number: H165C2PFP99
Product №: H165C2PFP99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
