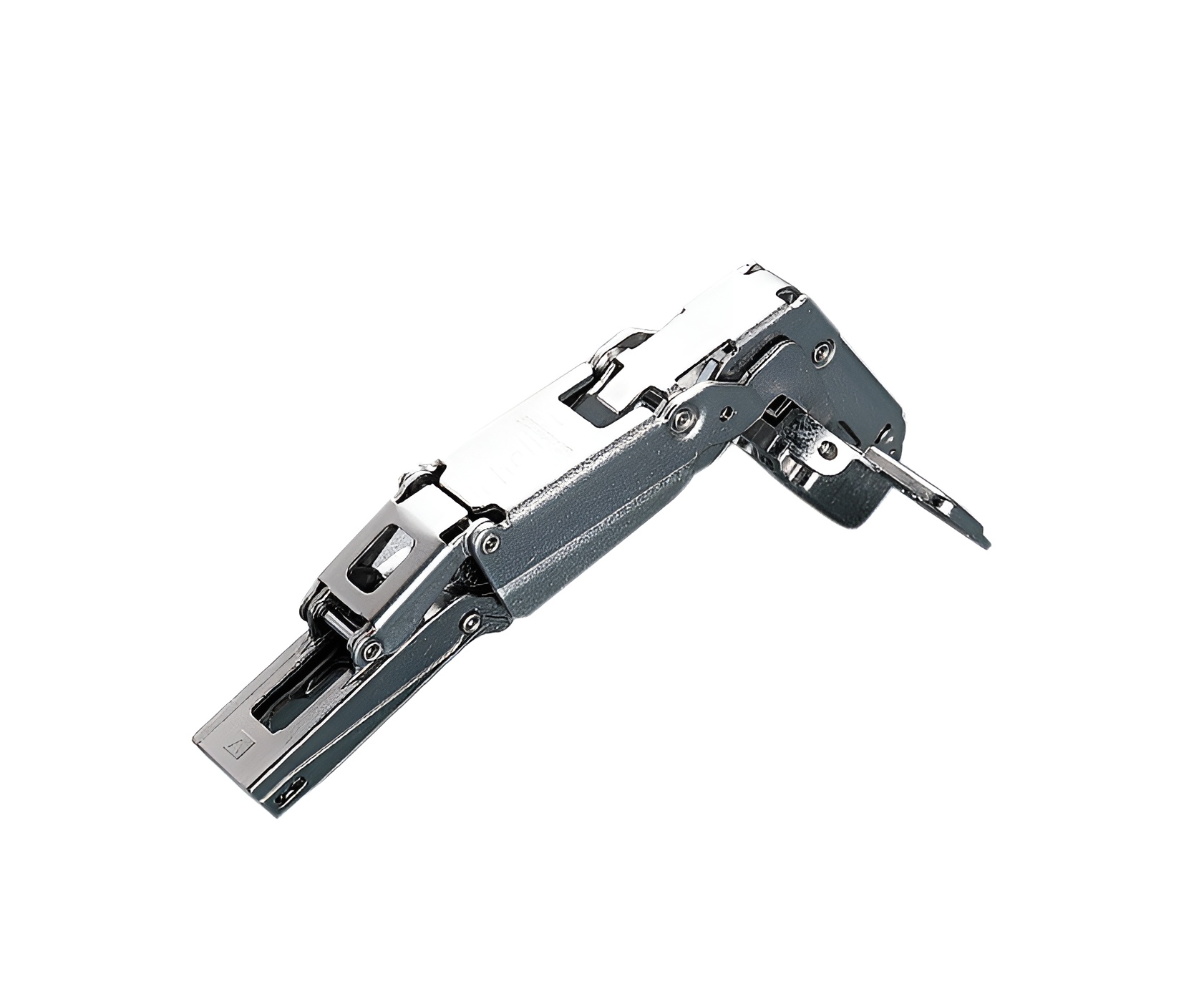

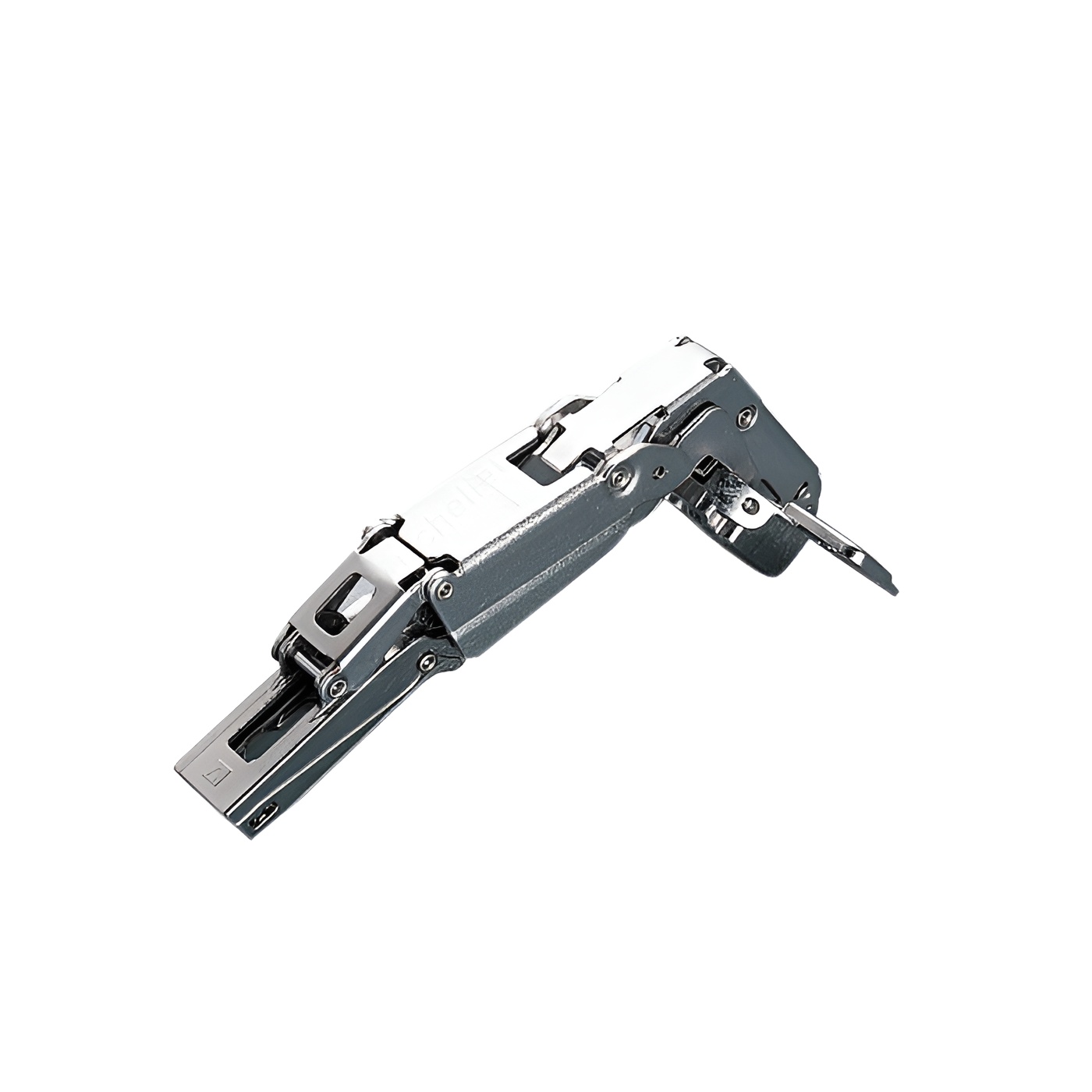

Richelieu H165C2REA99 Serie 200 Concealed Hinges - 165 are designed for frameless cabinets, providing a sleek and modern solution for your woodworking projects. Featuring an 11 mm die-cast cup, these hinges offer a maximum opening angle of +165°, allowing easy access to cabinet interiors while maintaining a clean aesthetic. The hinges are ideal for full overlay door positions, ensuring a seamless look that enhances the overall design of your cabinetry. With a drilling distance range of 3 to 8 mm, the H165C2REA99 accommodates various installation requirements, while the dowel fixing type ensures a secure attachment. Each hinge supports a load capacity of up to 10 lb, making them suitable for standard doors without compromising durability. The free swing mechanism allows for smooth operation, enhancing user experience. Packaged conveniently with 100 pieces per case, these hinges are a practical choice for both professionals and knowledgeable homeowners. To complete your installation, remember to order base plates separately, following the same formulas used for 94°/110°/120° hinges. Finished in nickel, these hinges not only perform well but also add a touch of sophistication to any cabinetry project.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2REA99
Product number: H165C2REA99
Product №: H165C2REA99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
