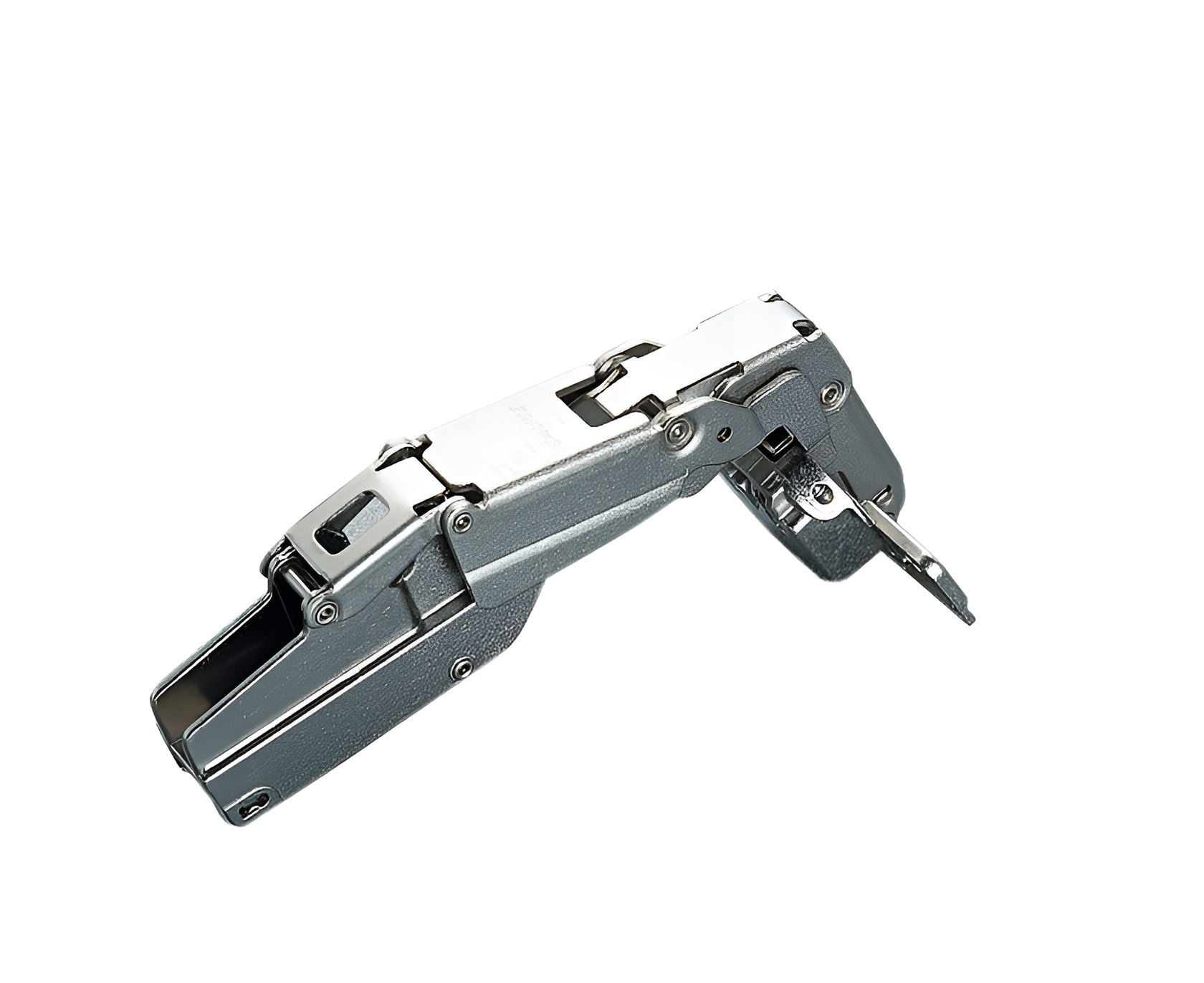

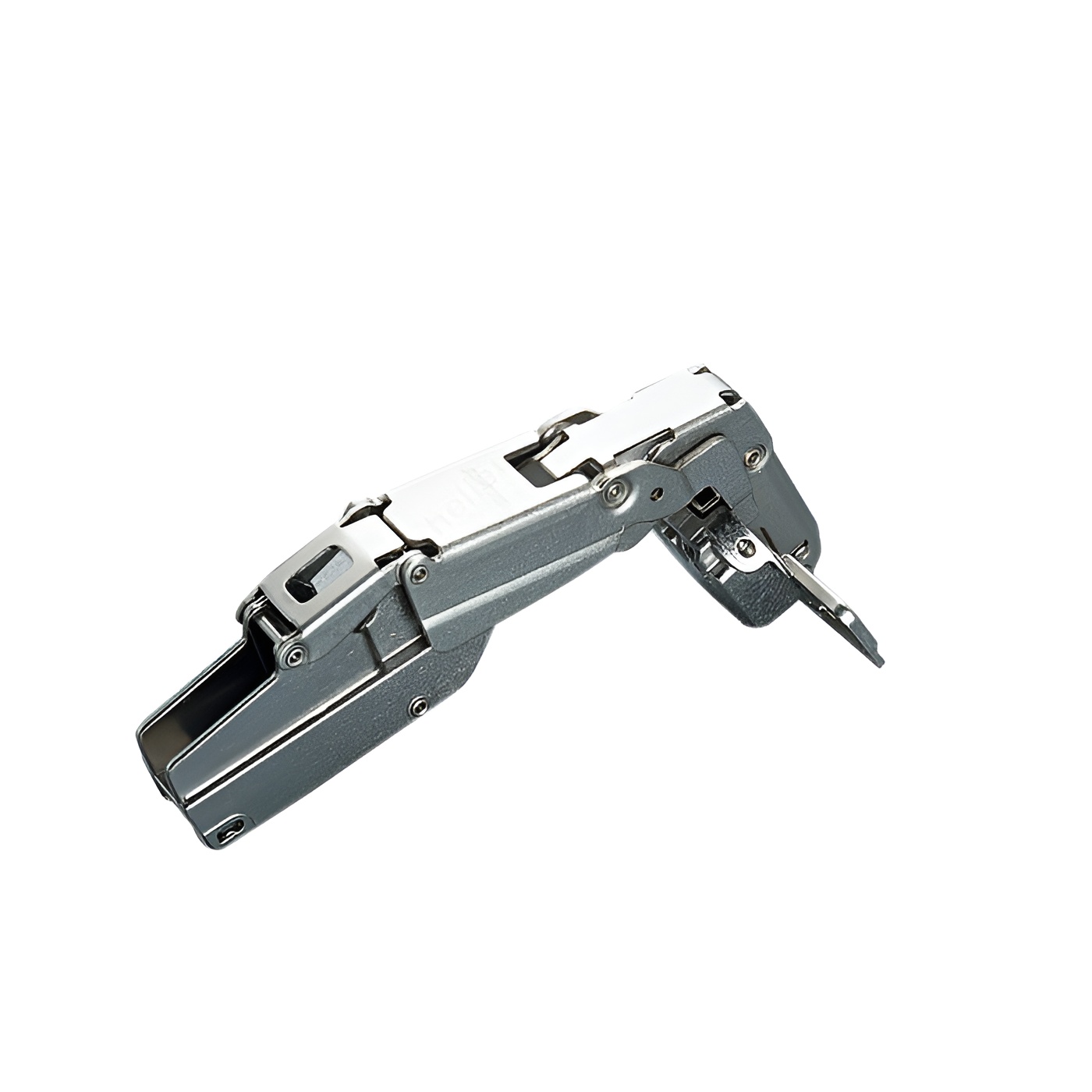

Richelieu H165C2REP99 Serie 200 Concealed Hinges - 165 deliver an exceptional combination of functionality and style for frameless cabinetry. Designed specifically for inset doors, these hinges provide a seamless look while allowing for a generous opening angle of +165°. Crafted with an 11 mm die-cast cup, the hinges ensure robust construction and durability. These hinges are engineered to accommodate a drilling distance ranging from 3 mm to 8 mm, making them versatile for various installation requirements. With a load capacity of 10 lbs, they effectively support standard doors with ease. The free swing mechanism ensures that doors operate smoothly without obstruction, enhancing user experience. Available in a sleek nickel finish, the Richelieu H165C2REP99 hinges add a touch of modern elegance to any kitchen or cabinetry project. Each hinge is sold individually, with a case containing 100 units to meet your project needs efficiently. Note that base plates are ordered separately, allowing for customization as per your design specifications. Ideal for building professionals and discerning homeowners alike, these hinges are a reliable choice for enhancing both the functionality and aesthetic appeal of your cabinetry.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2REP99
Product number: H165C2REP99
Product №: H165C2REP99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
